Home >> GMC >> 2008 >> Yukon 2WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Volume Control

Automatic Volume Control



Component Connector End Views - Continued

Rear Seat Audio (RSA) Controller X1 (UK6)

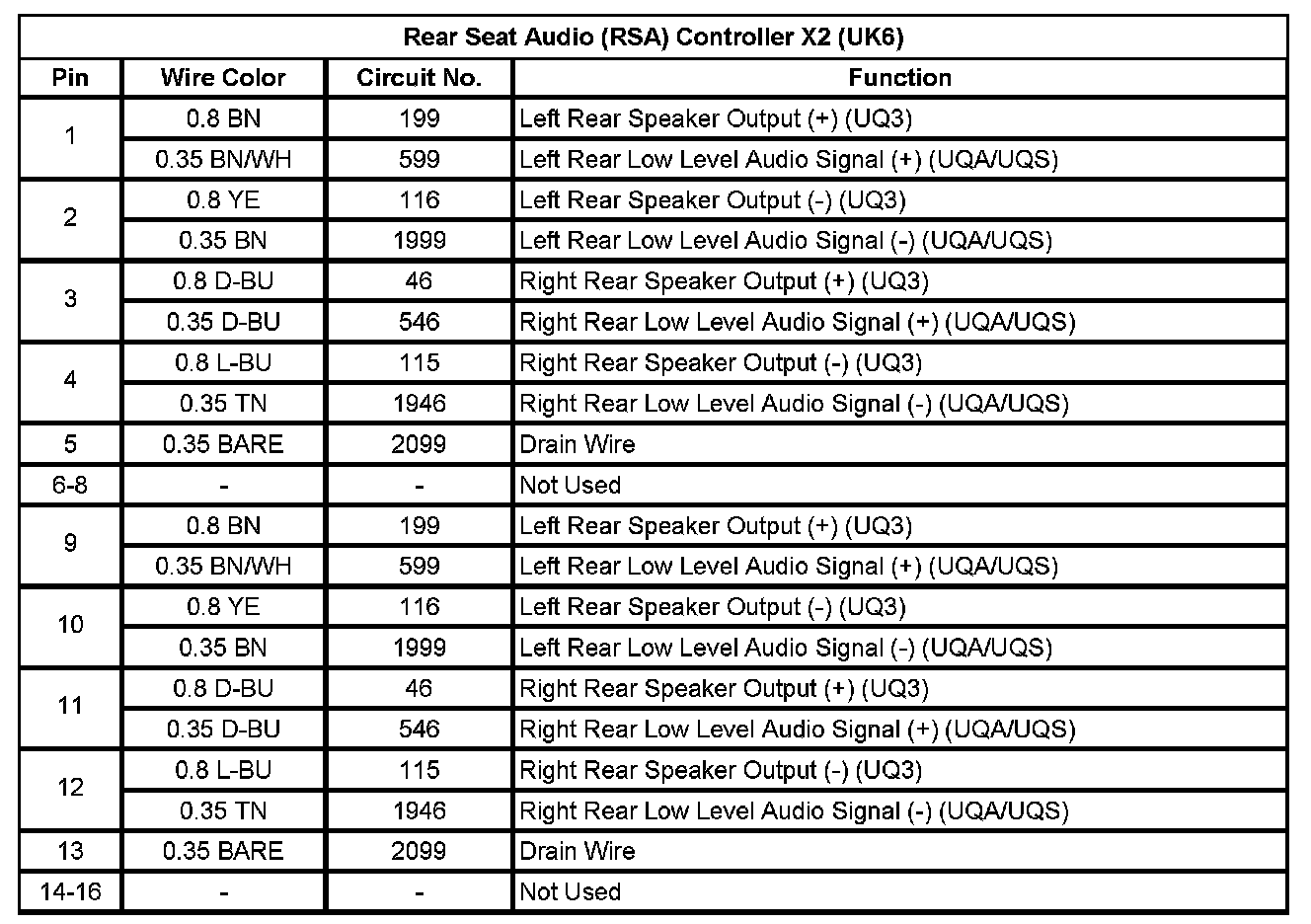

Rear Seat Audio (RSA) Controller X2 (UK6)
