Keyless Entry Receiver: Diagrams

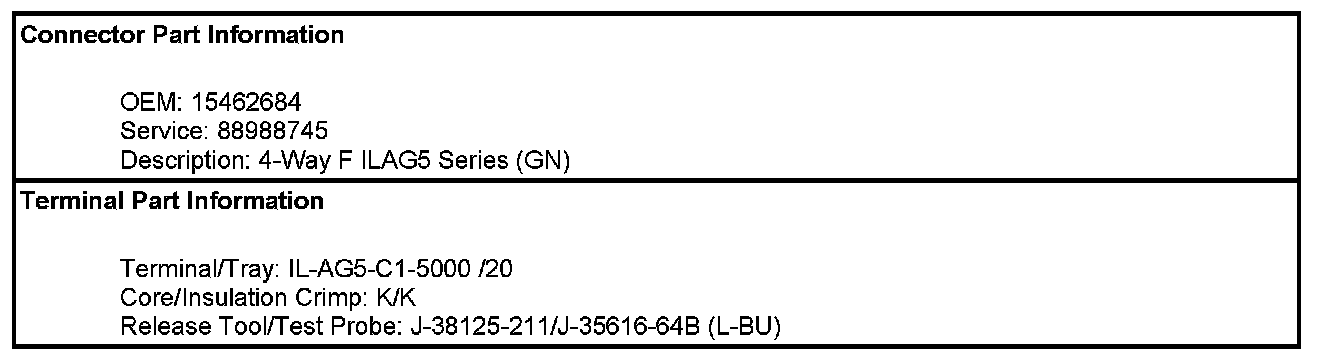

Component Connector End Views - Continued

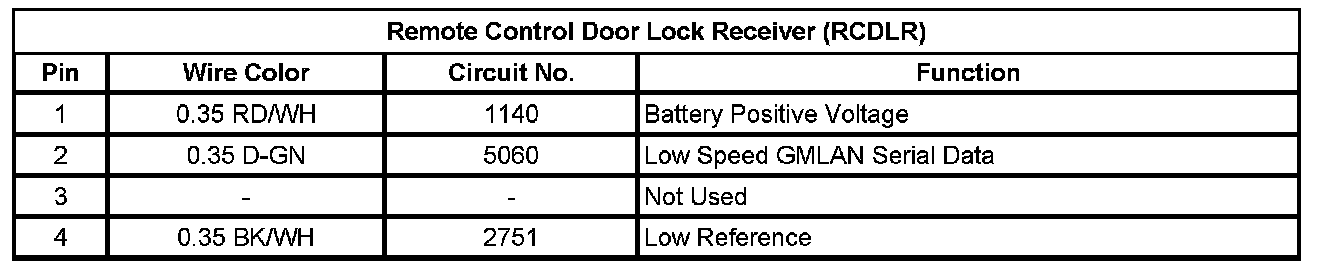

Remote Control Door Lock Receiver (RCDLR) (AP3/AP8)
