GMC
>>
2008
>>
Yukon 2WD V8-4.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Control Module
Suspension Control Module

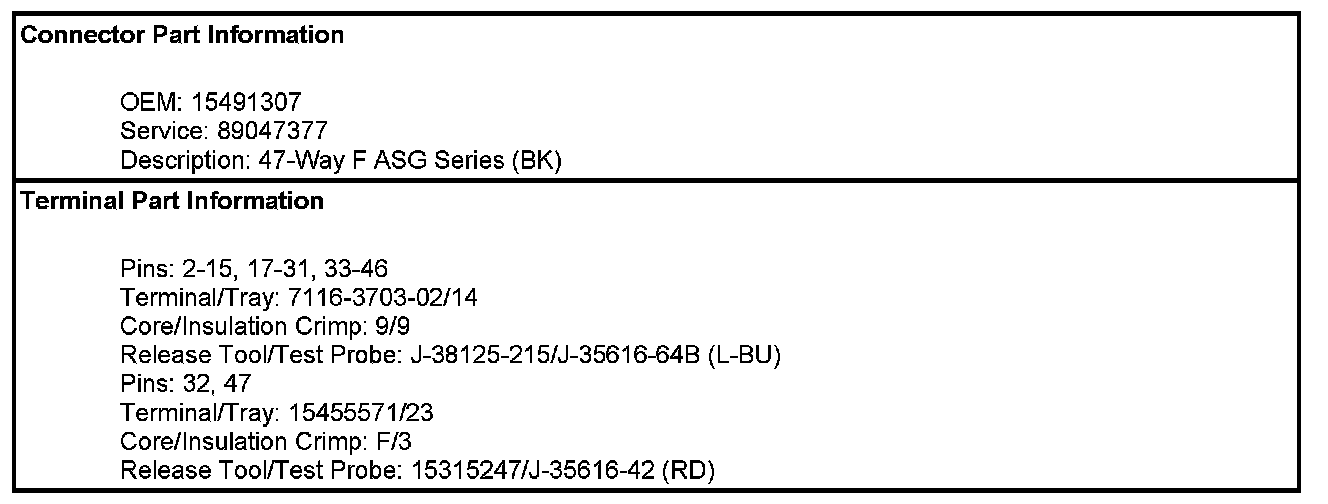

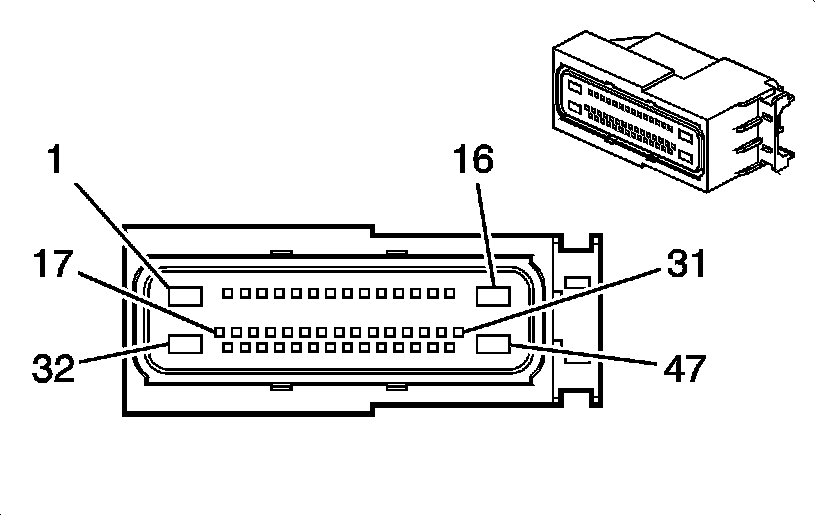

Component Connector End Views

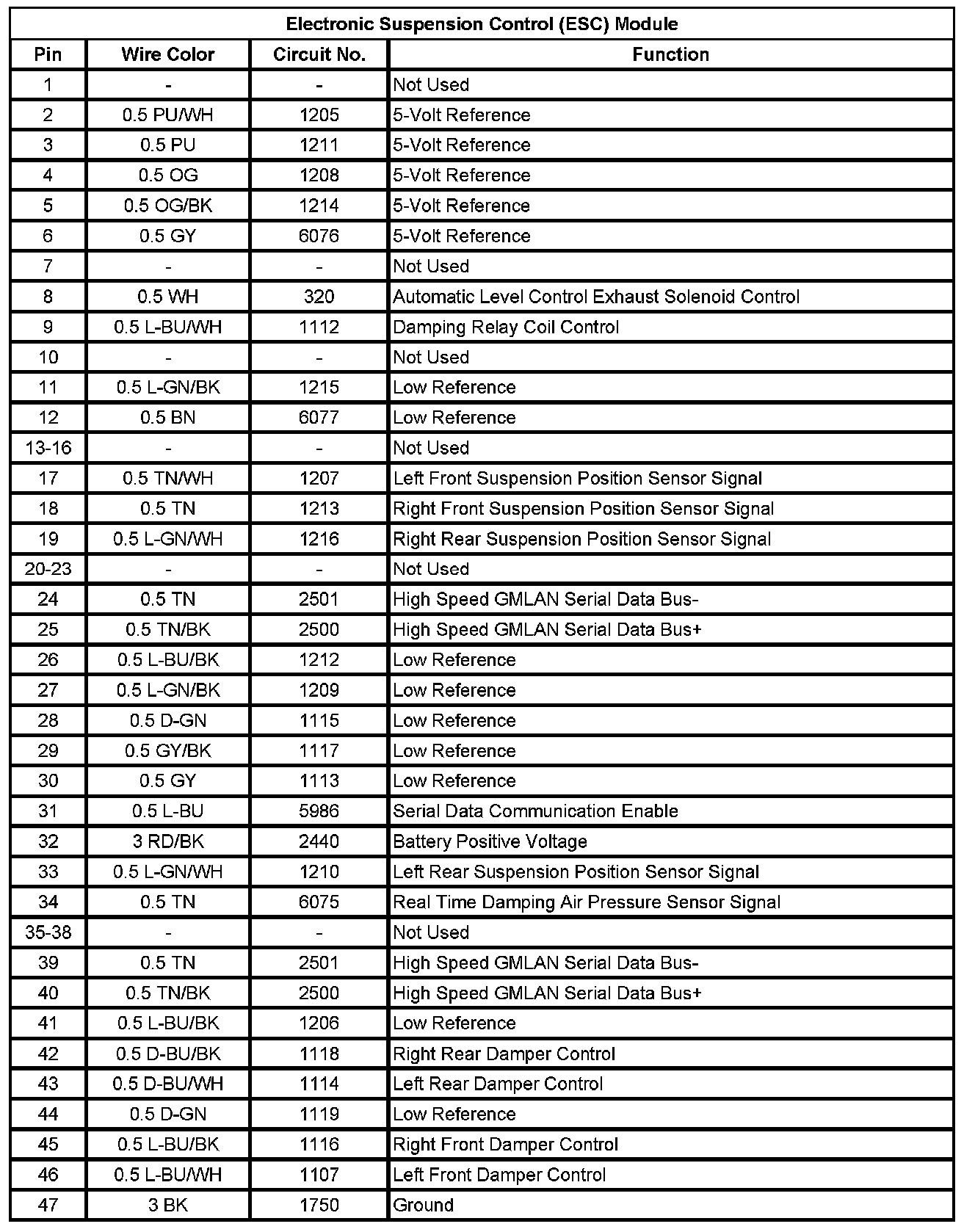

Electronic Suspension Control (ESC) Module
Electronic Suspension Control (ESC) Module:
