Home >> GMC >> 2008 >> Yukon 2WD V8-4.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Shock Sensor, Antitheft

Shock Sensor, Antitheft

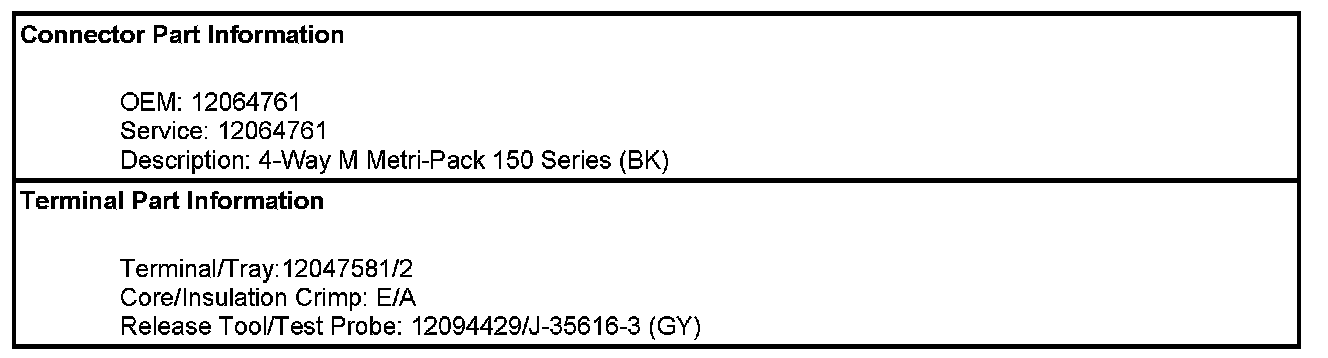

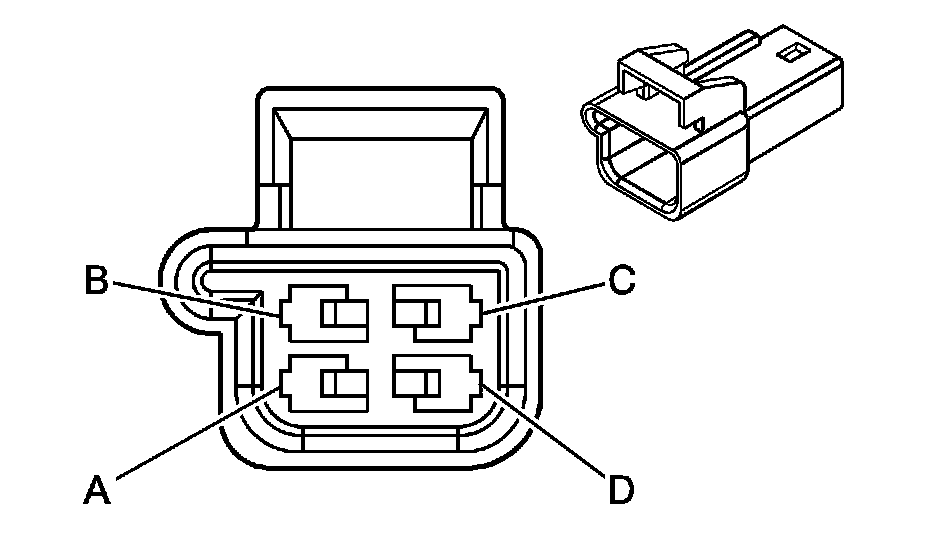

Component Connector End Views - Continued

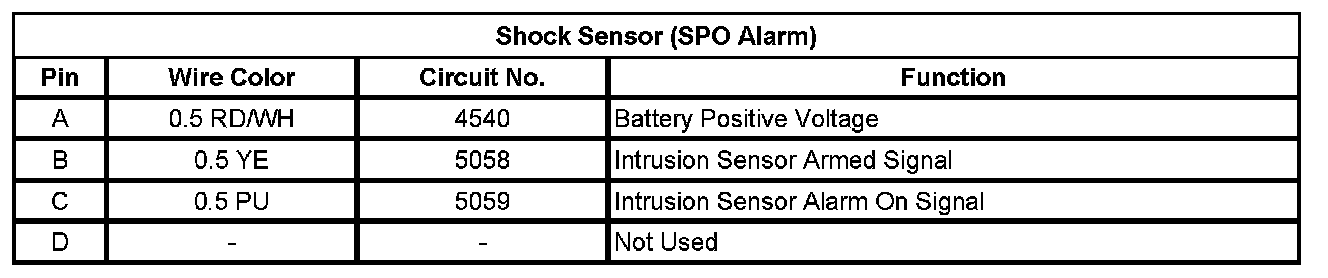

Shock Sensor (SPO Alarm)
