Central Control Module



Component Connector End Views - Continued

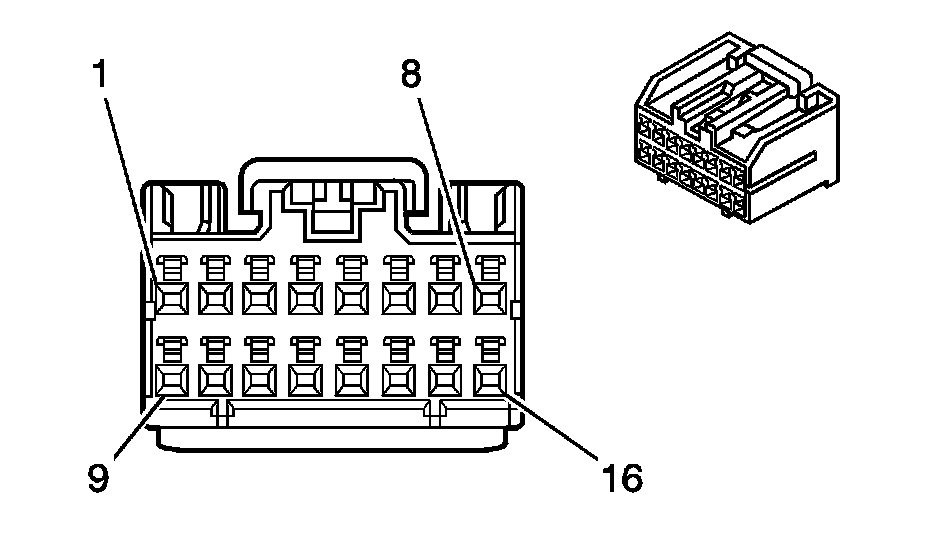

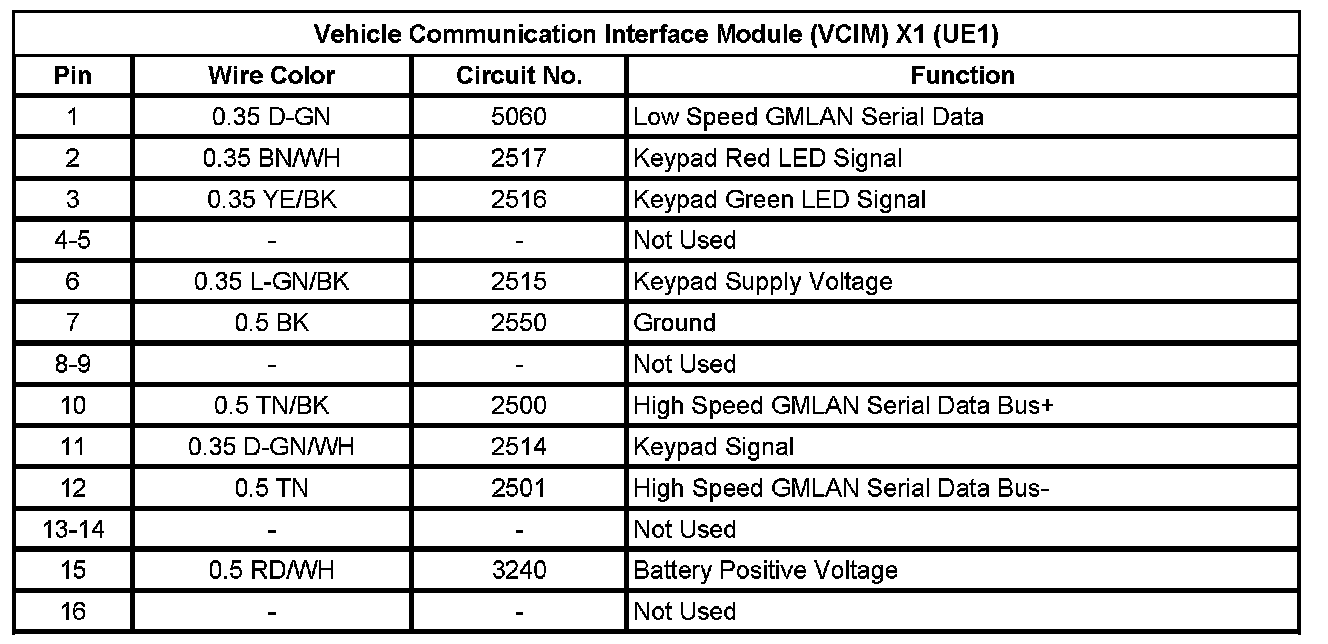

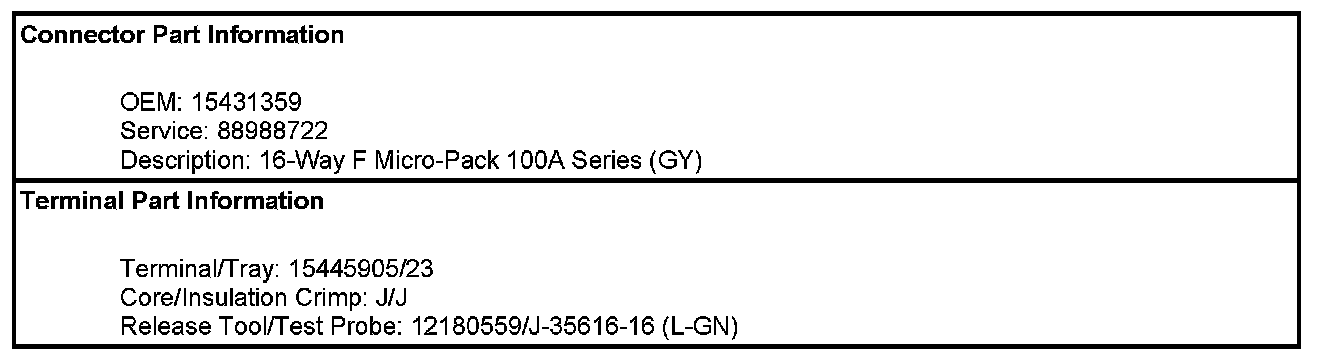

Vehicle Communication Interface Module (VCIM) X1 (UE1)

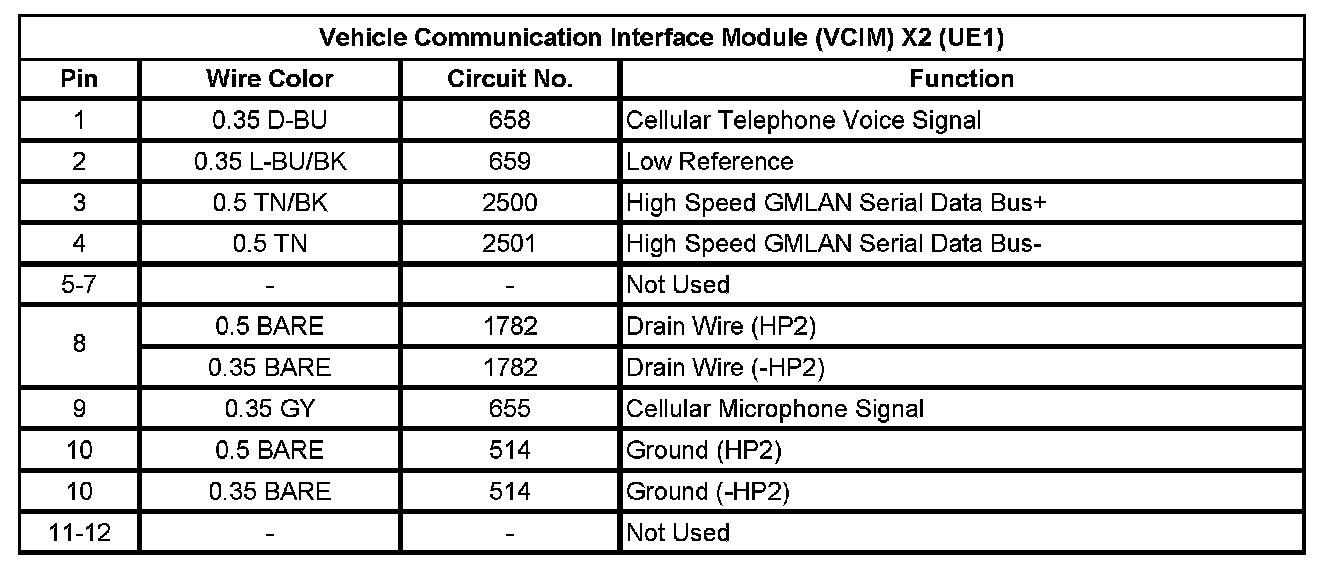

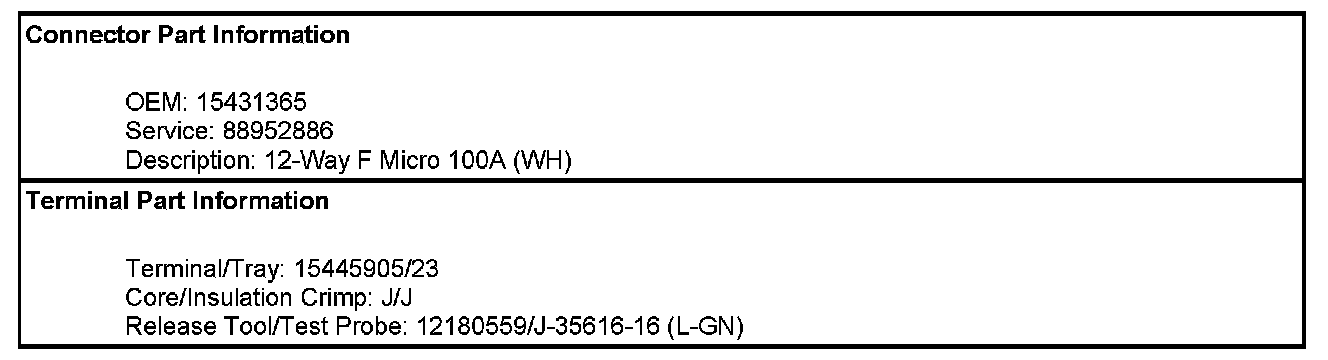

Vehicle Communication Interface Module (VCIM) X2 (UE1)

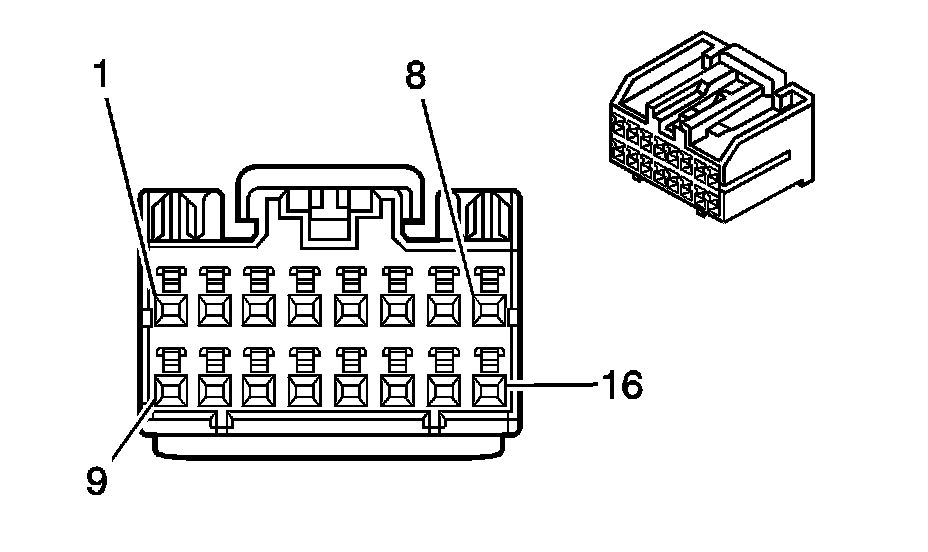

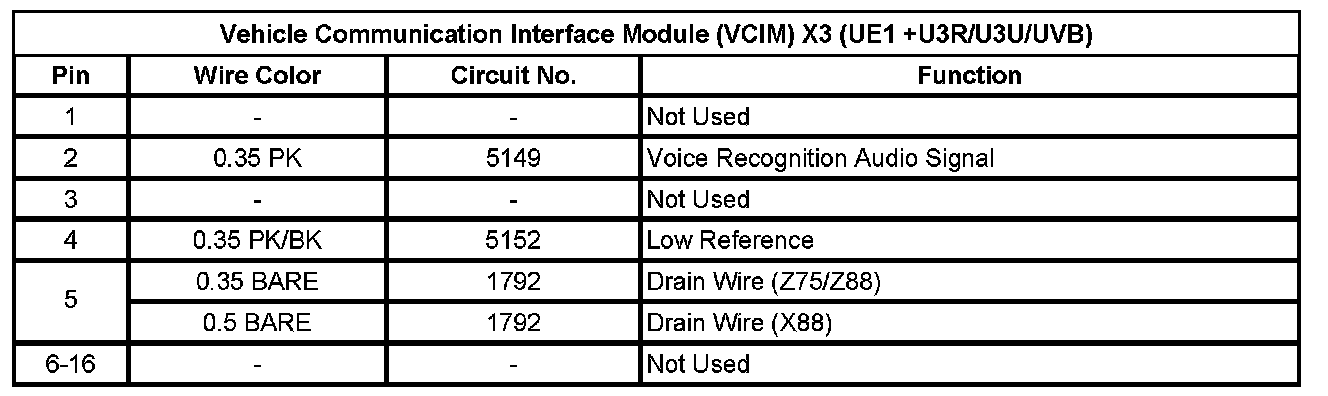

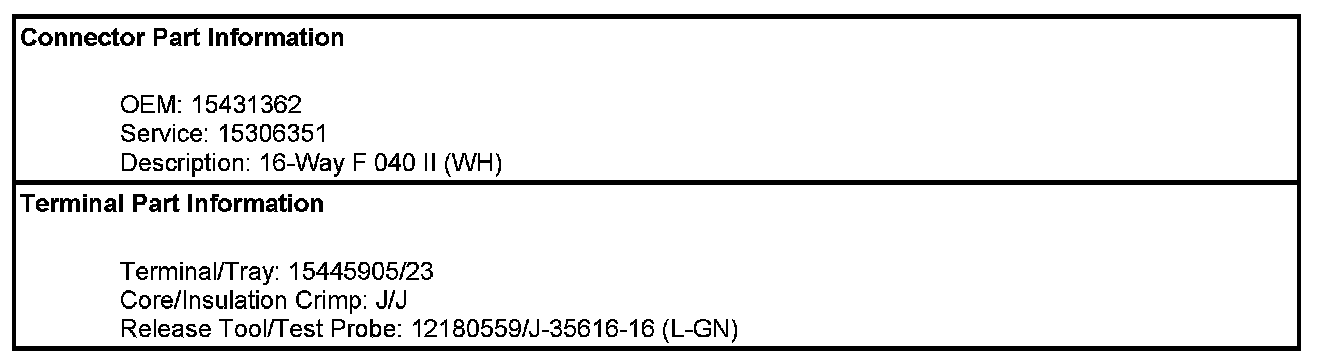

Vehicle Communication Interface Module (VCIM) X3 (UE1 +U3R/U3U/UVB)
