GMC
>>
2008
>>
Acadia FWD V6-3.6L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Knock Sensor
>>
Diagrams
>>
Connector Views
Connector Views
Component Connector End Views

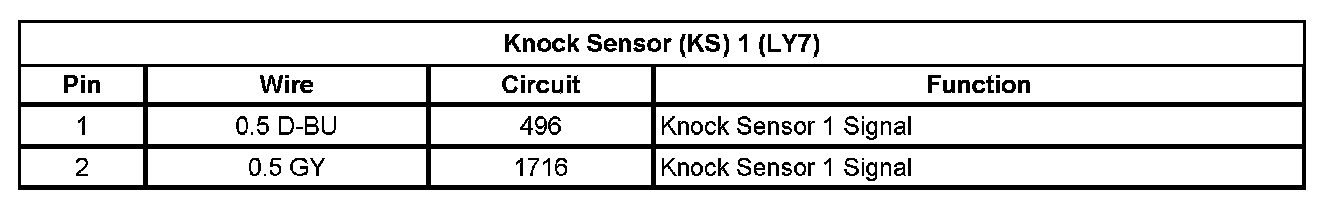

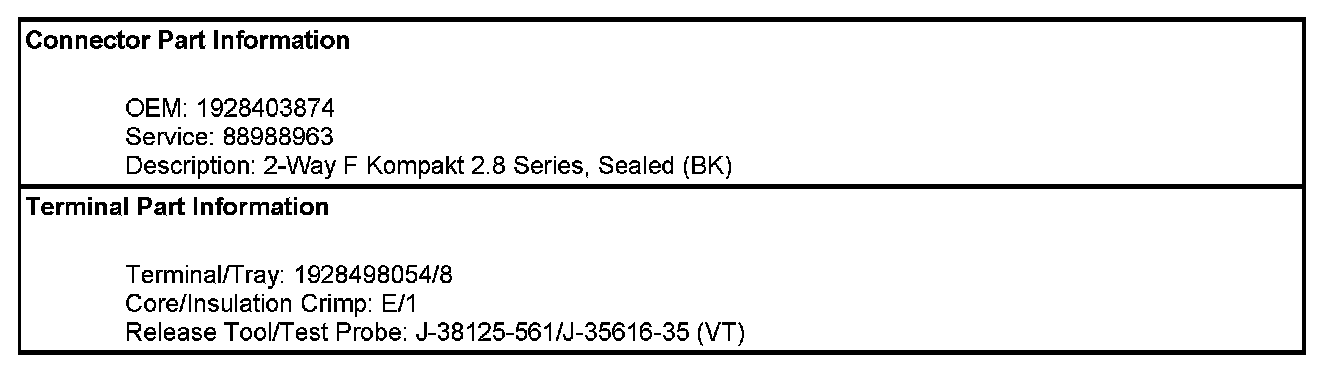

Knock Sensor (KS) 1 (LY7)

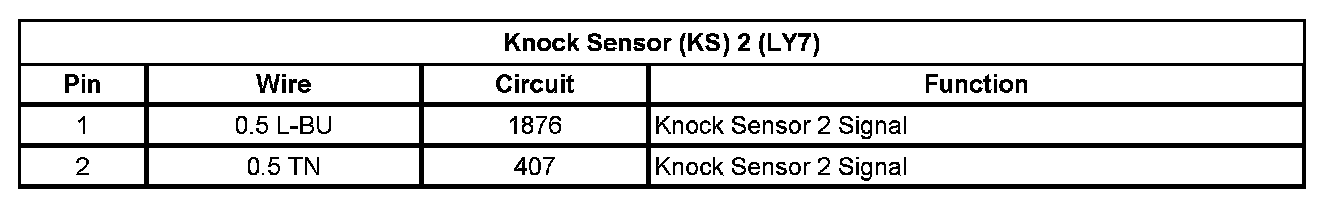

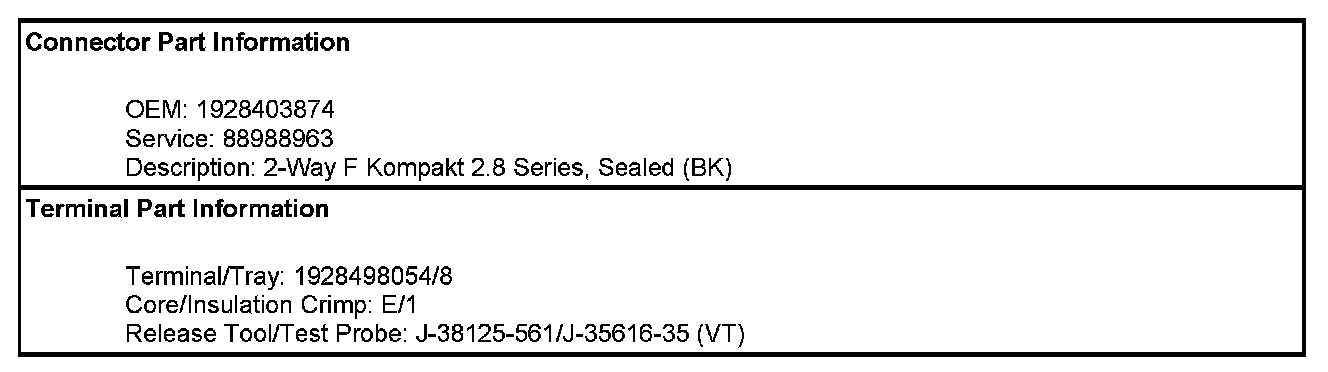

Knock Sensor (KS) 2 (LY7)
