Accelerator Pedal Position Sensor: Diagrams

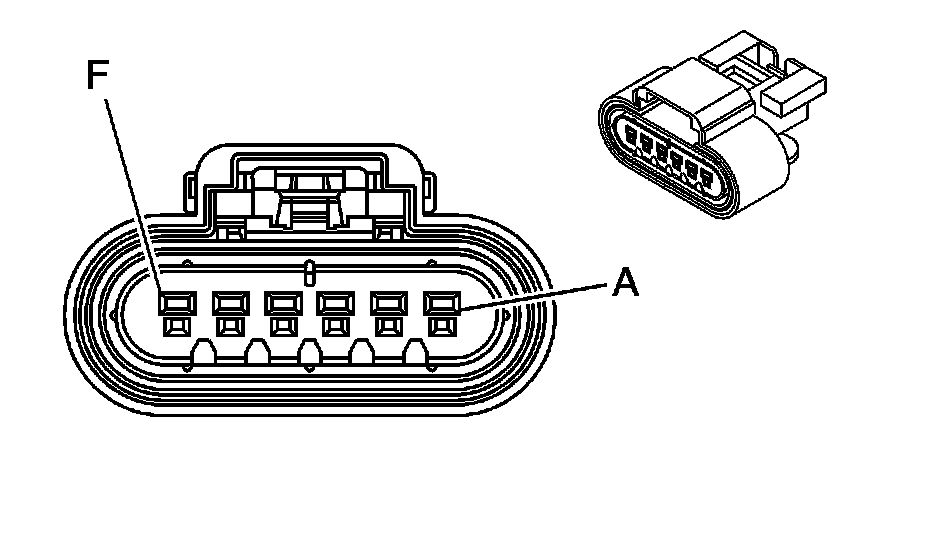

Component Connector End Views

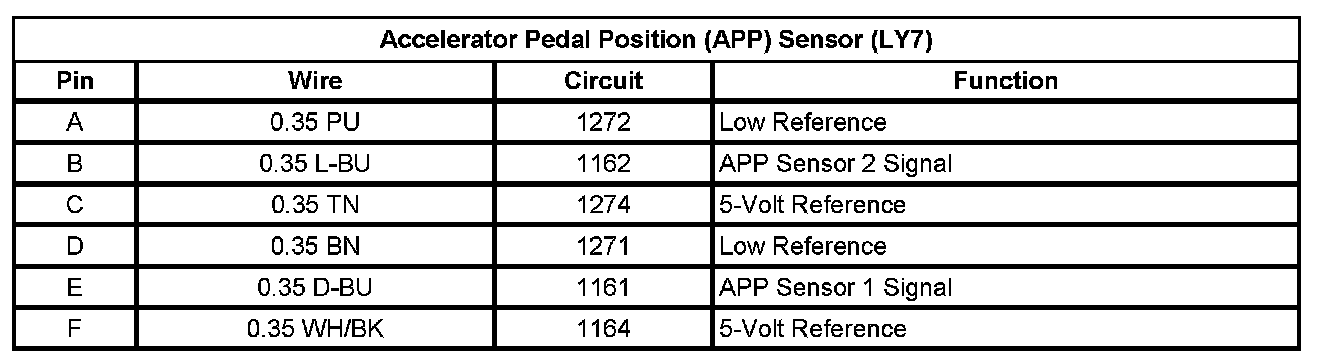

Accelerator Pedal Position (APP) Sensor (LY7)
