Home
>>
GMC
>>
2008
>>
Acadia FWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
Transmission Control Systems

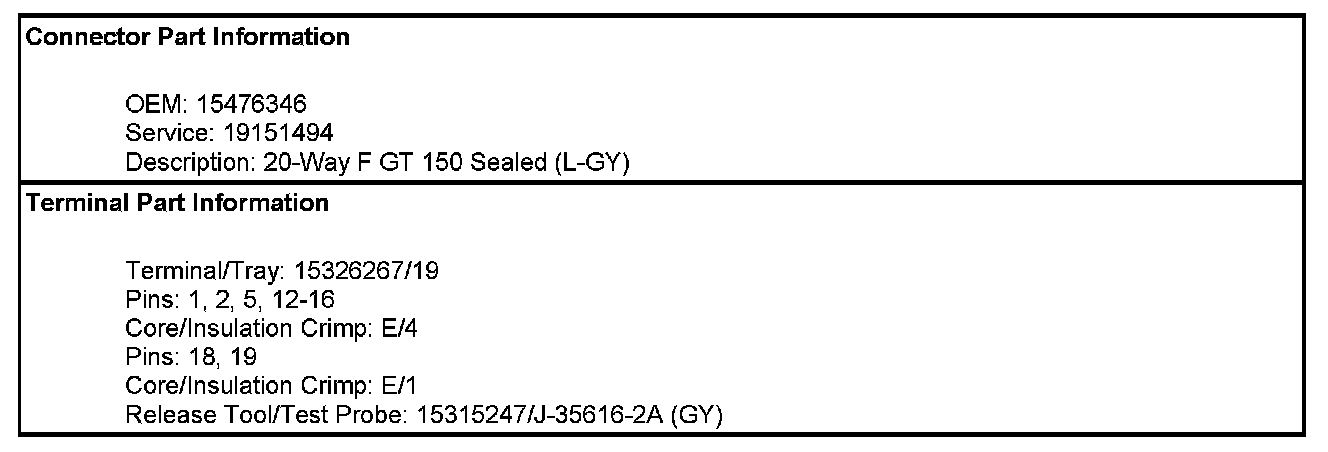

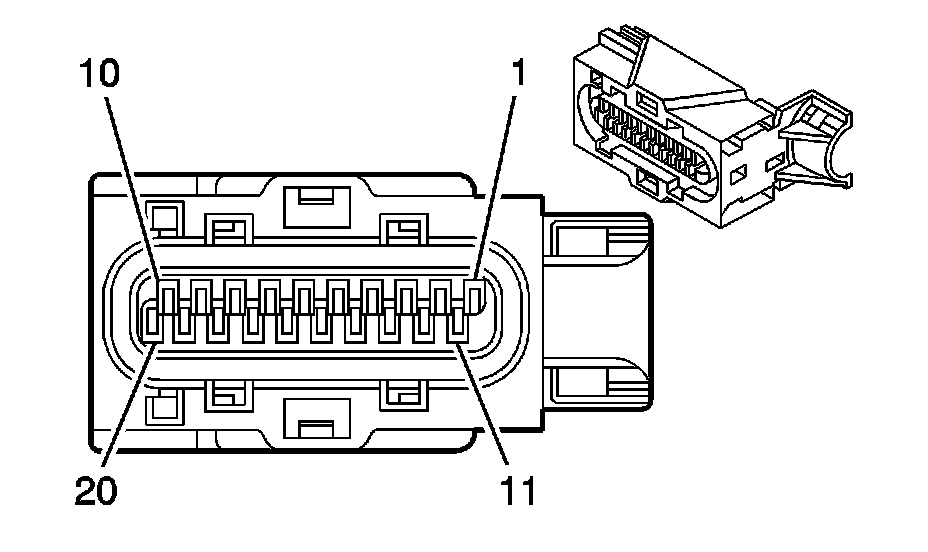

Component Connector End Views

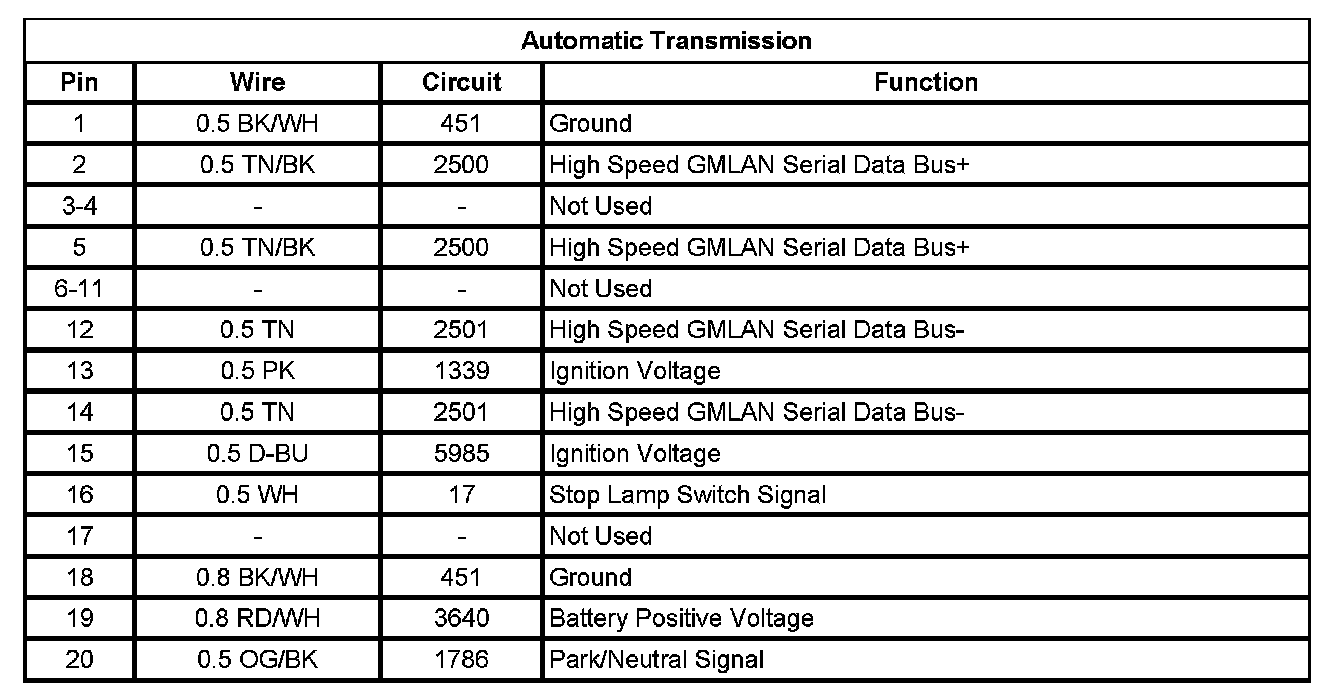

Automatic Transmission
