Power Distribution Module



Component Connector End Views

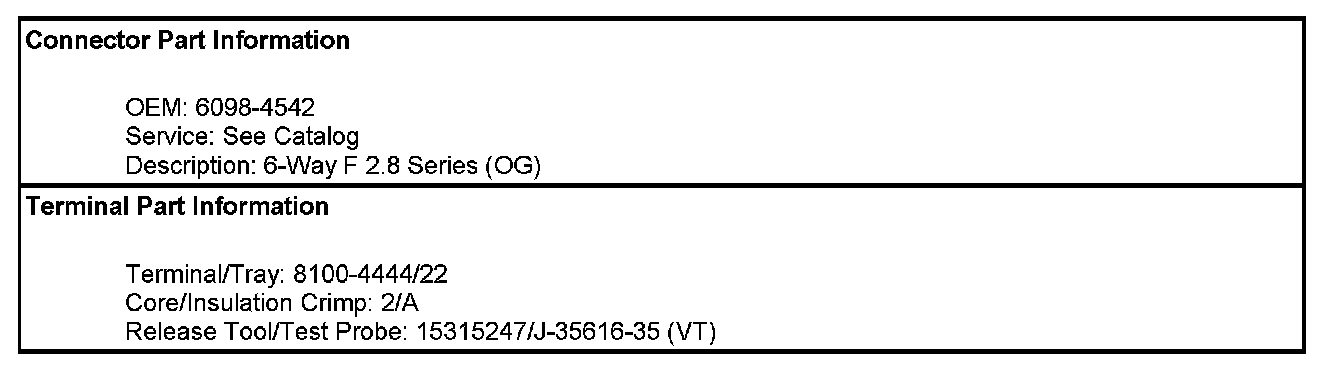

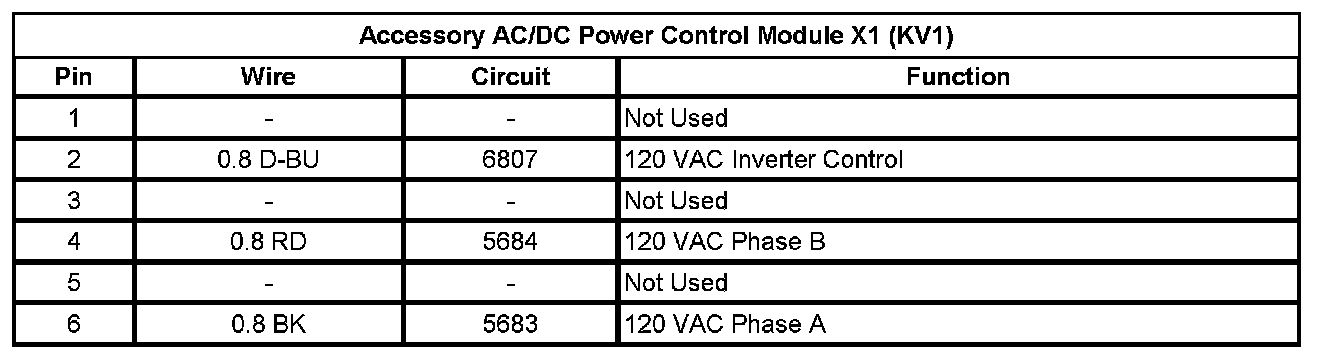

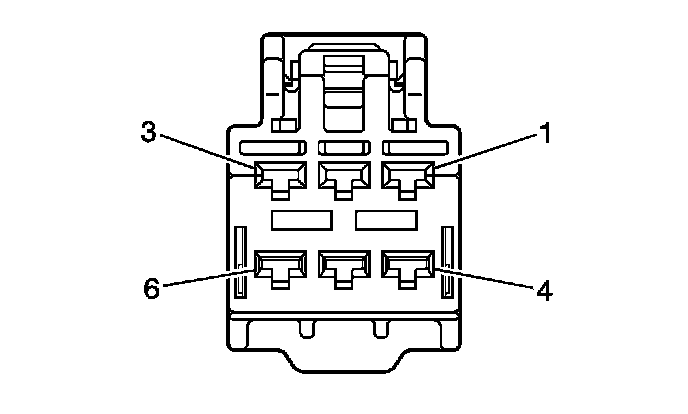

Accessory AC/DC Power Control Module X1 (KV1)

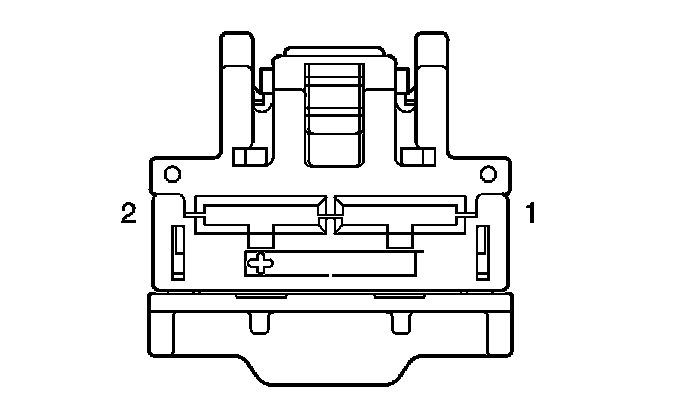

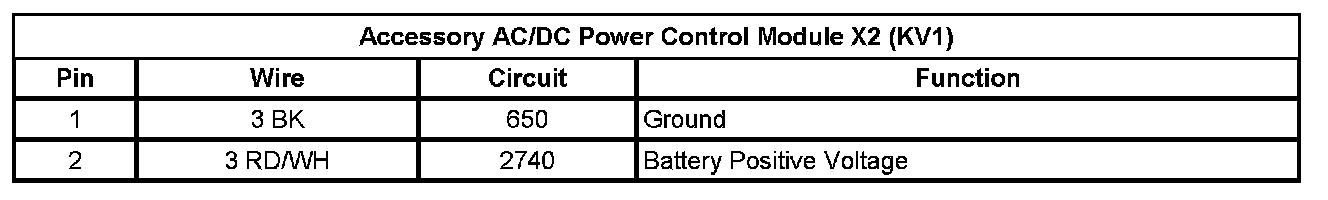

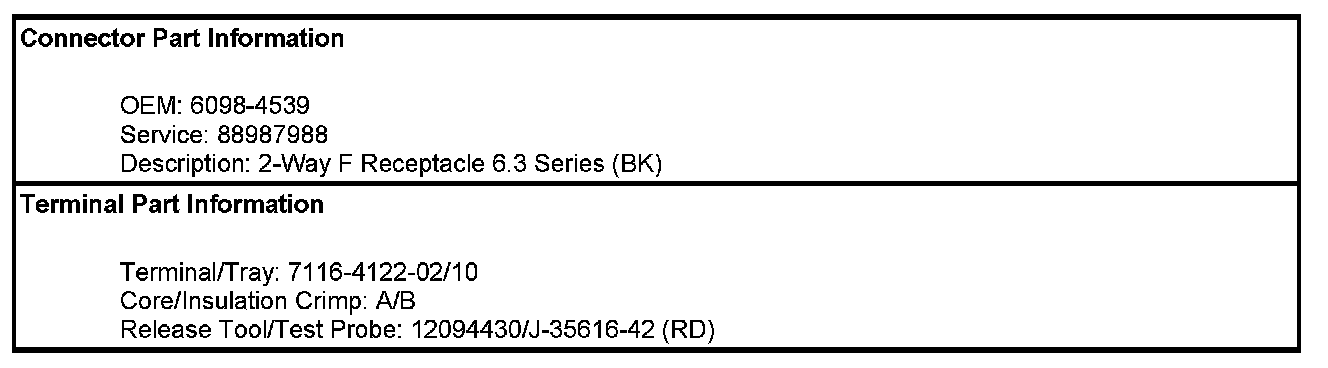

Accessory AC/DC Power Control Module X2 (KV1)
