GMC
>>
2008
>>
Acadia FWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Memory Positioning Switch
Memory Positioning Switch
Component Connector End Views

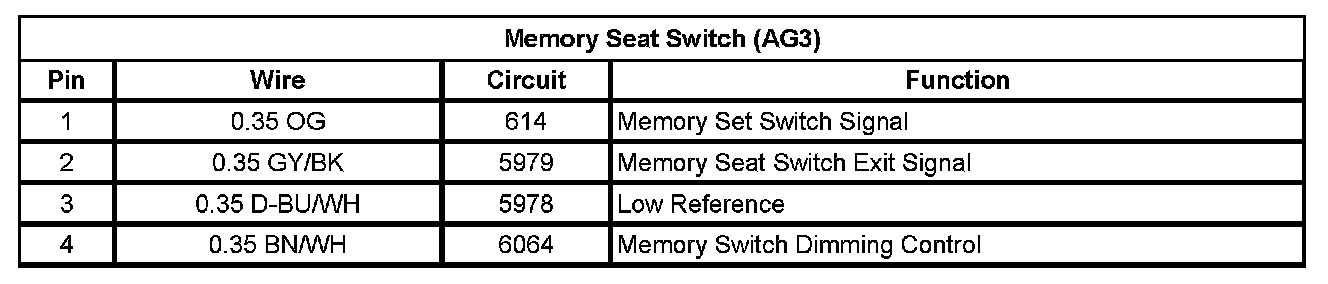

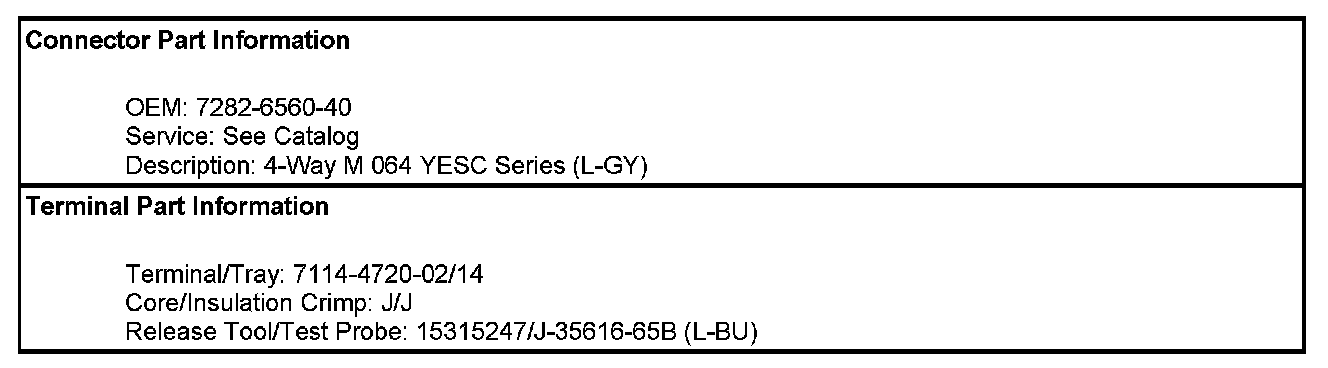

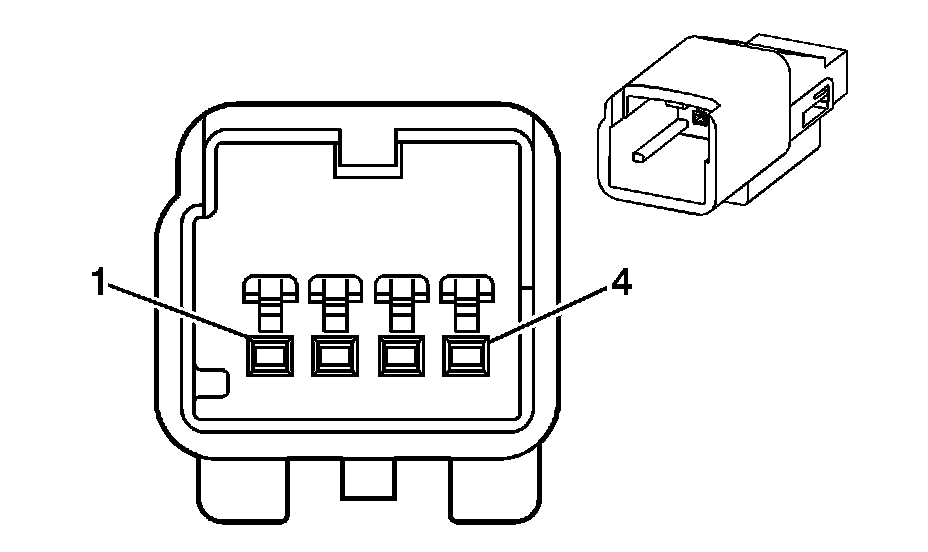

Memory Seat Switch (AG3)
