lemon-mirror
:
Home
>>
GMC
>>
2008
>>
Acadia FWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment System Control Module
Entertainment System Control Module

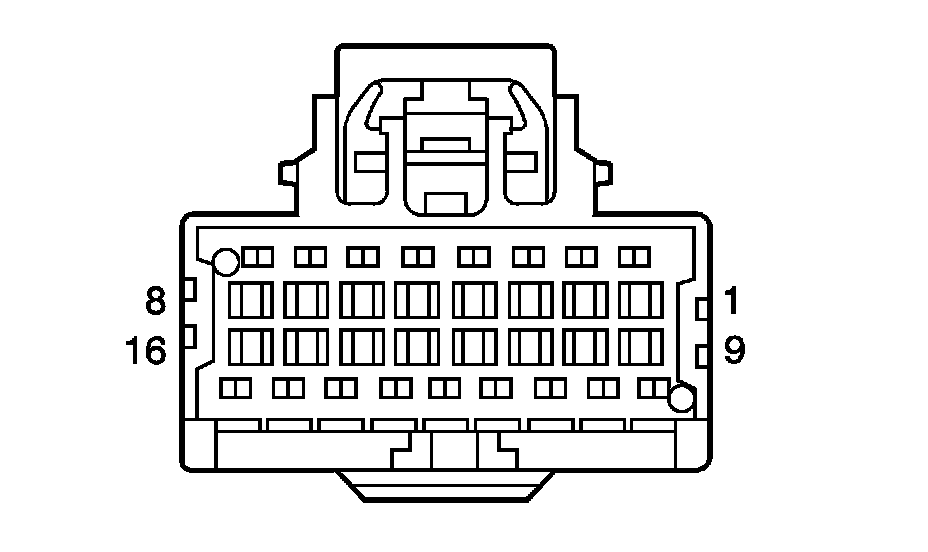

Component Connector End Views

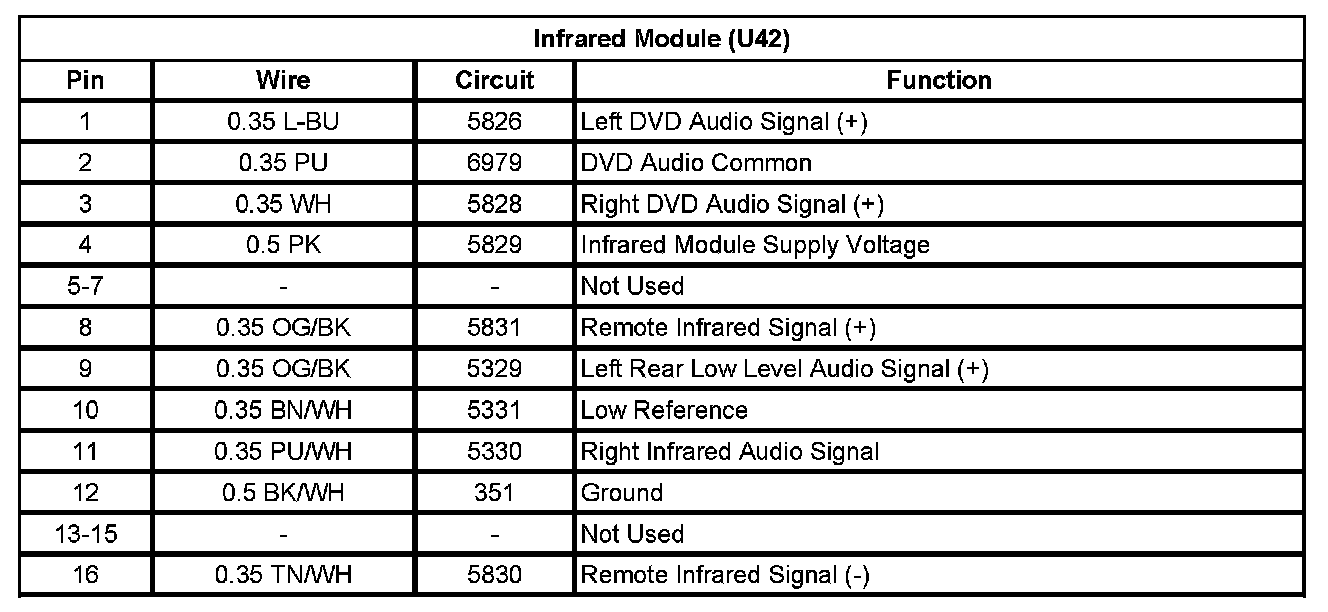

Infrared Module (U42)
