Home >> GMC >> 2008 >> Acadia FWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

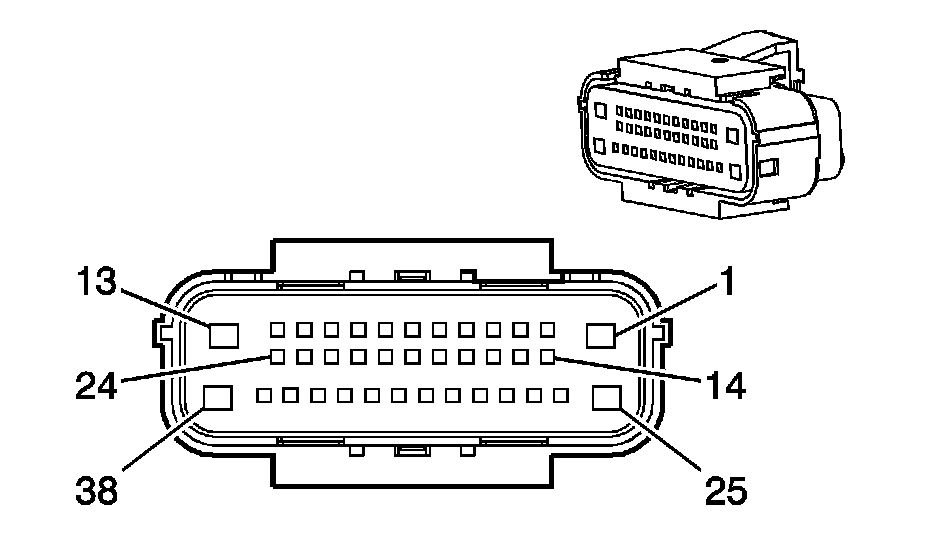

Component Connector End Views

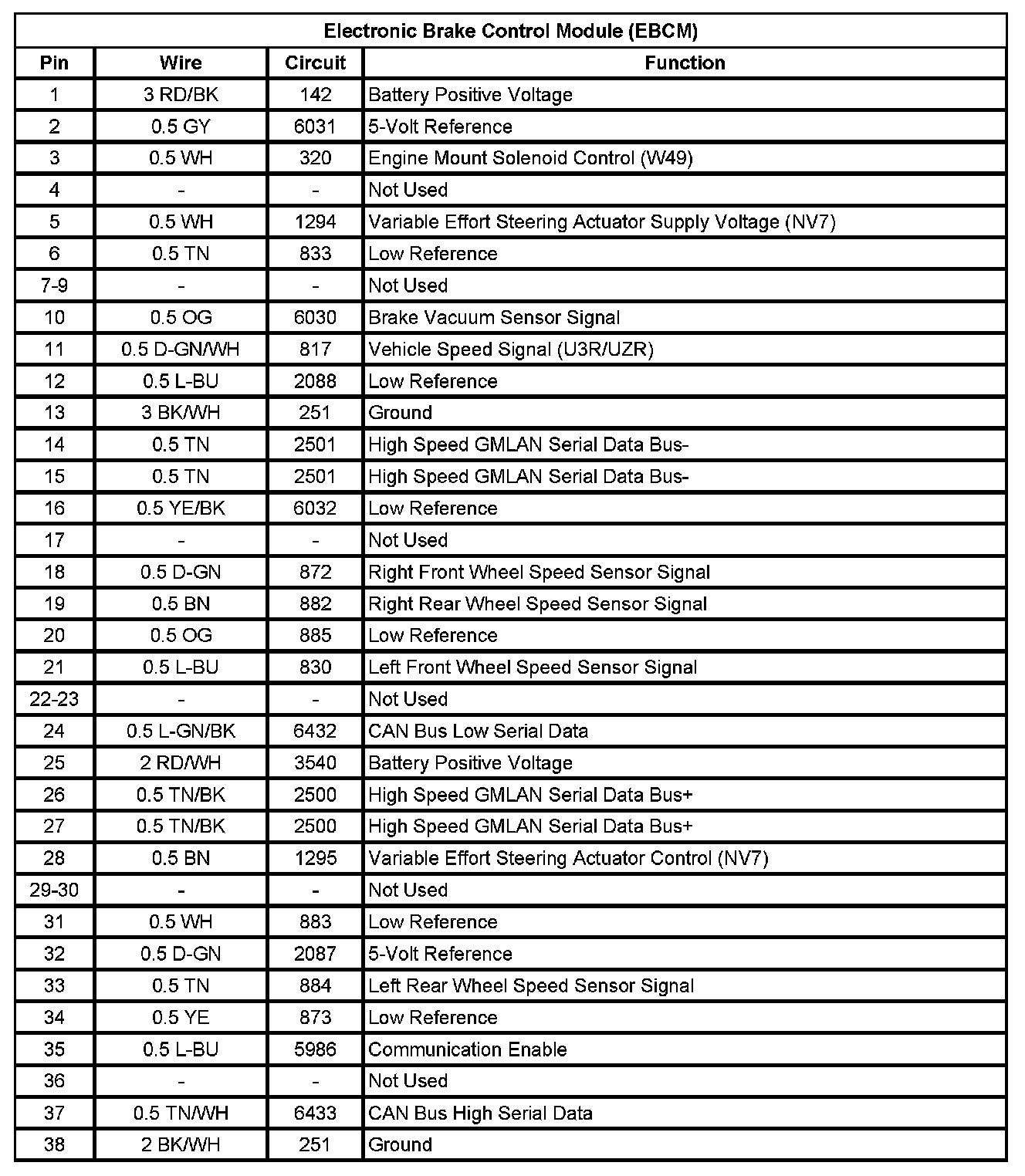

Electronic Brake Control Module (EBCM)
