Home >> GMC >> 2008 >> Acadia FWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC

Control Module HVAC



Component Connector End Views

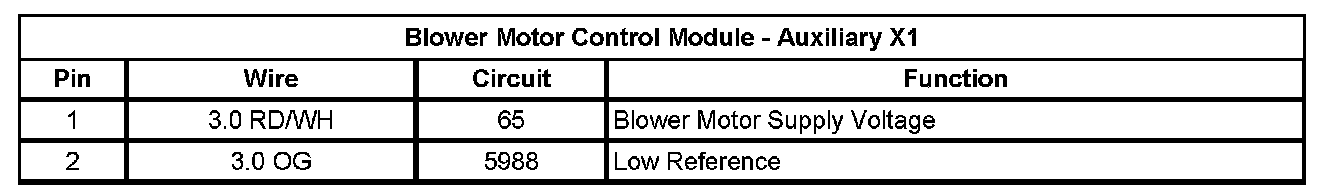

Blower Motor Control Module - Auxiliary X1

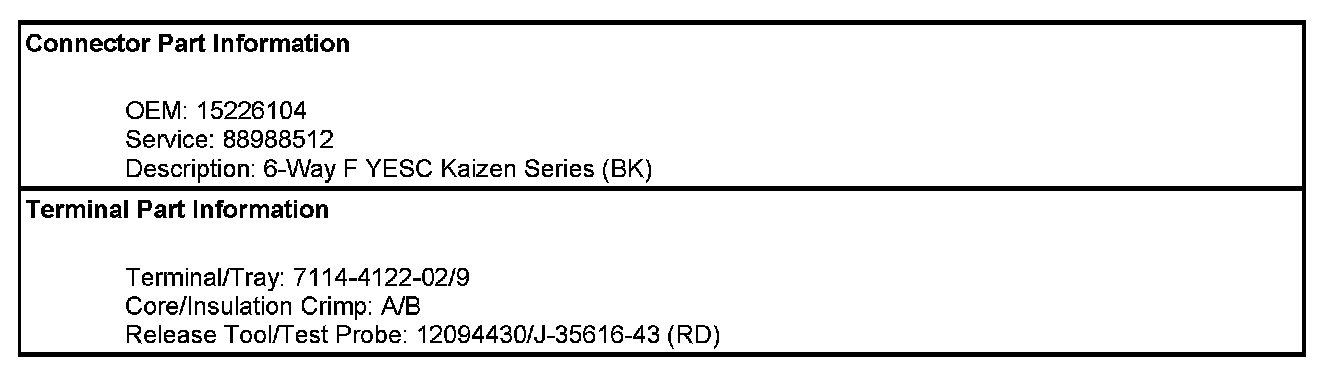

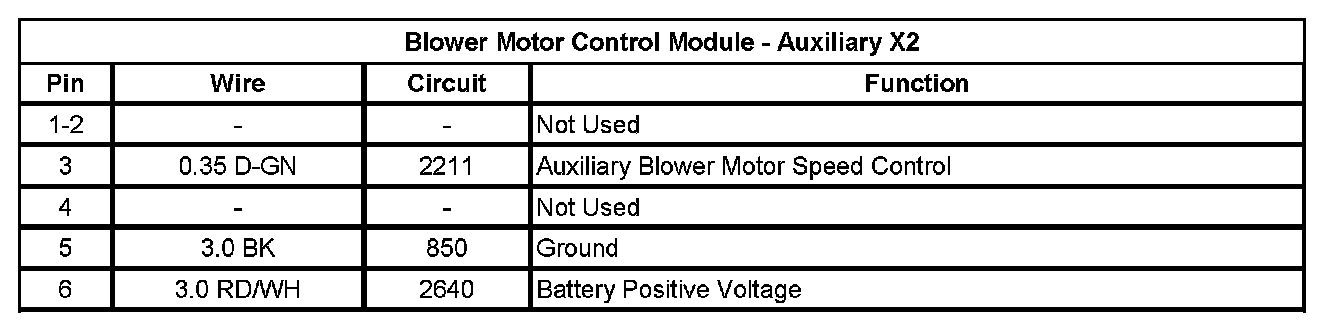

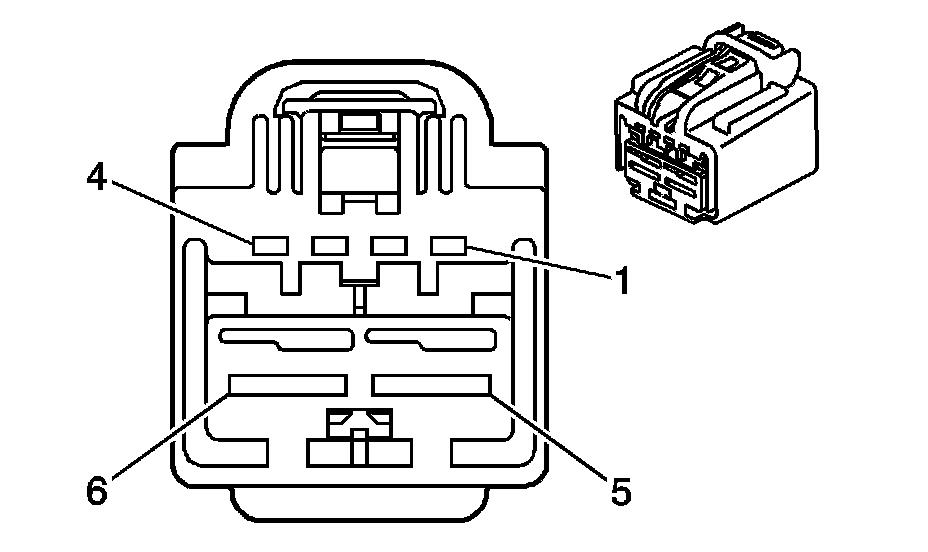

Blower Motor Control Module - Auxiliary X2

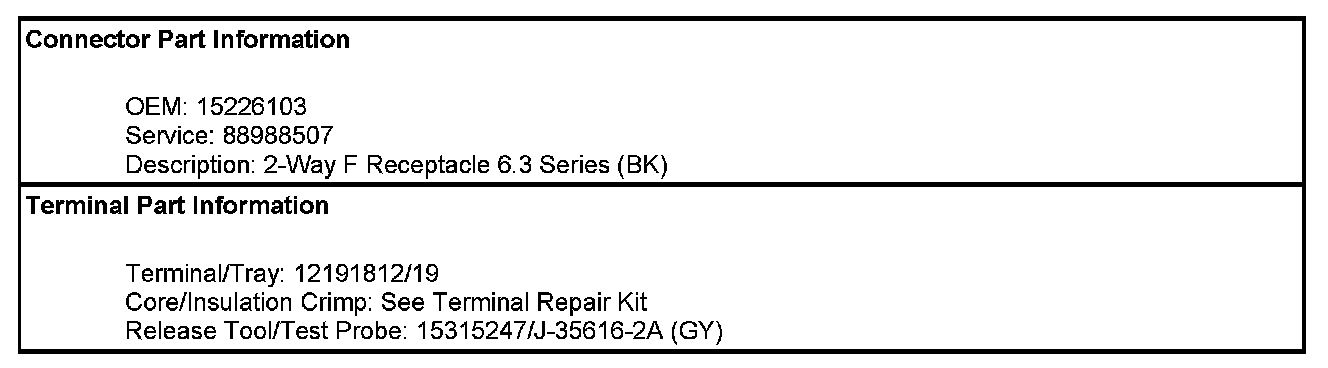

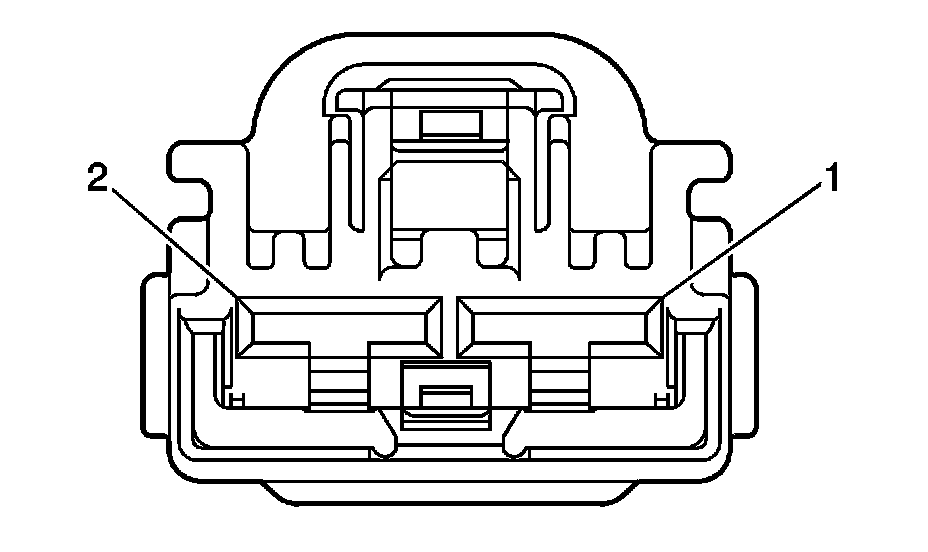

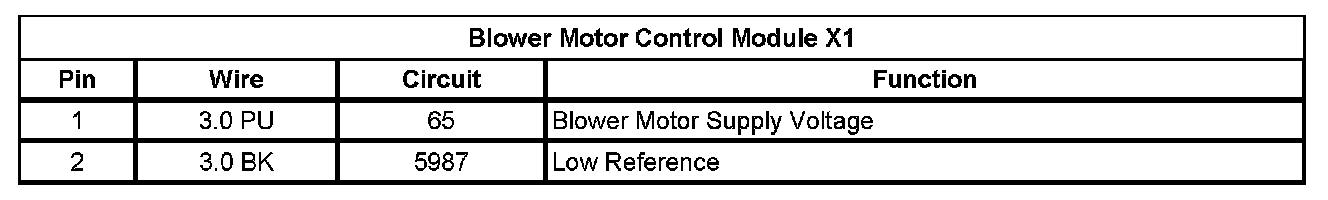

Blower Motor Control Module X1

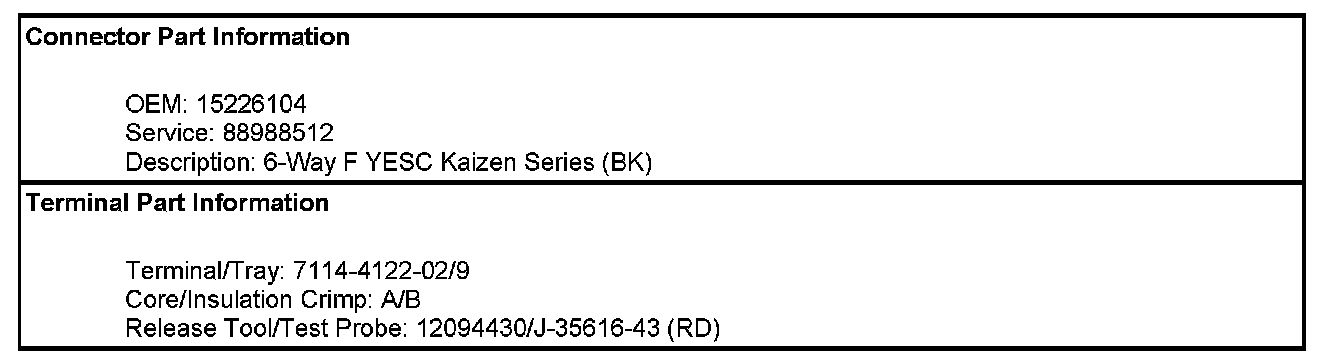

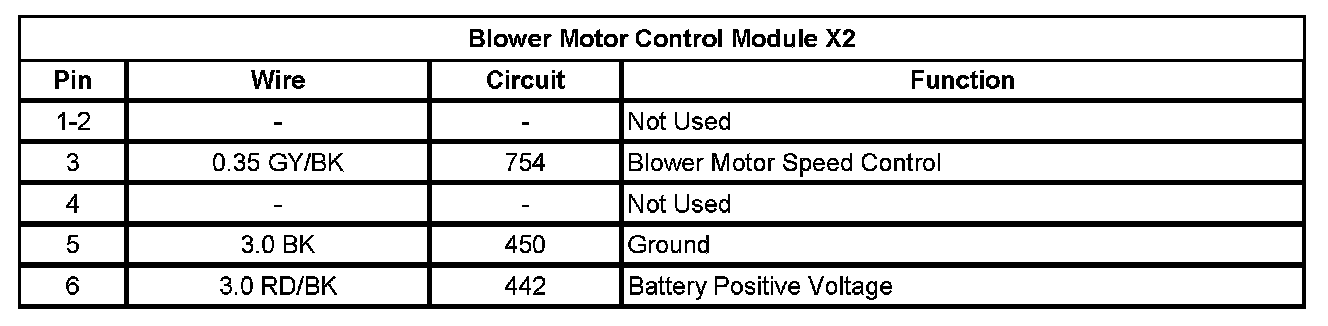

Blower Motor Control Module X2
