Control Assembly, HVAC

Component Connector End Views

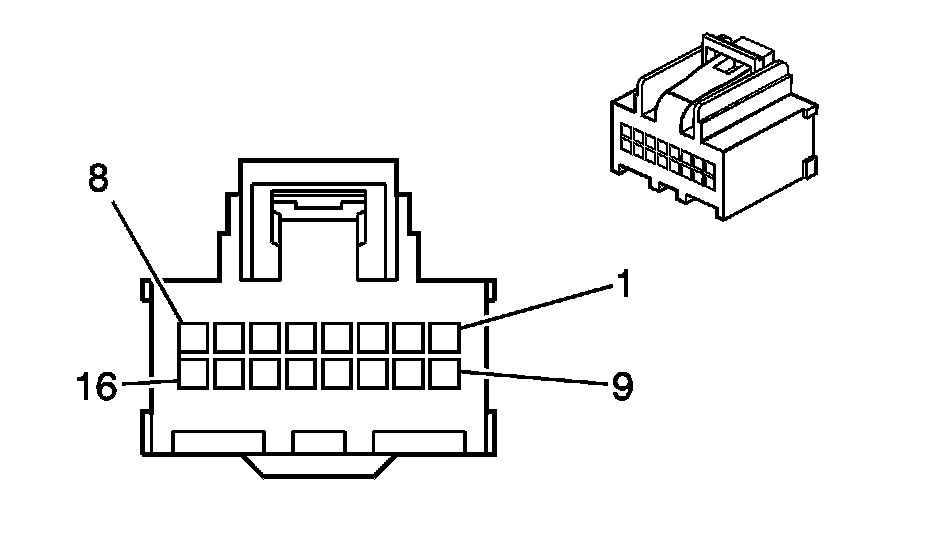

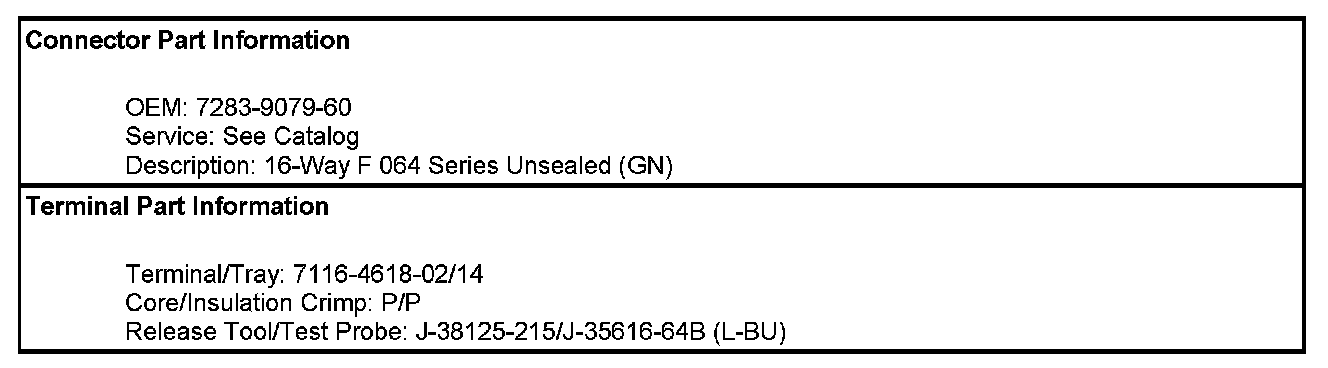

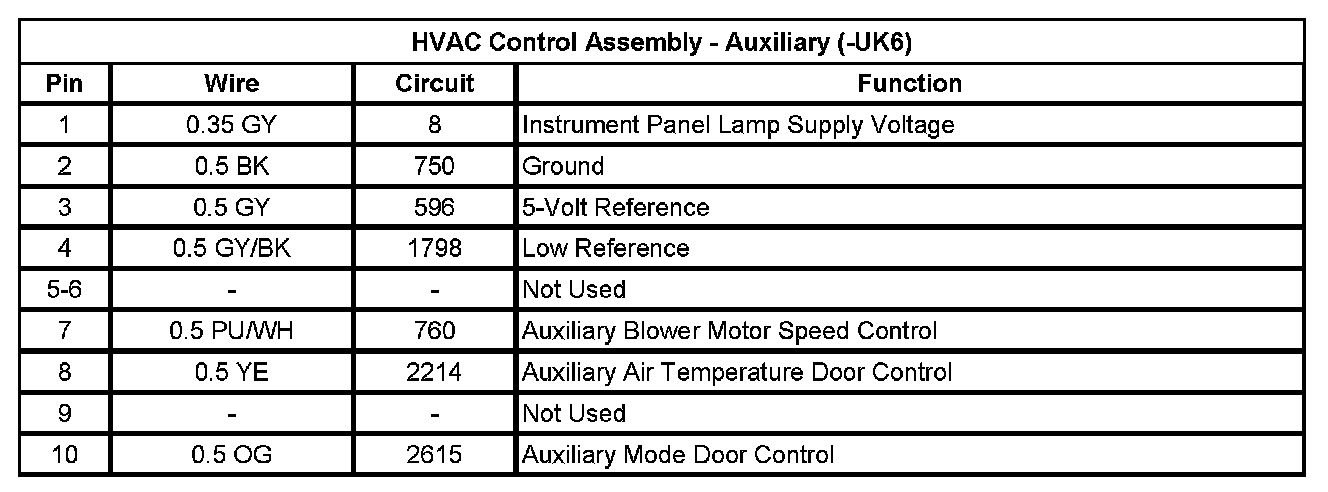

HVAC Control Assembly - Auxiliary (-UK6)

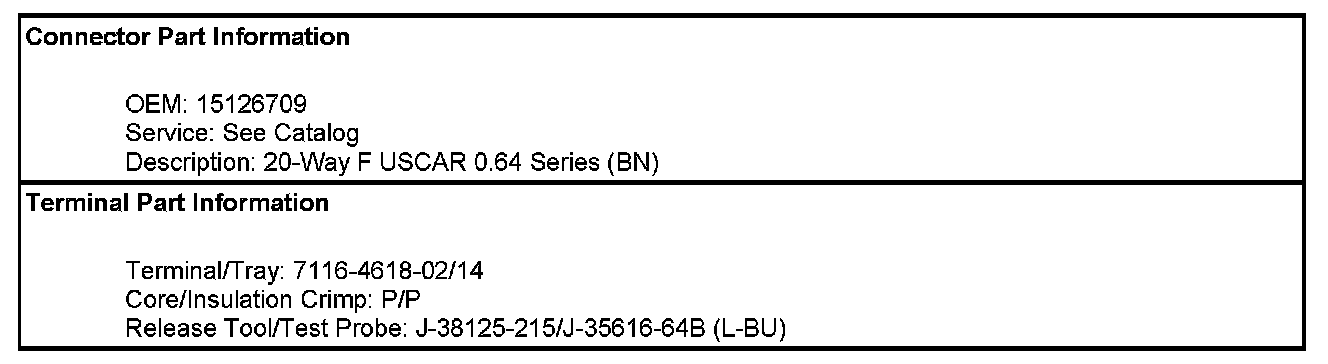

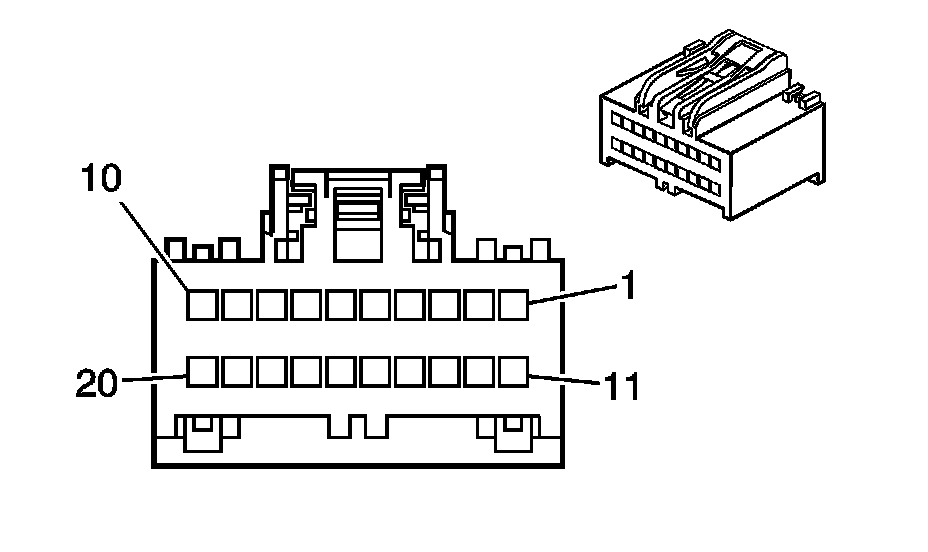

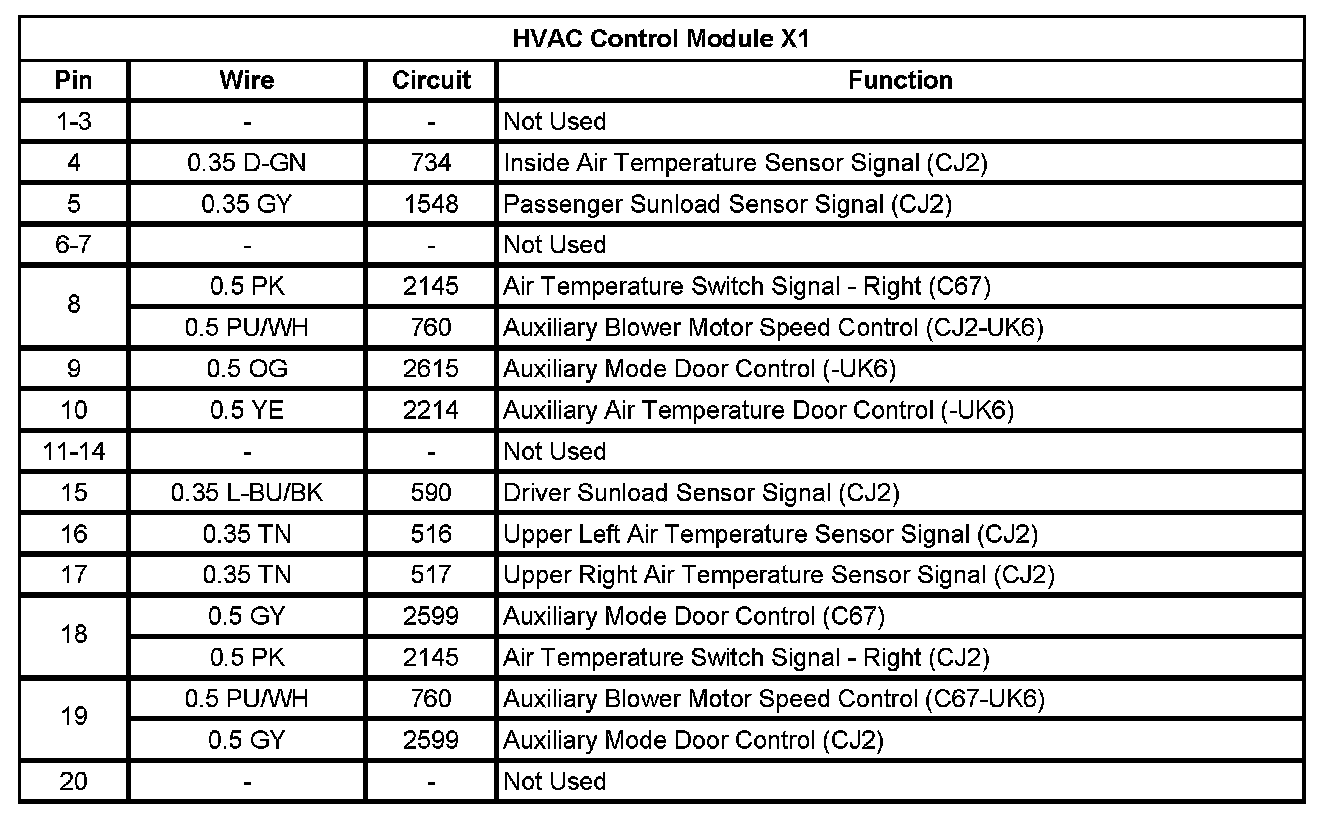

HVAC Control Module X1

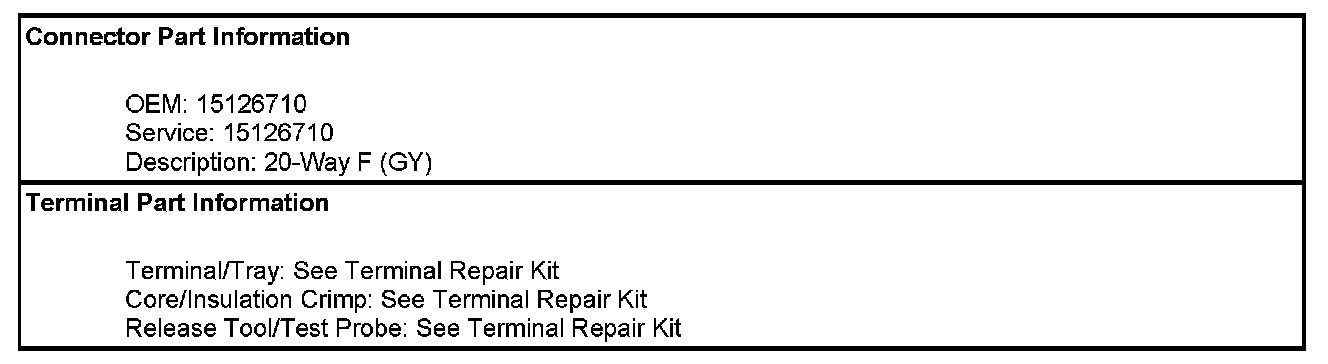

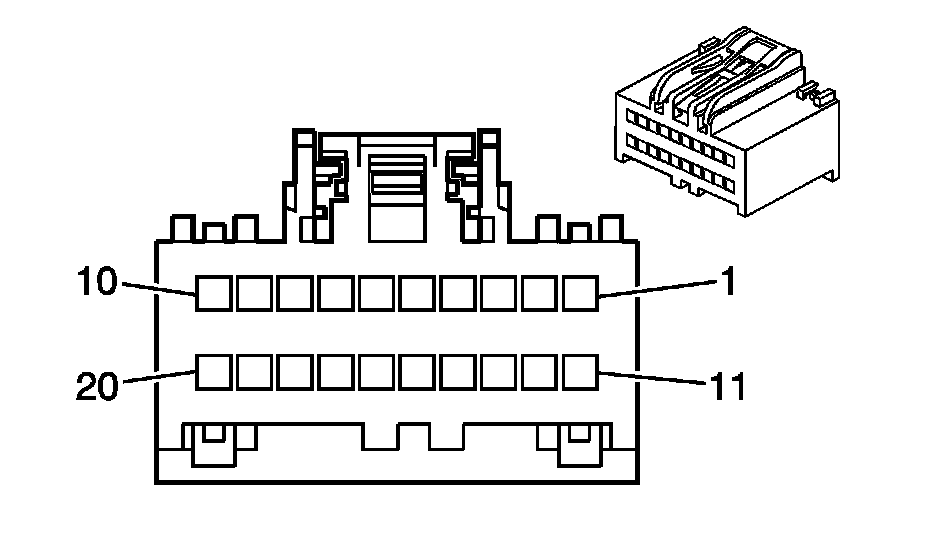

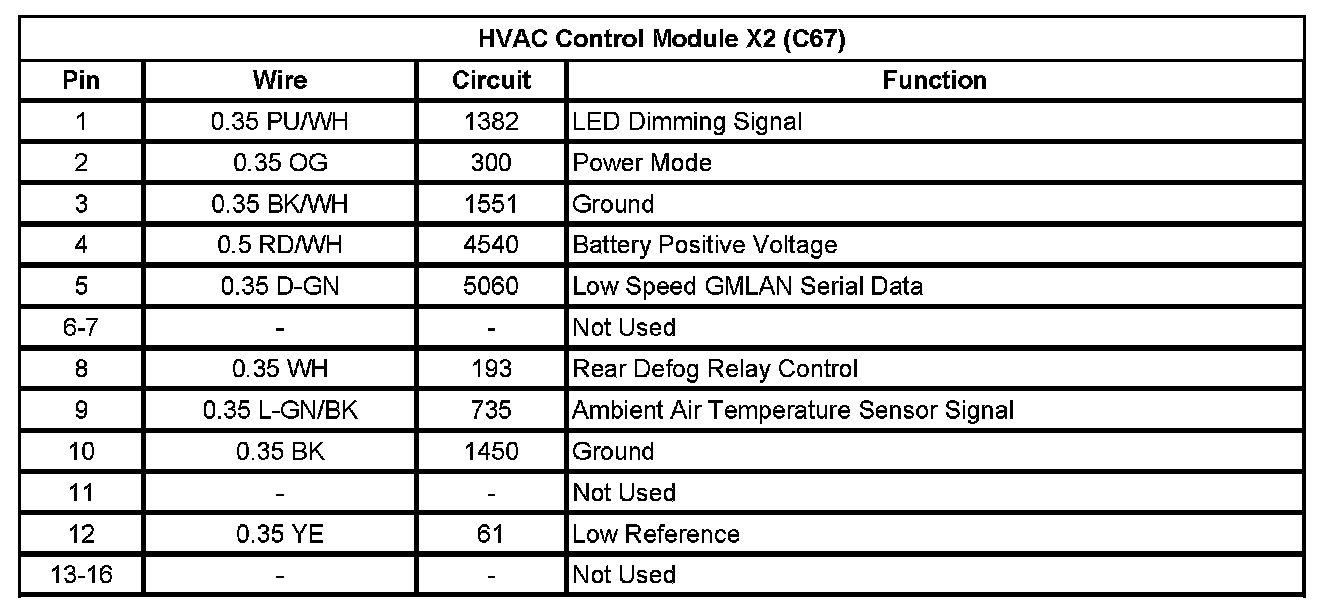

HVAC Control Module X2 (C67)

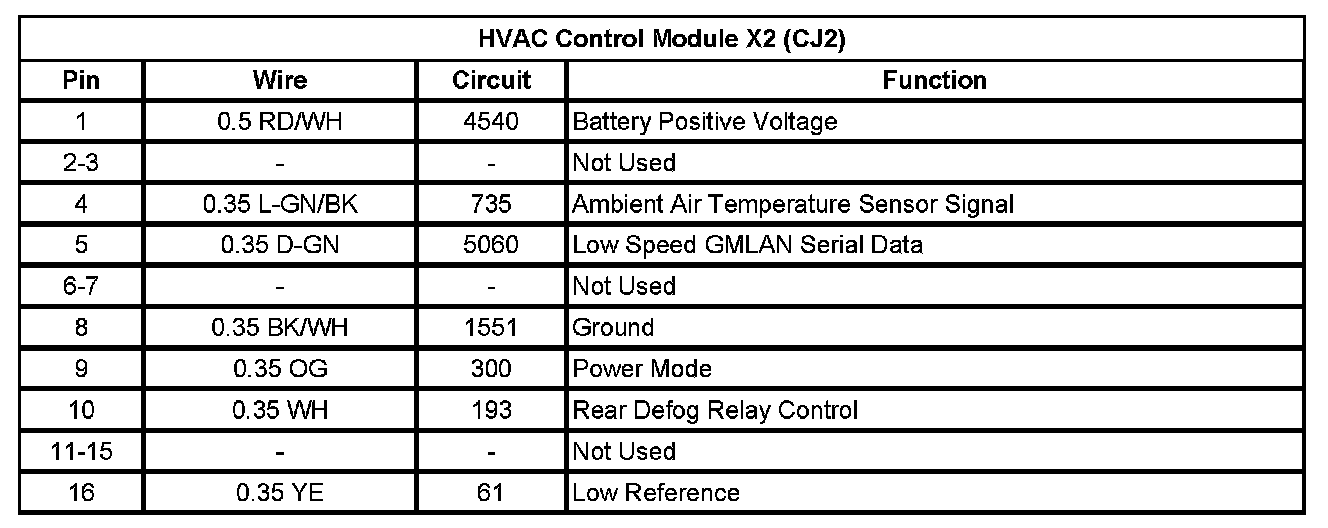

HVAC Control Module X2 (CJ2)

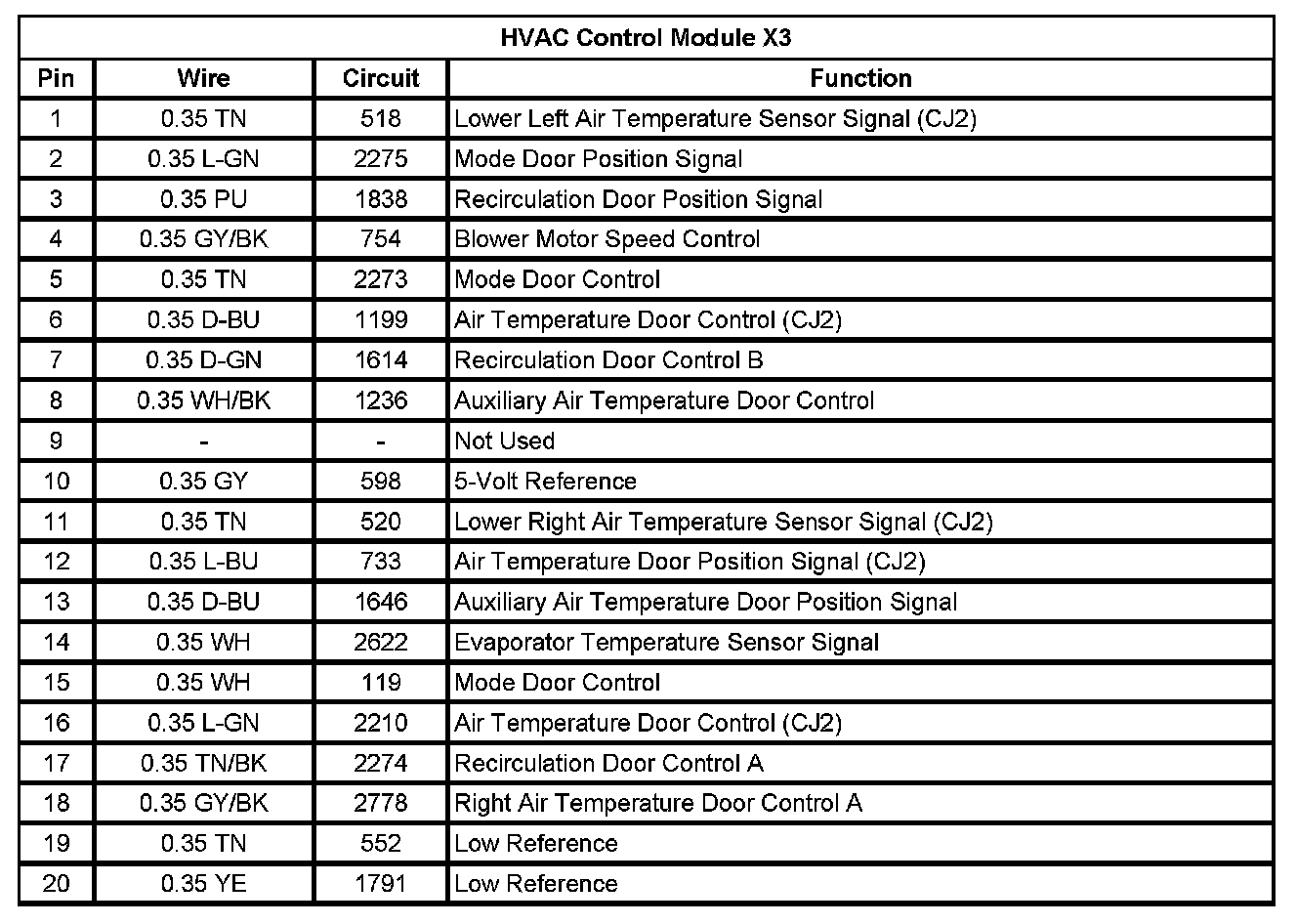

HVAC Control Module X3

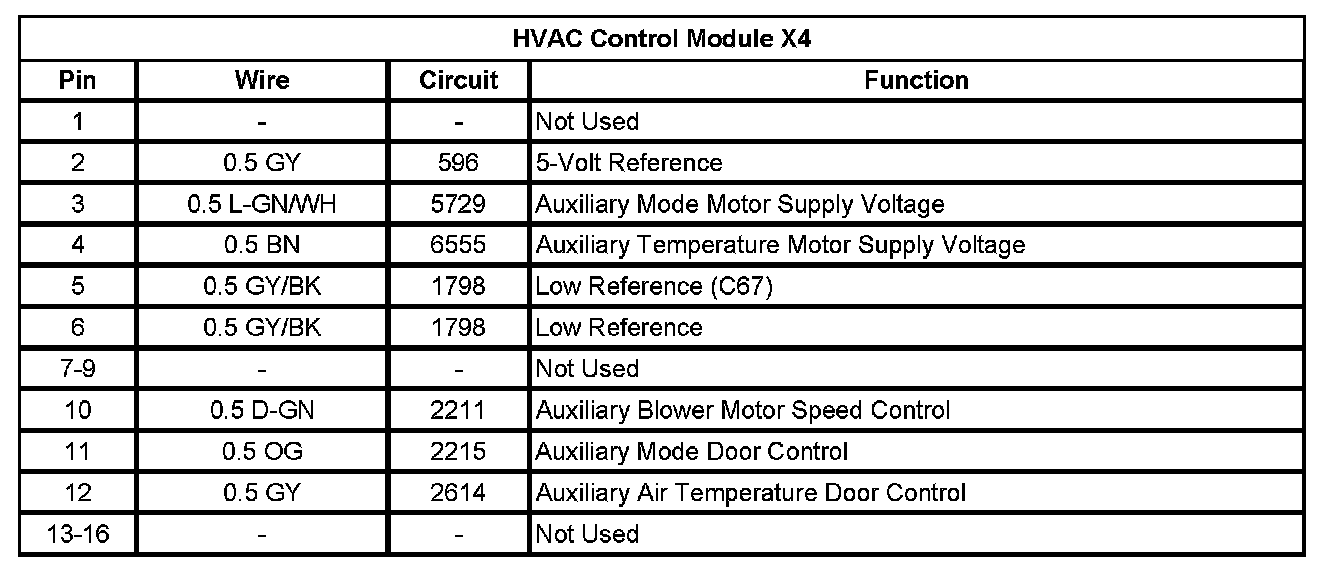

HVAC Control Module X4
