Central Control Module



Component Connector End Views

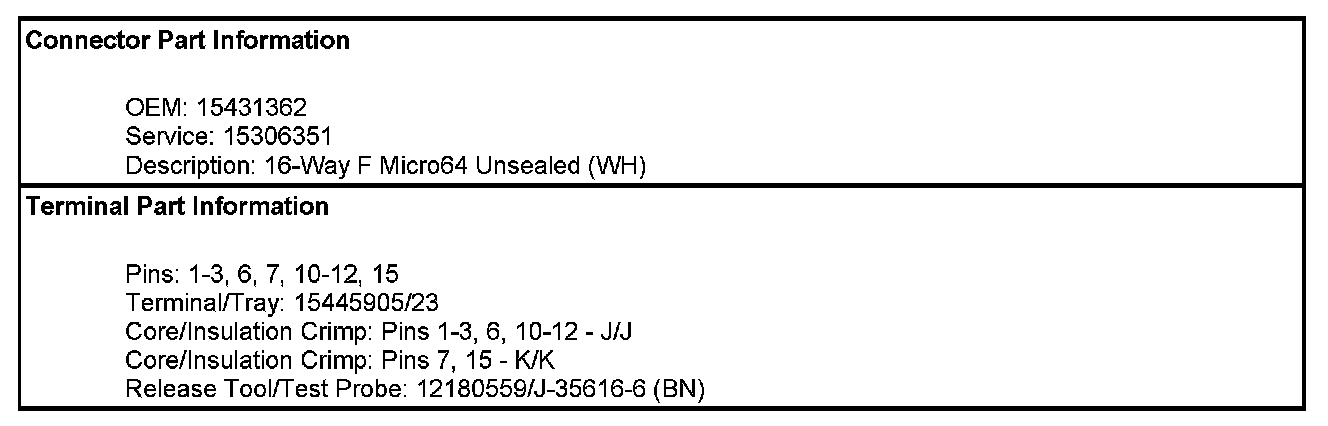

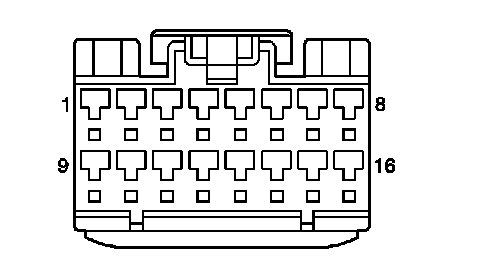

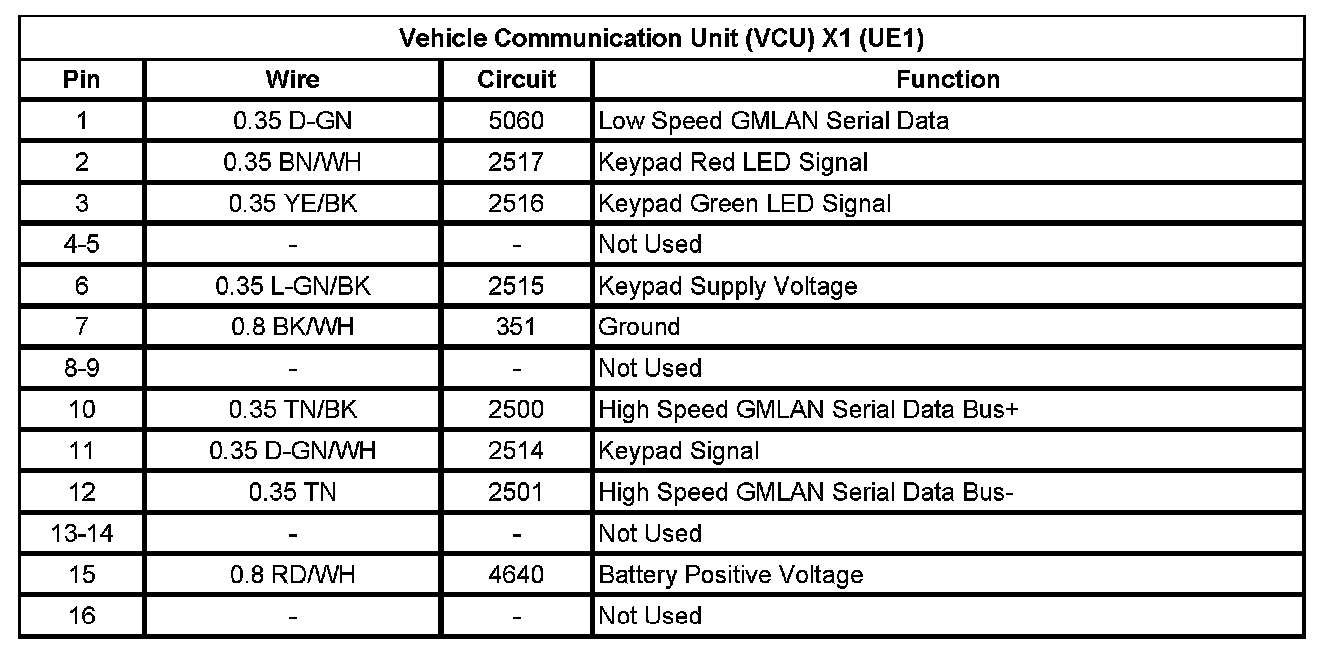

Vehicle Communication Unit (VCU) X1 (UE1)

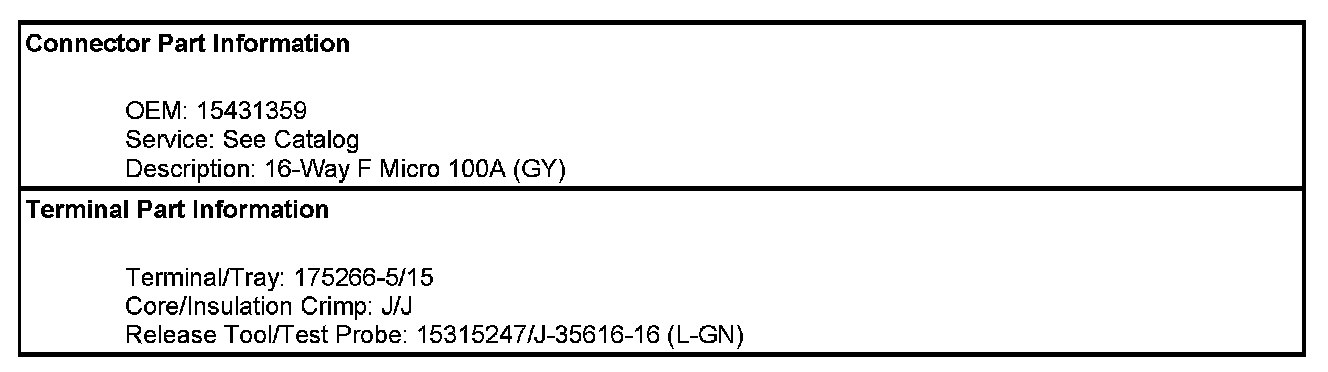

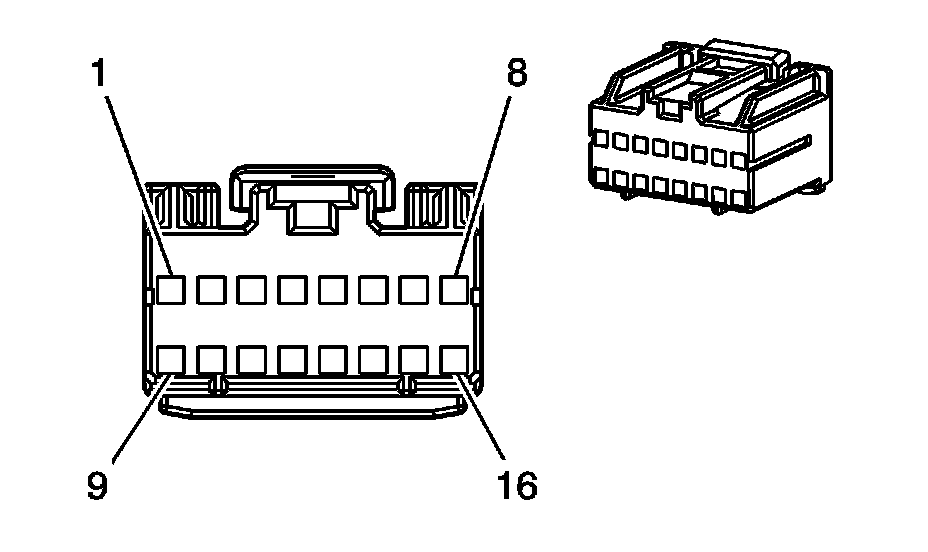

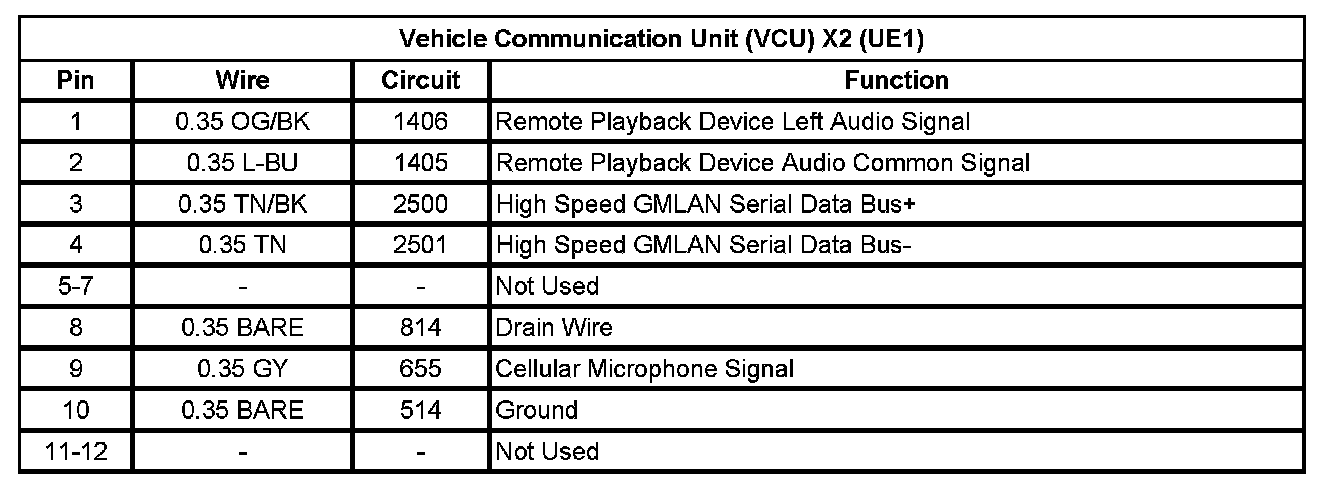

Vehicle Communication Unit (VCU) X2 (UE1)

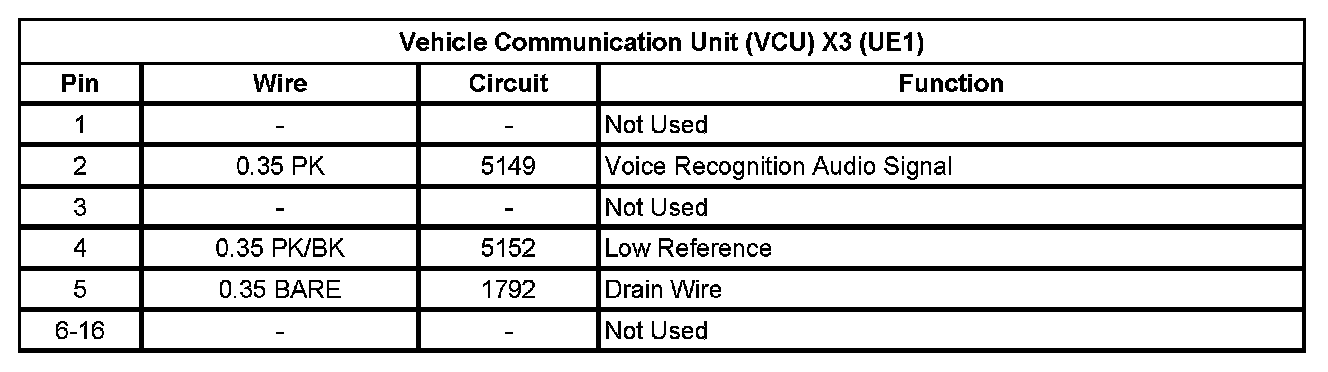

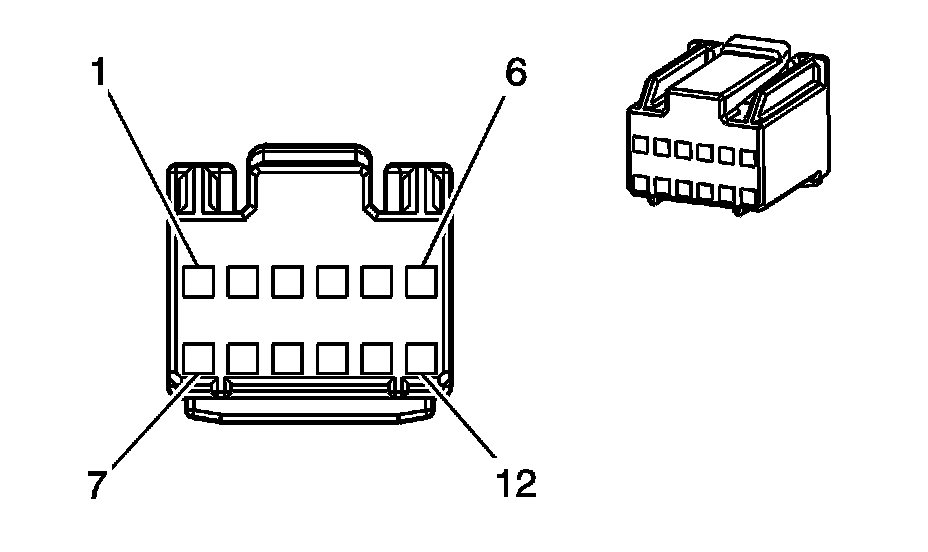

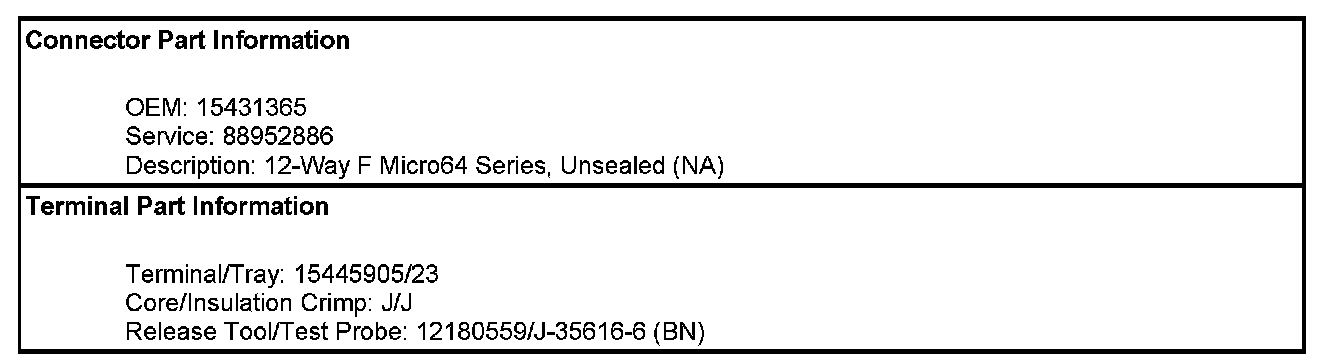

Vehicle Communication Unit (VCU) X3 (UE1)
