Air Bag Control Module

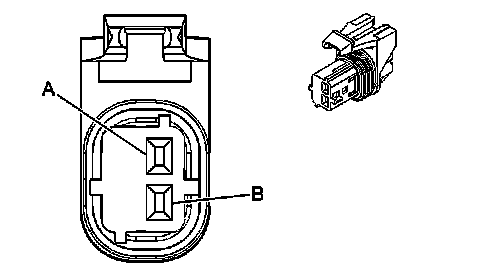

Component Connector End Views

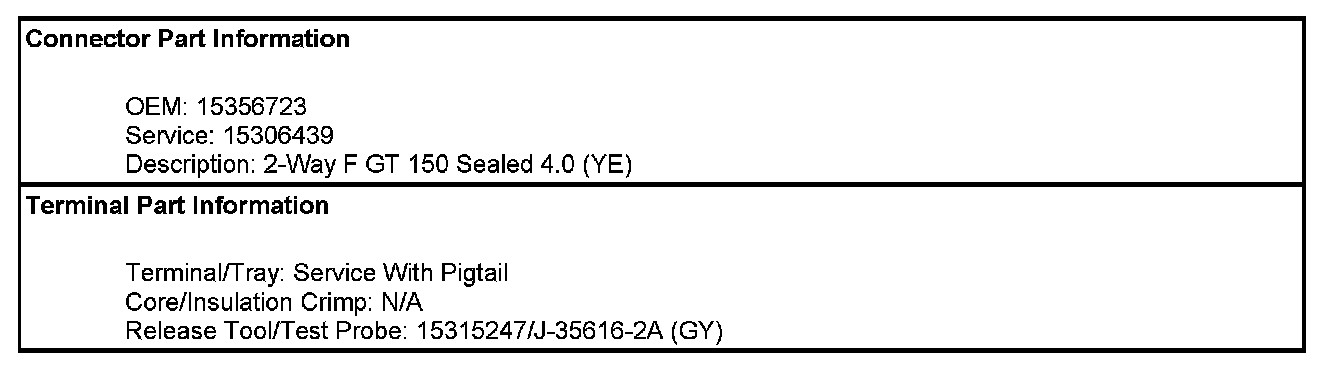

Inflatable Restraint Sensing and Diagnostic Module (SDM)

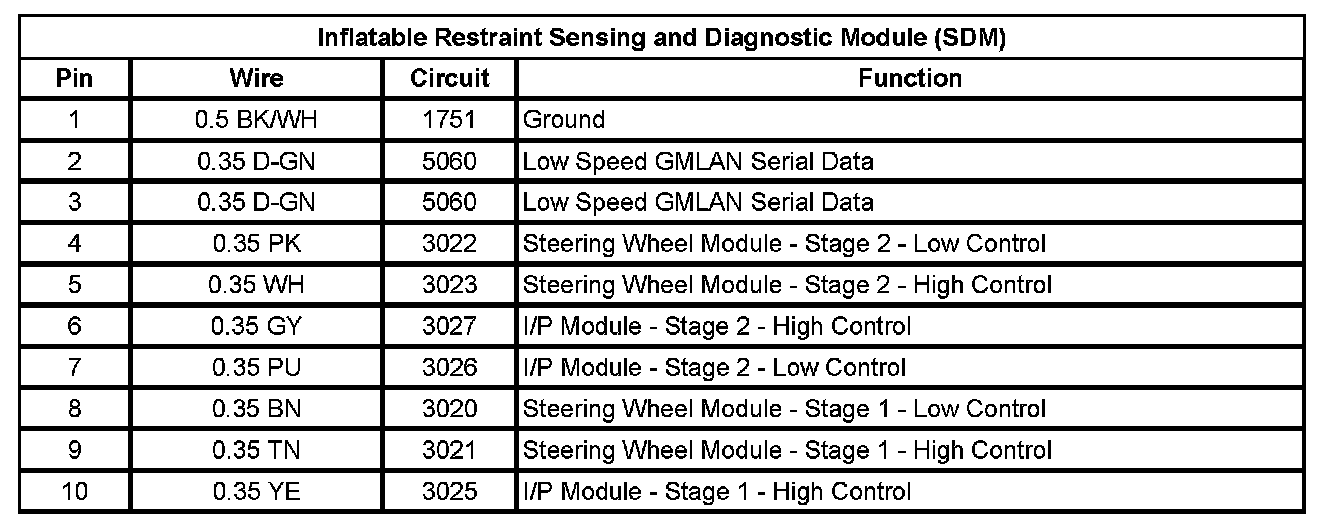

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Pin 1 To 10):

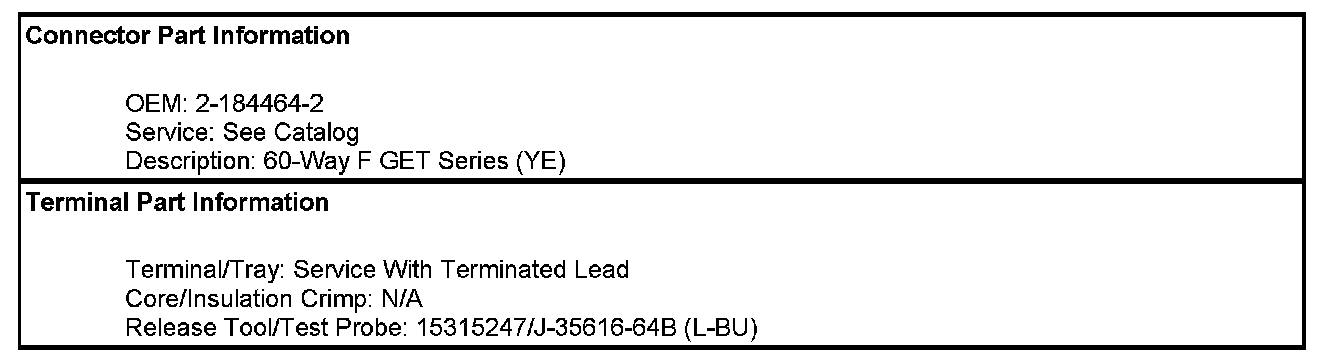

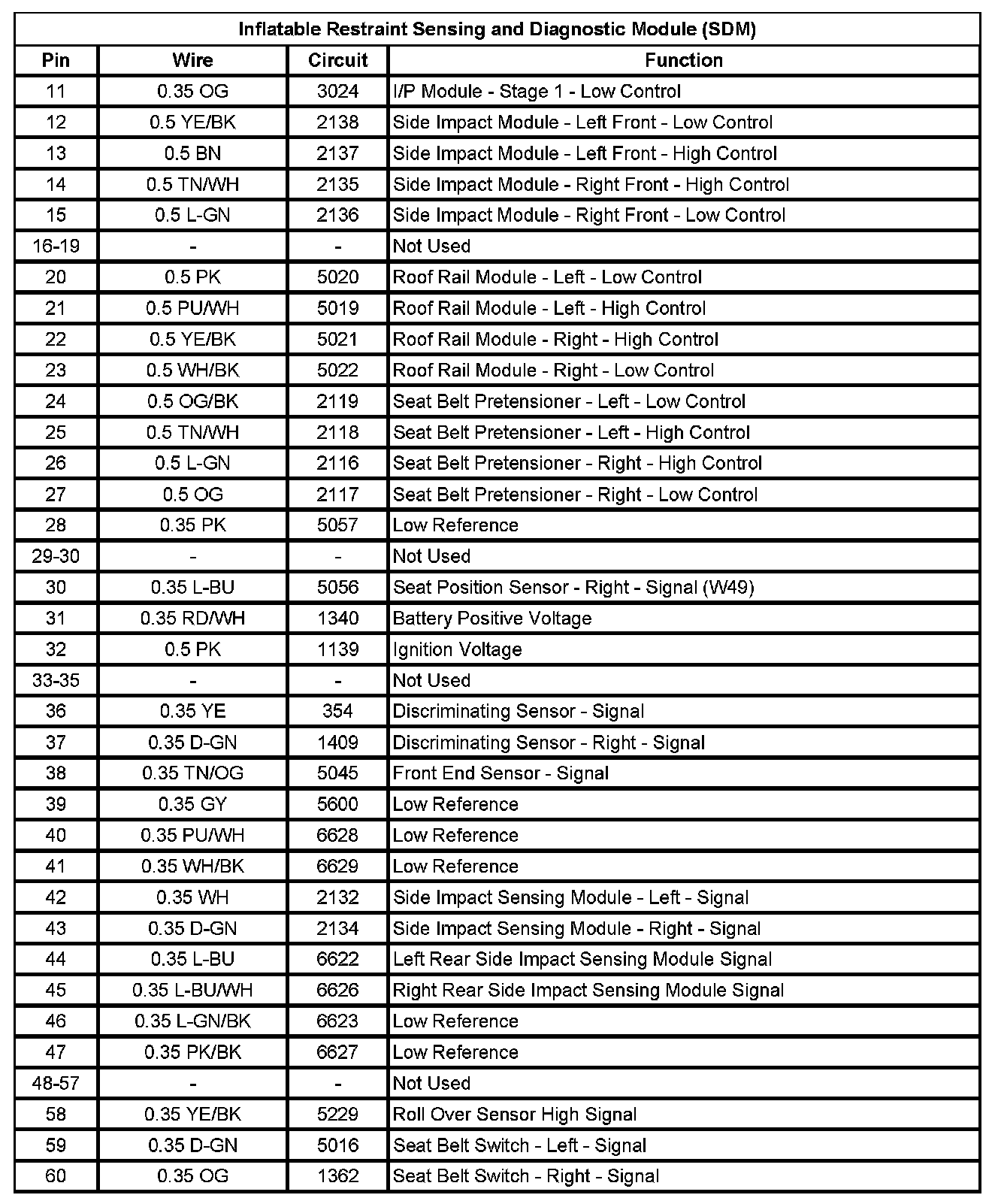

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Pin 11 To 60):

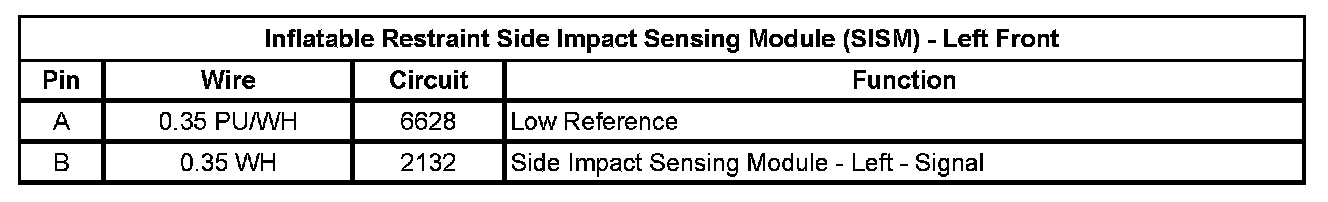

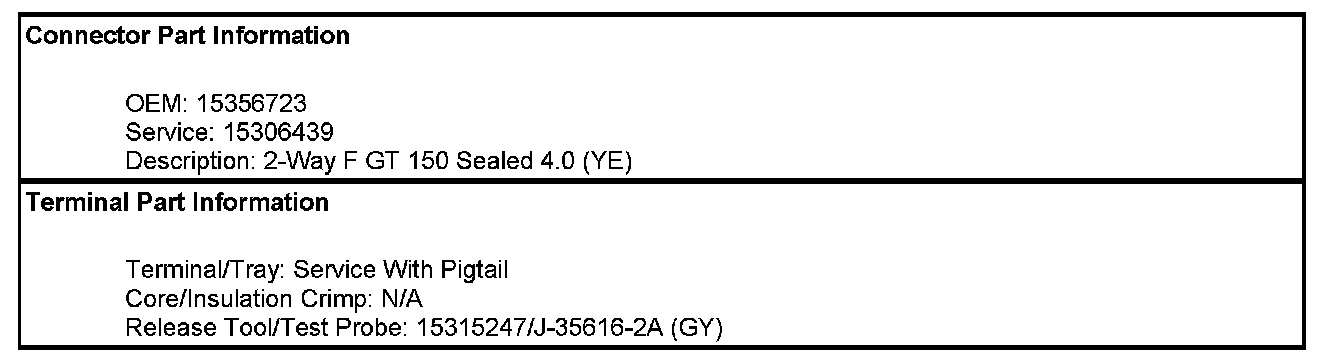

Inflatable Restraint Side Impact Sensing Module (SISM) - Left Front

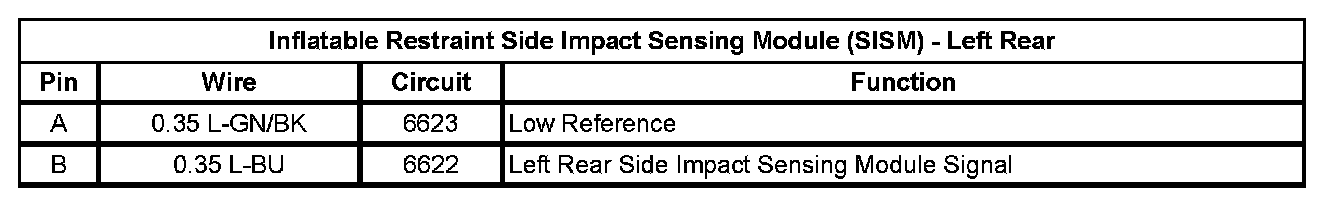

Inflatable Restraint Side Impact Sensing Module (SISM) - Left Rear














Inflatable Restraint Side Impact Sensing Module (SISM) - Right Front

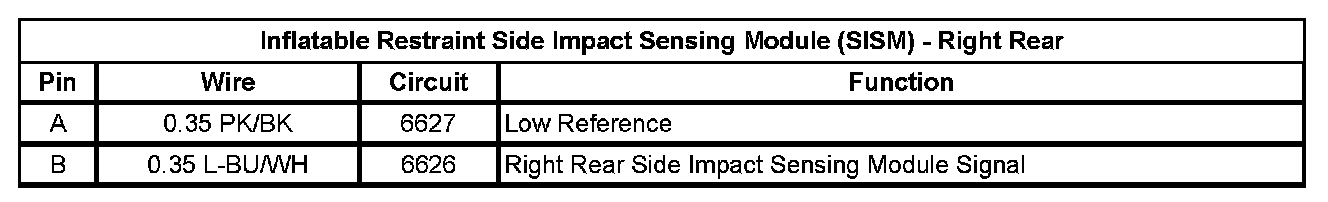

Inflatable Restraint Side Impact Sensing Module (SISM) - Right Rear
