Air Bag Control Module

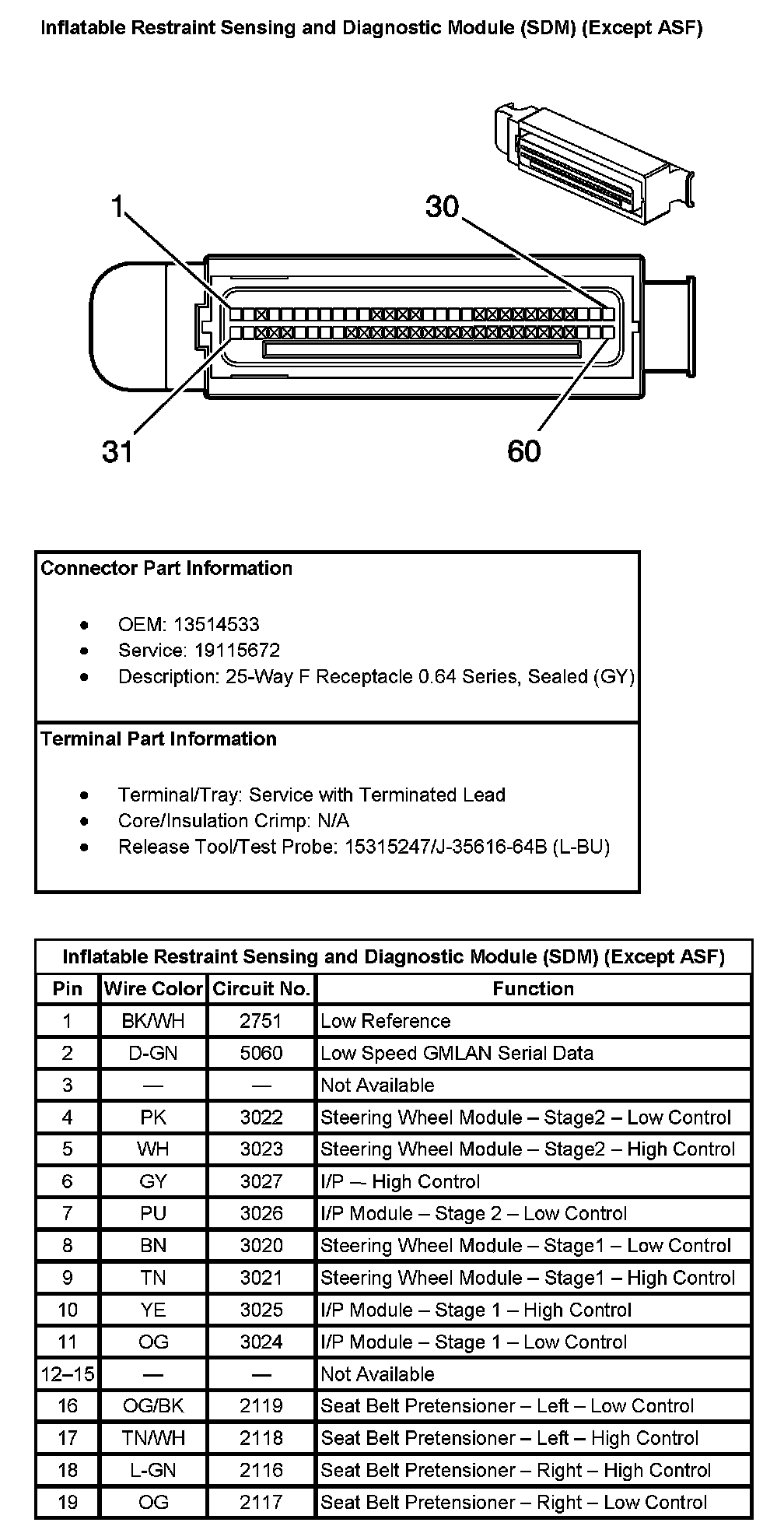

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Except RPO Code ASF) (Pin 1 To 19):

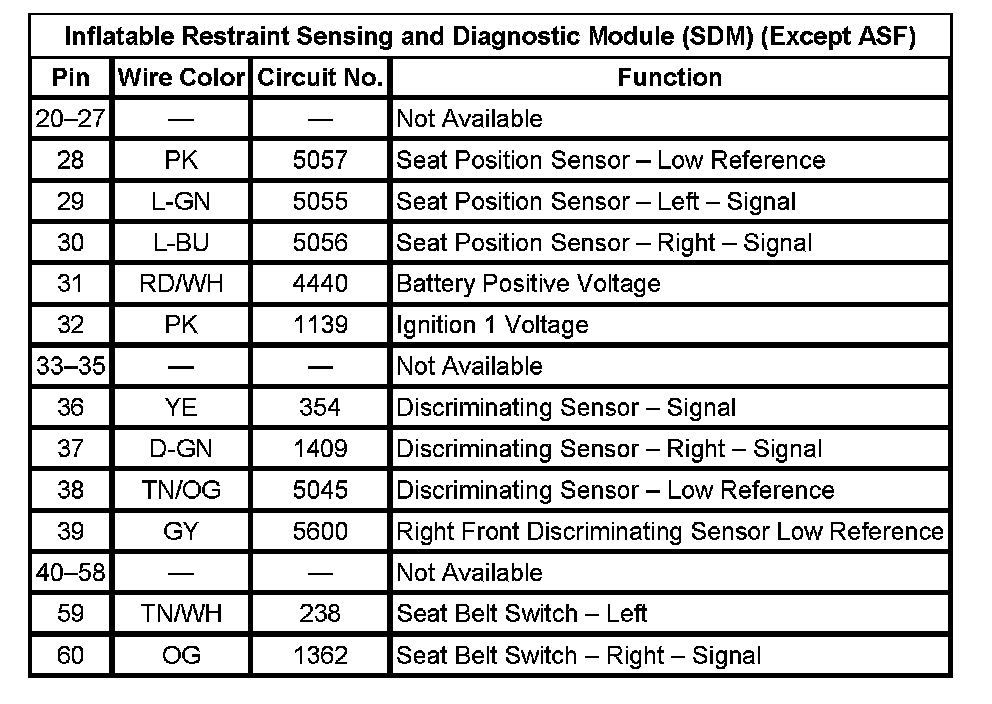

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Except RPO Code ASF) (Pin 20 To 60):

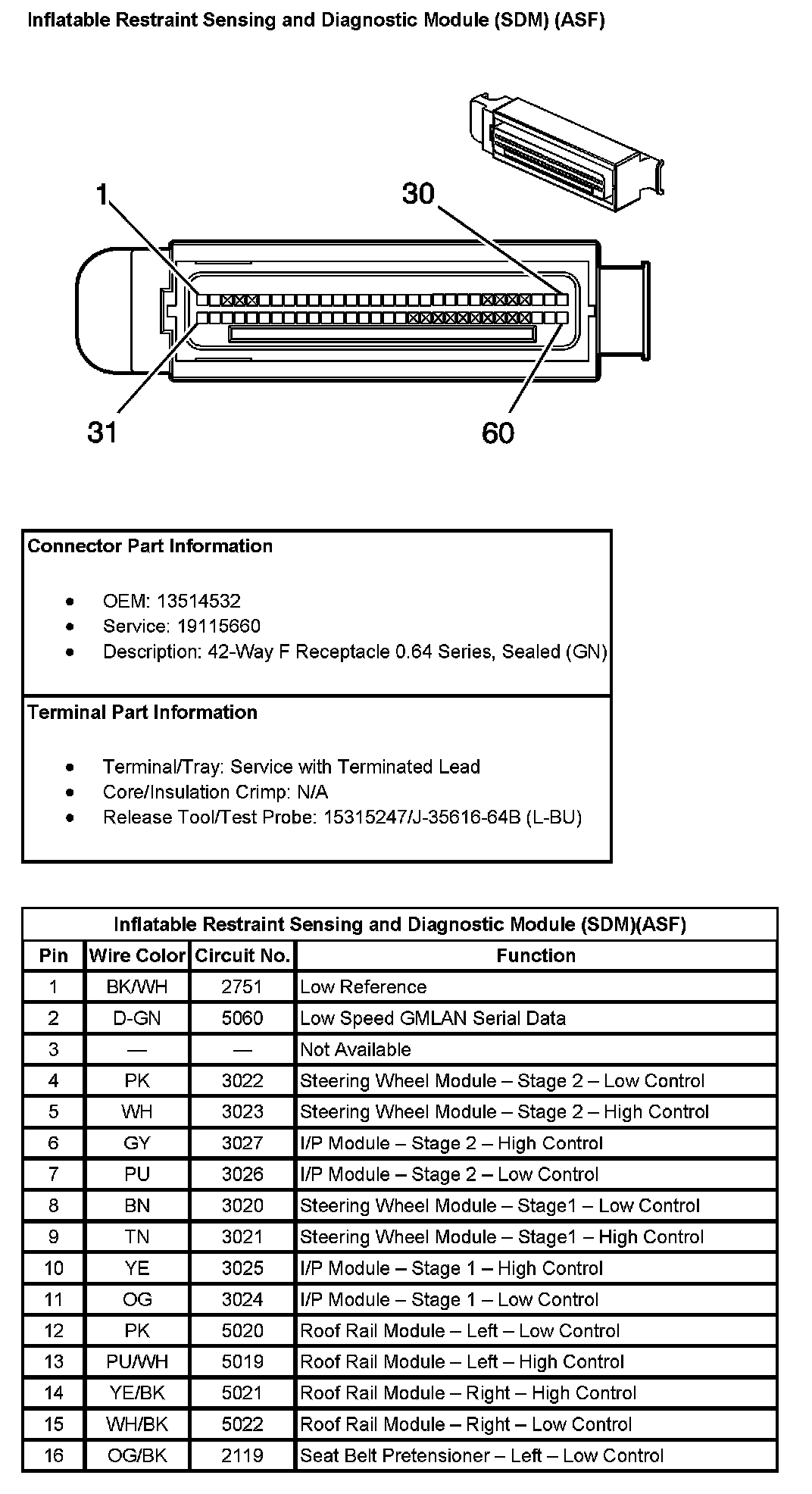

Inflatable Restraint Sensing And Diagnostic Module (SDM) (With RPO Code ASF) (Pin 1 To 16):

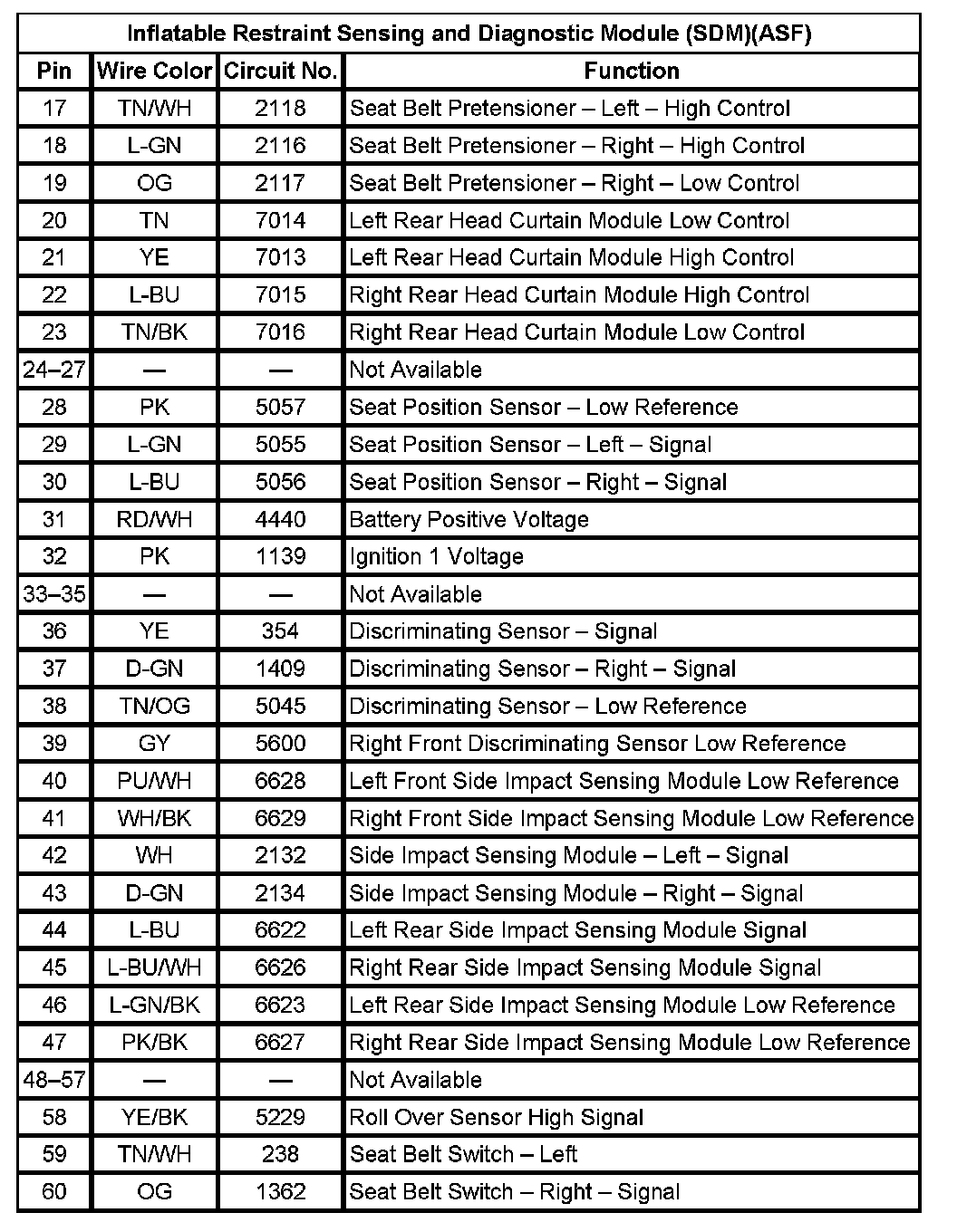

Inflatable Restraint Sensing And Diagnostic Module (SDM)(With RPO Code ASF) (Pin 17 To 60):
