Home >> GMC >> 2007 >> Yukon 2WD V8-4.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Parking Assist Control Module

Parking Assist Control Module

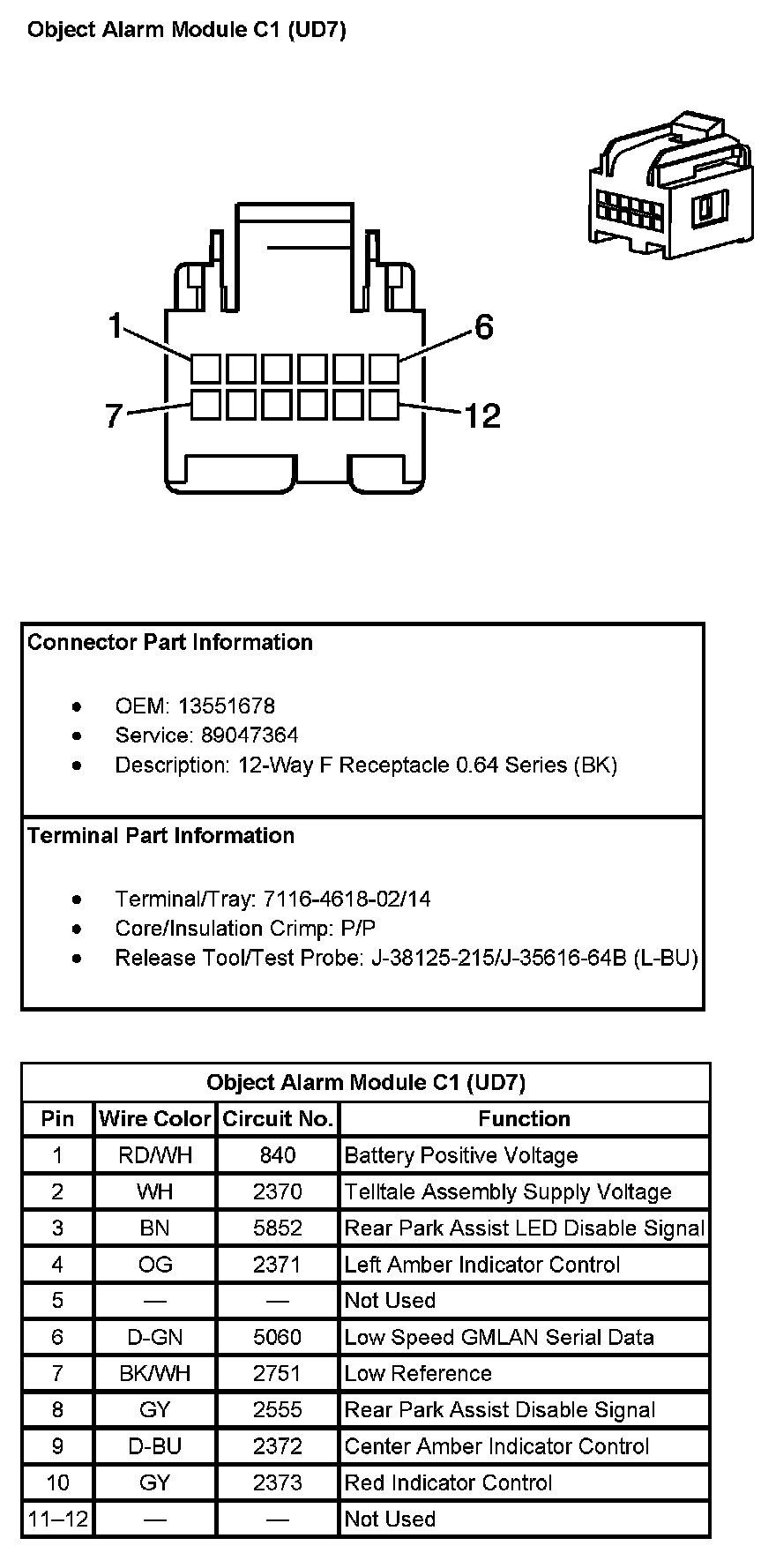

Object Alarm Module C1 (With RPO Code UD7):

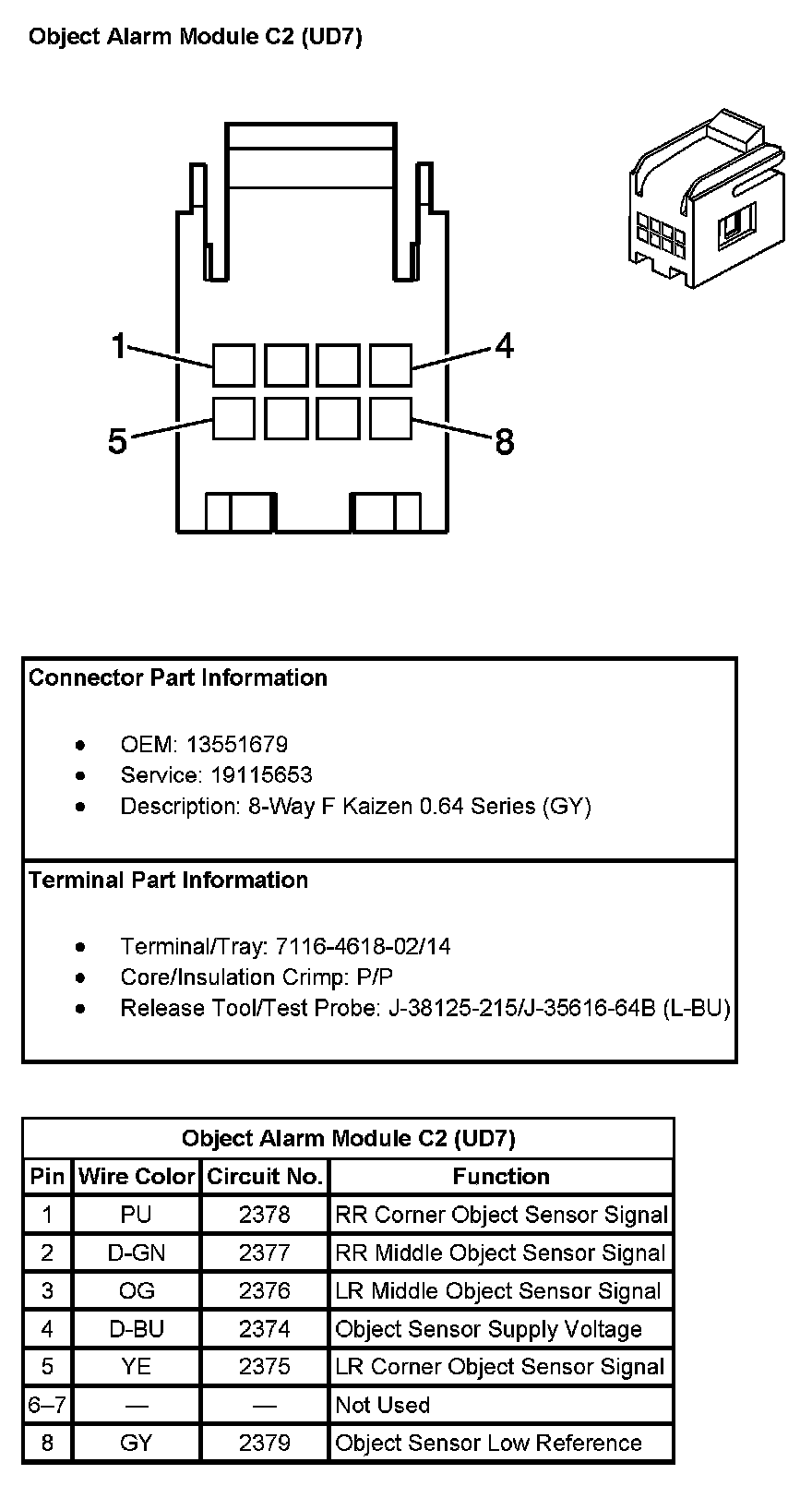

Object Alarm Module C2 (With RPO Code UD7):
