Blower Motor Control Module

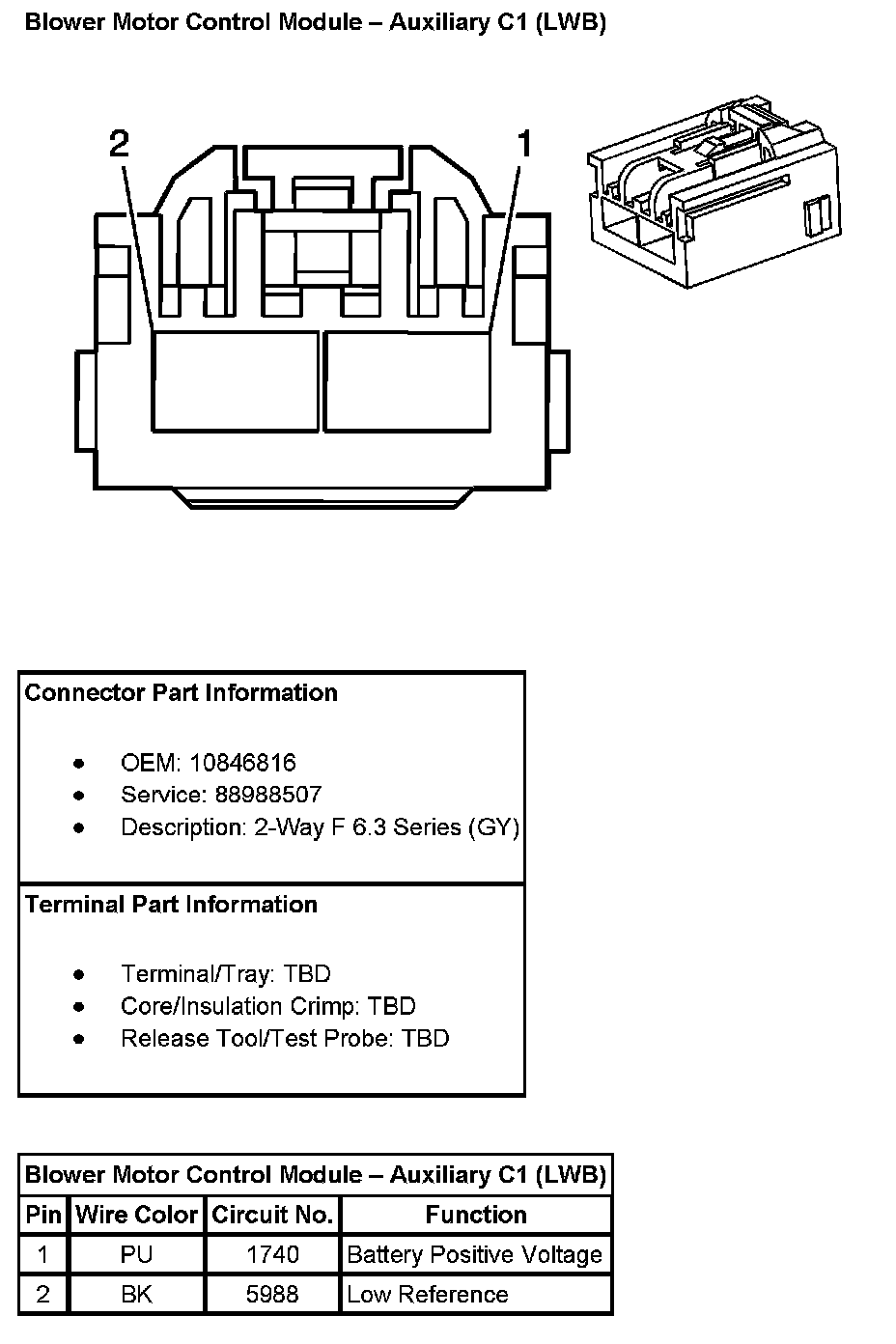

Blower Motor Control Module - Auxiliary C1 (LWB):

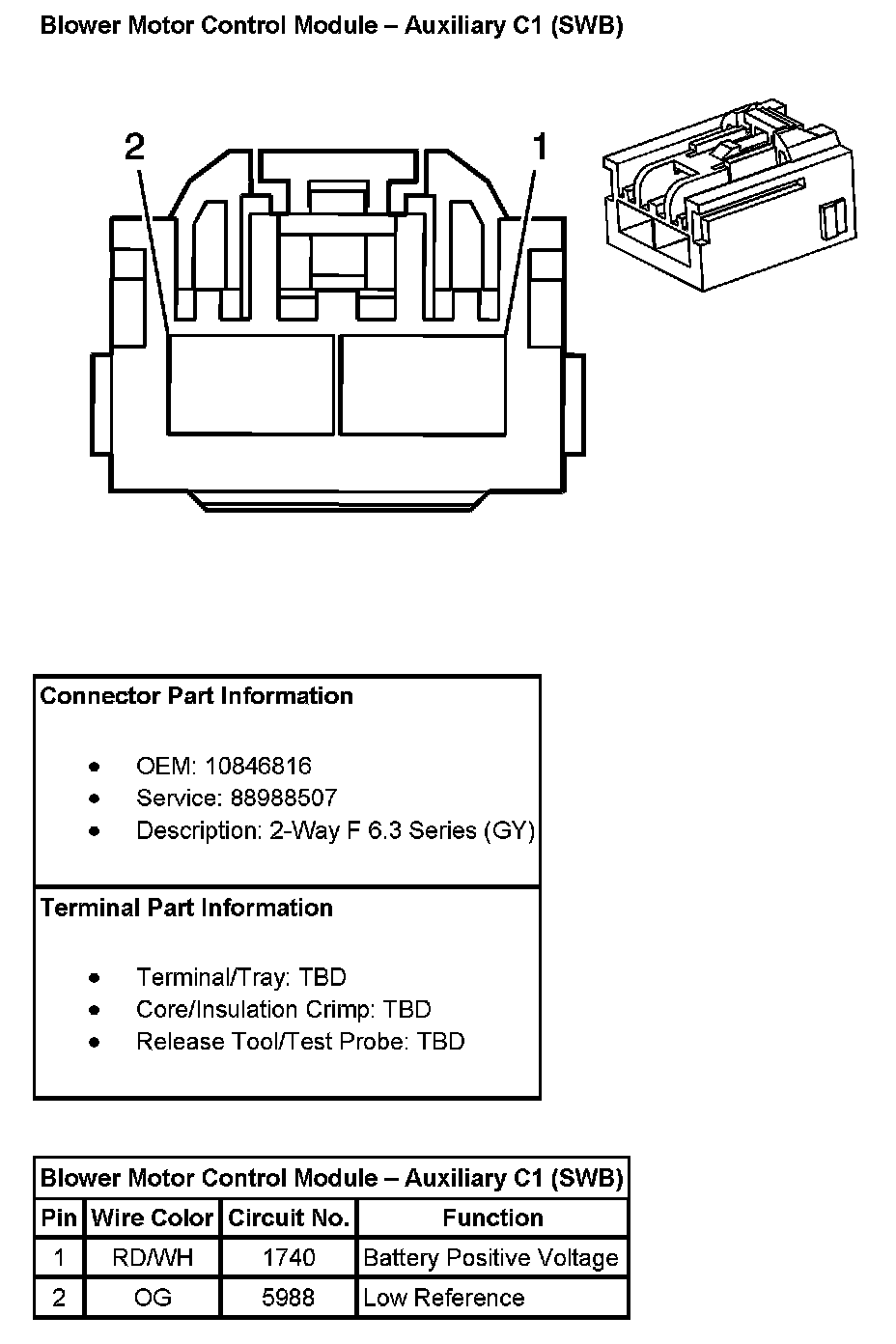

Blower Motor Control Module - Auxiliary C1 (SWB):

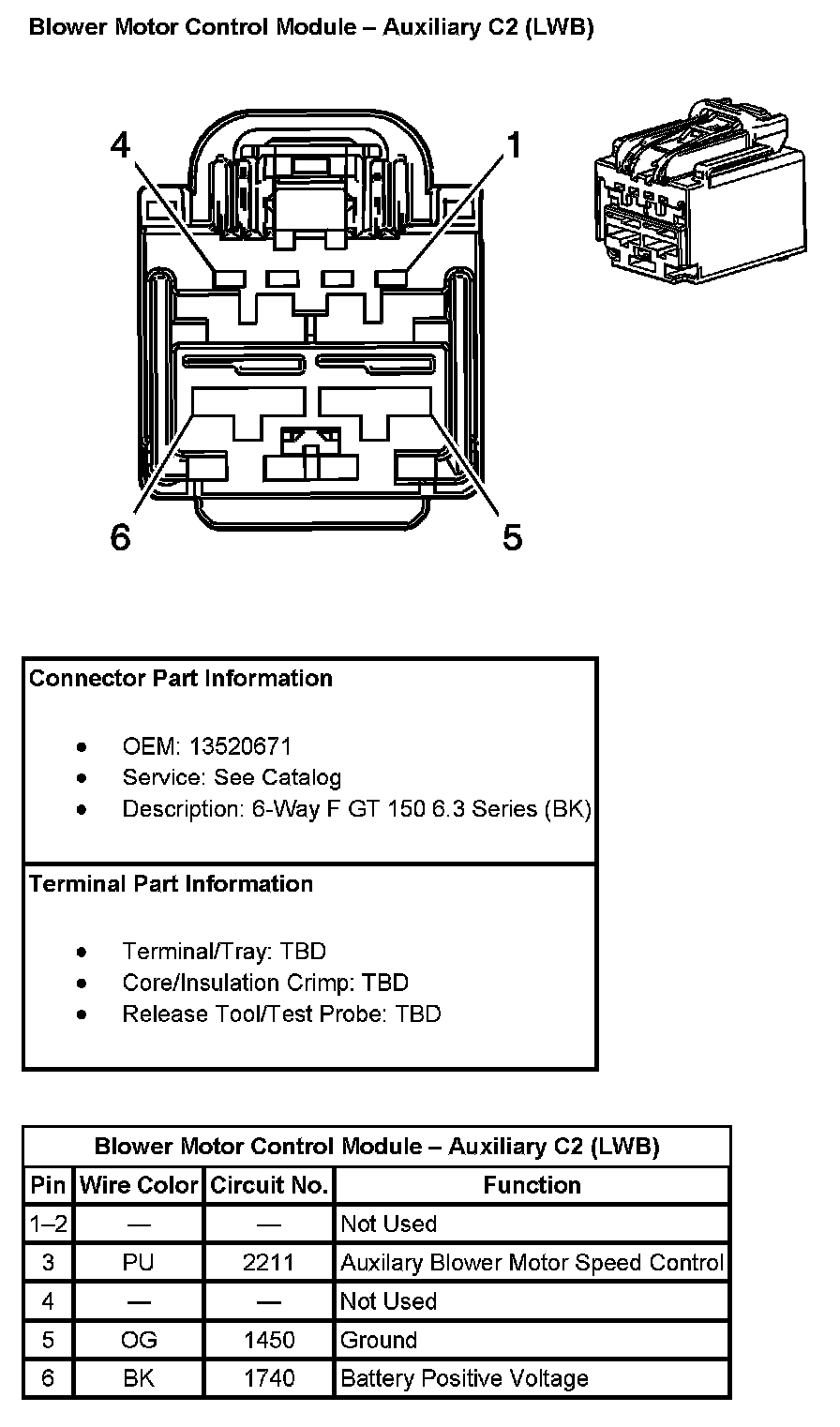

Blower Motor Control Module - Auxiliary C2 (LWB):

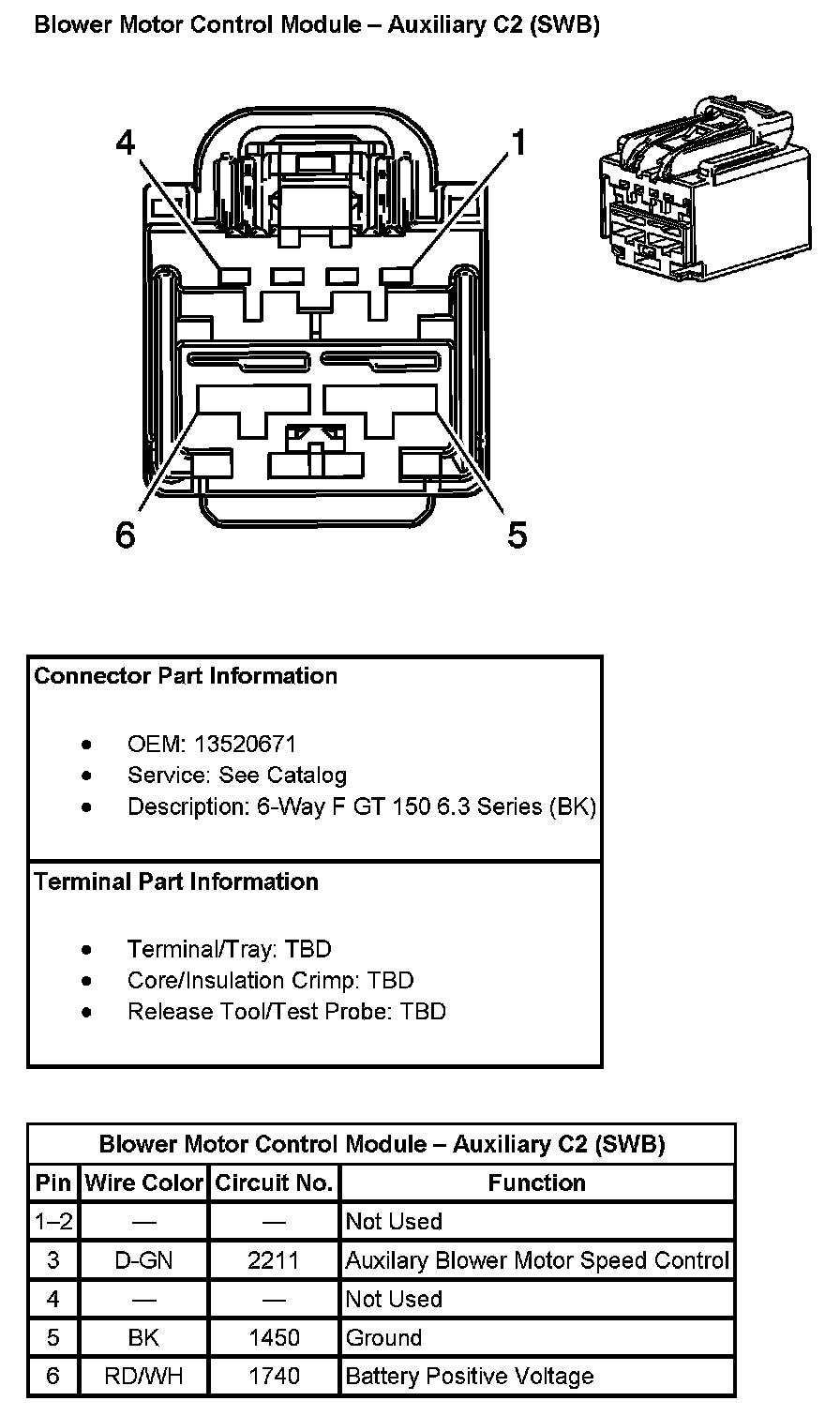

Blower Motor Control Module - Auxiliary C2 (SWB):

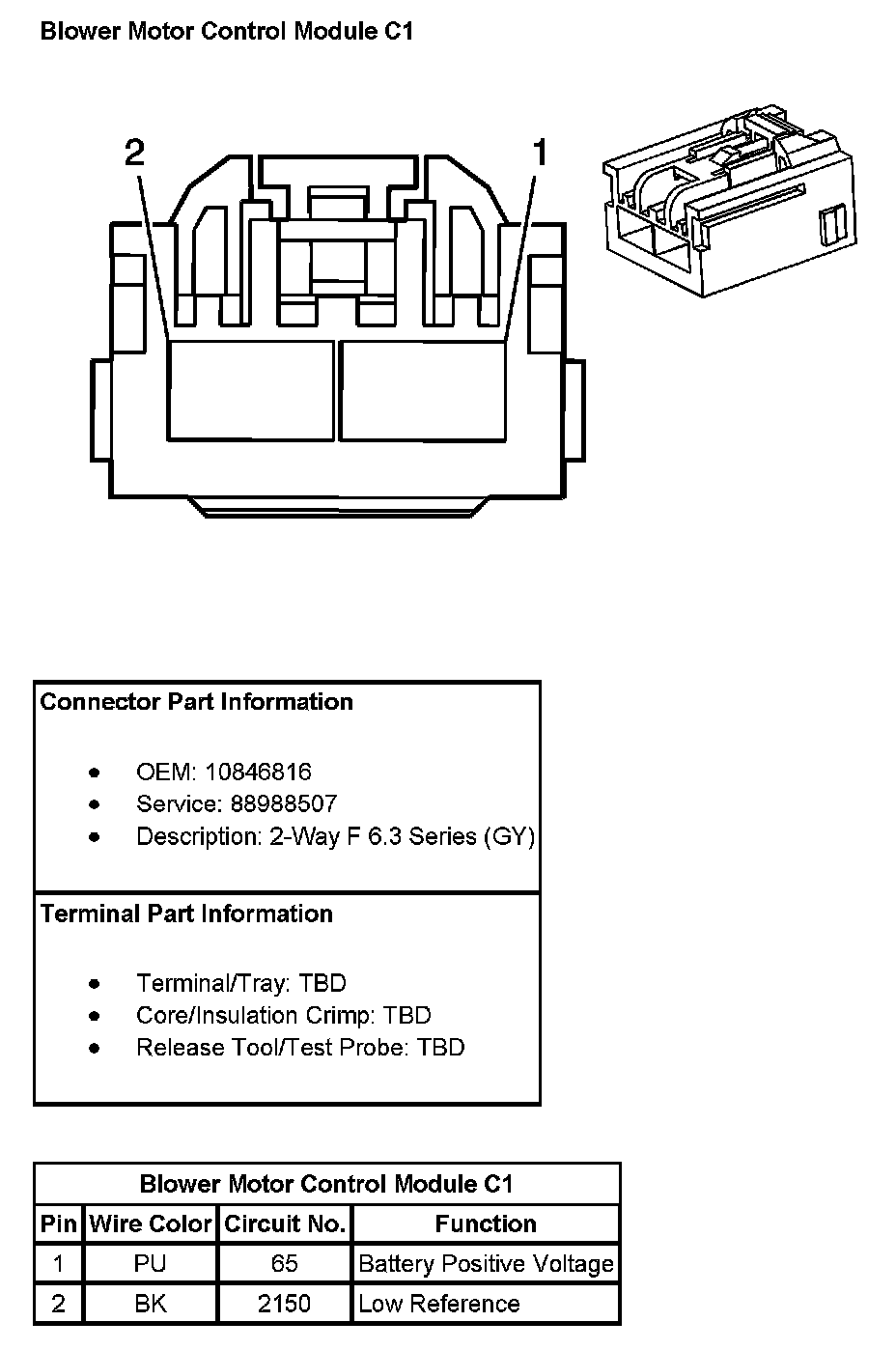

Blower Motor Control Module C1:

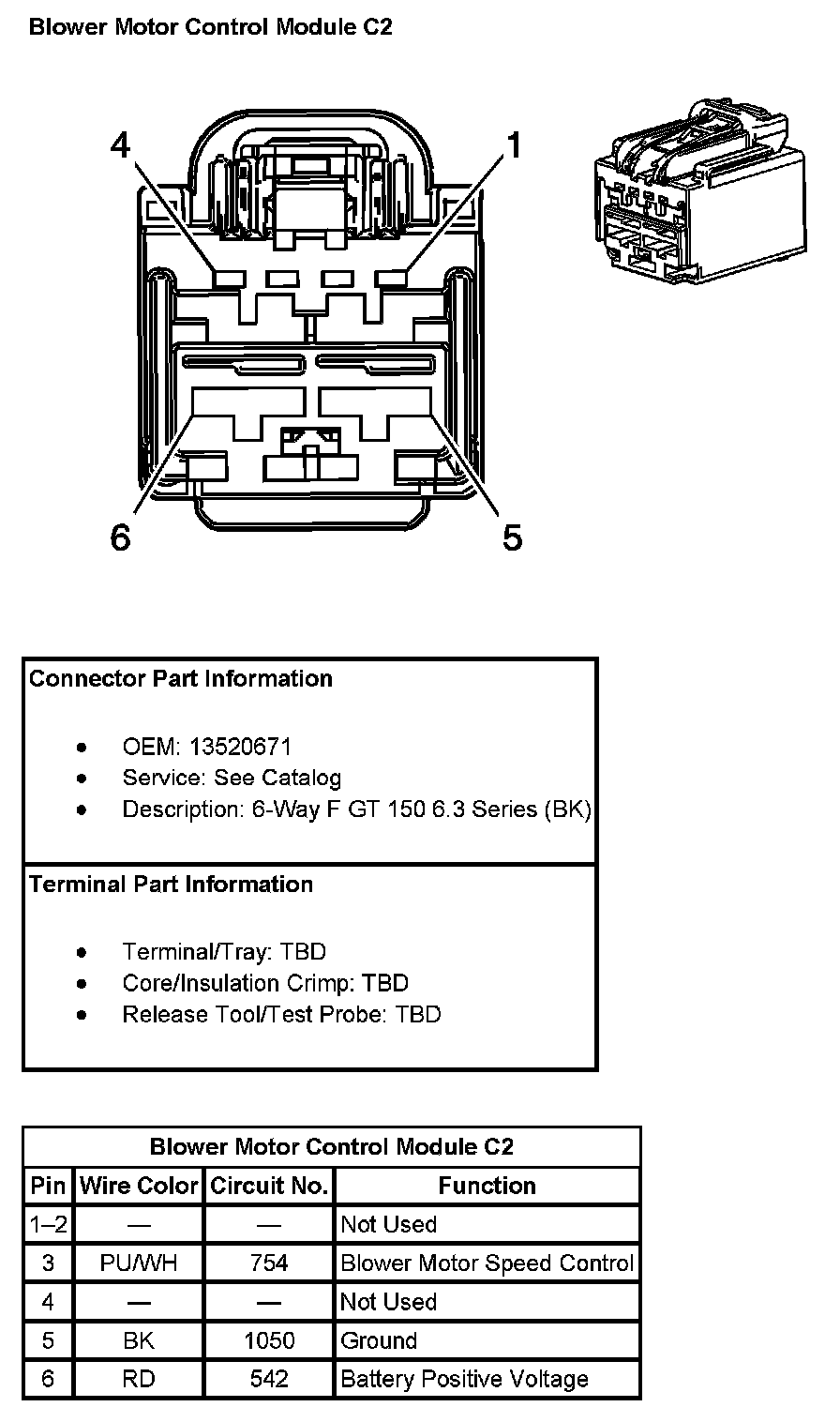

Blower Motor Control Module C2:
