Home >> GMC >> 2007 >> Envoy 4WD L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, Transfer Case >> NVG 126-NP4 - Transfer Case >> Transfer Case Shift Control Module C1

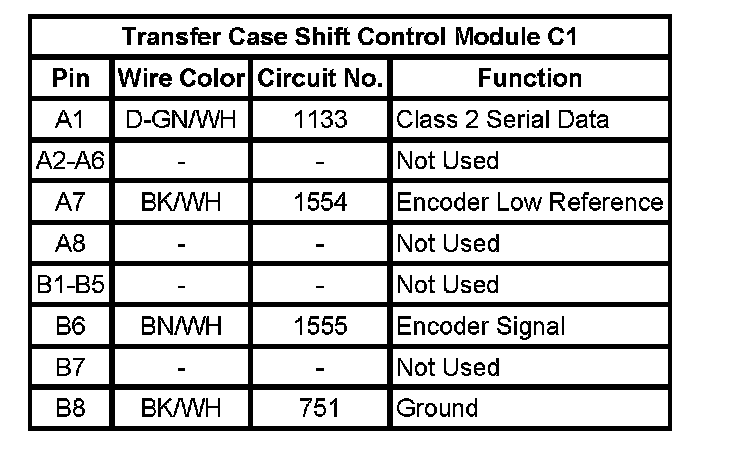

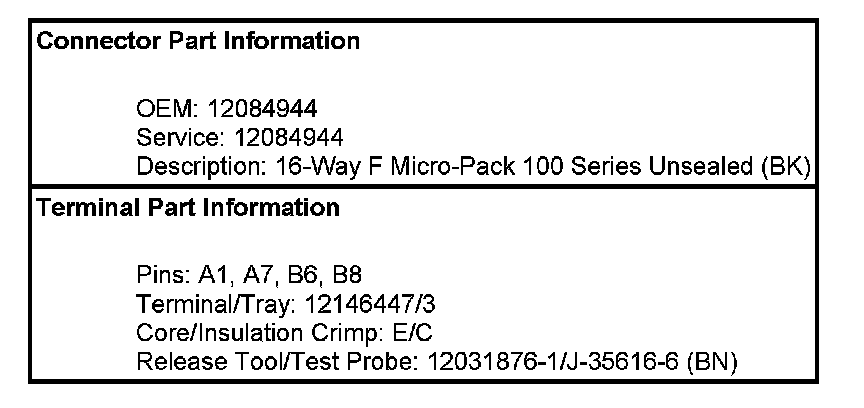

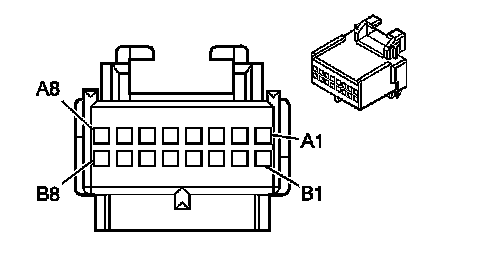

Transfer Case Shift Control Module C1

Transfer Case Shift Control Module C1

Transfer Case Shift Control Module - C1:







Transfer Case Shift Control Module C1:
