Control Assembly: Locations

HVAC Component Views

Lower Console




1 - Lower Console
2 - HVAC Control Module - Auxiliary
3 - Auxiliary Power Outlet - Console
4 - Console Mode Actuator - Auxiliary
5 - C309
6 - C307

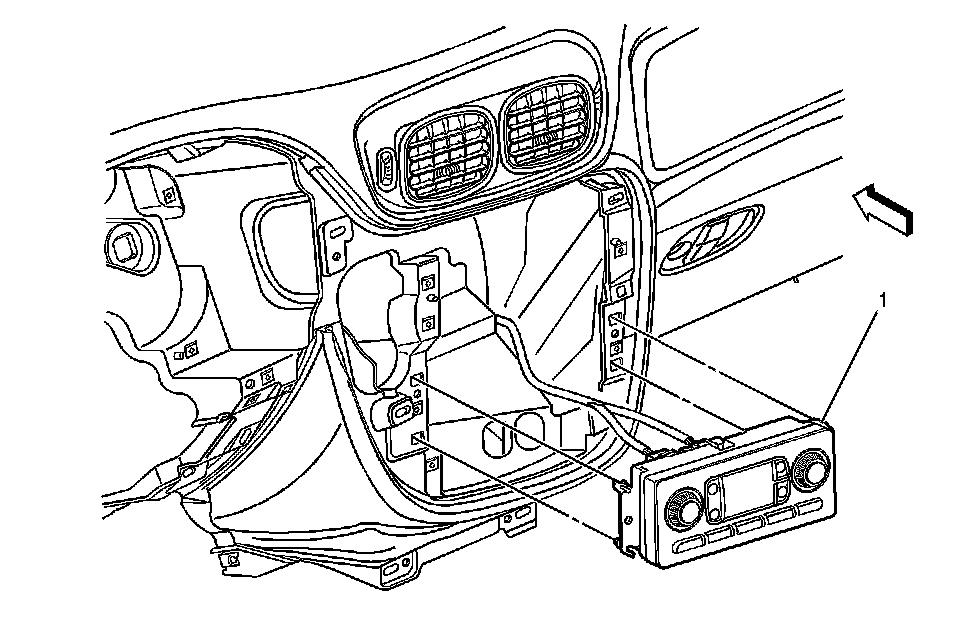

Instrument Panel, Center




1 - HVAC Control Module
