lemon-mirror
:
Home
>>
GMC
>>
2007
>>
Envoy 2WD L6-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
Transmission Control Systems

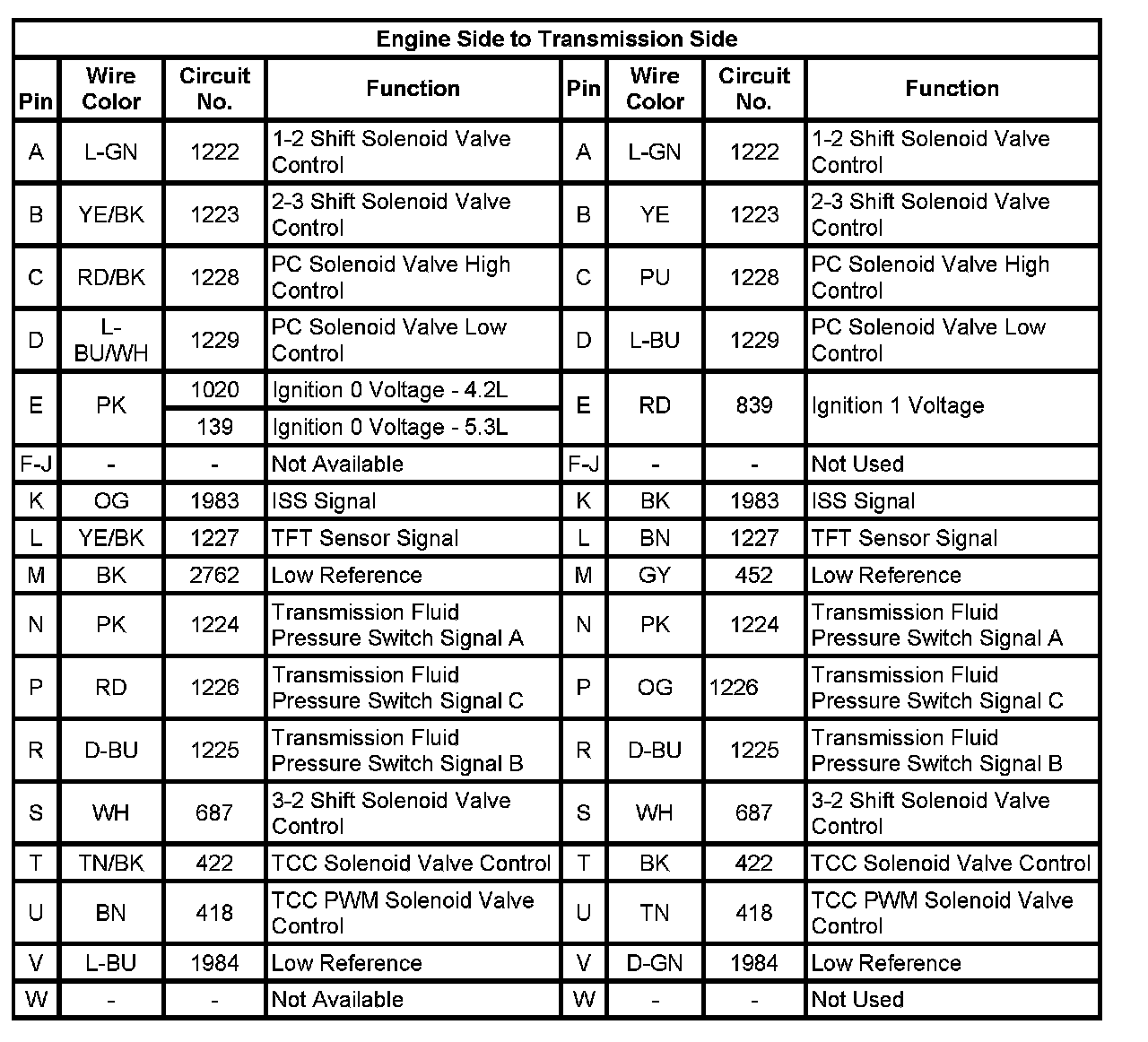

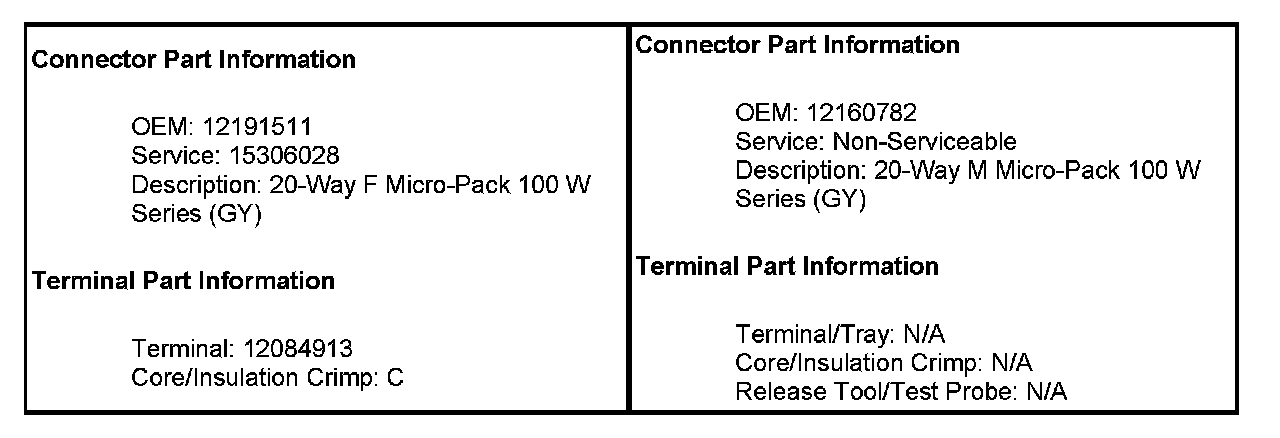

Engine Side to Transmission Side
Engine Side to Transmission Side:
