Home >> GMC >> 2007 >> Envoy 2WD L6-4.2L >> Repair and Diagnosis >> Diagrams >> Components

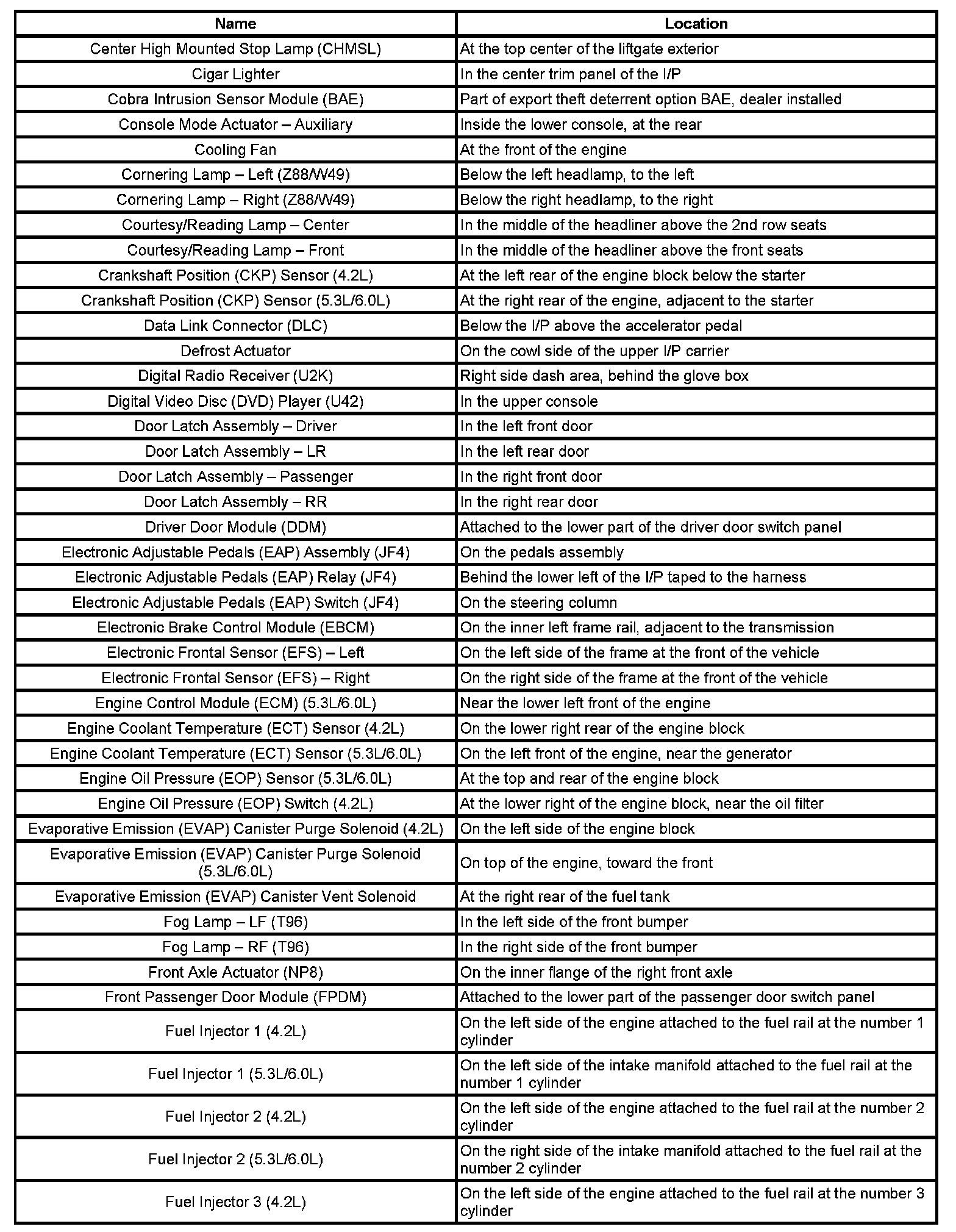

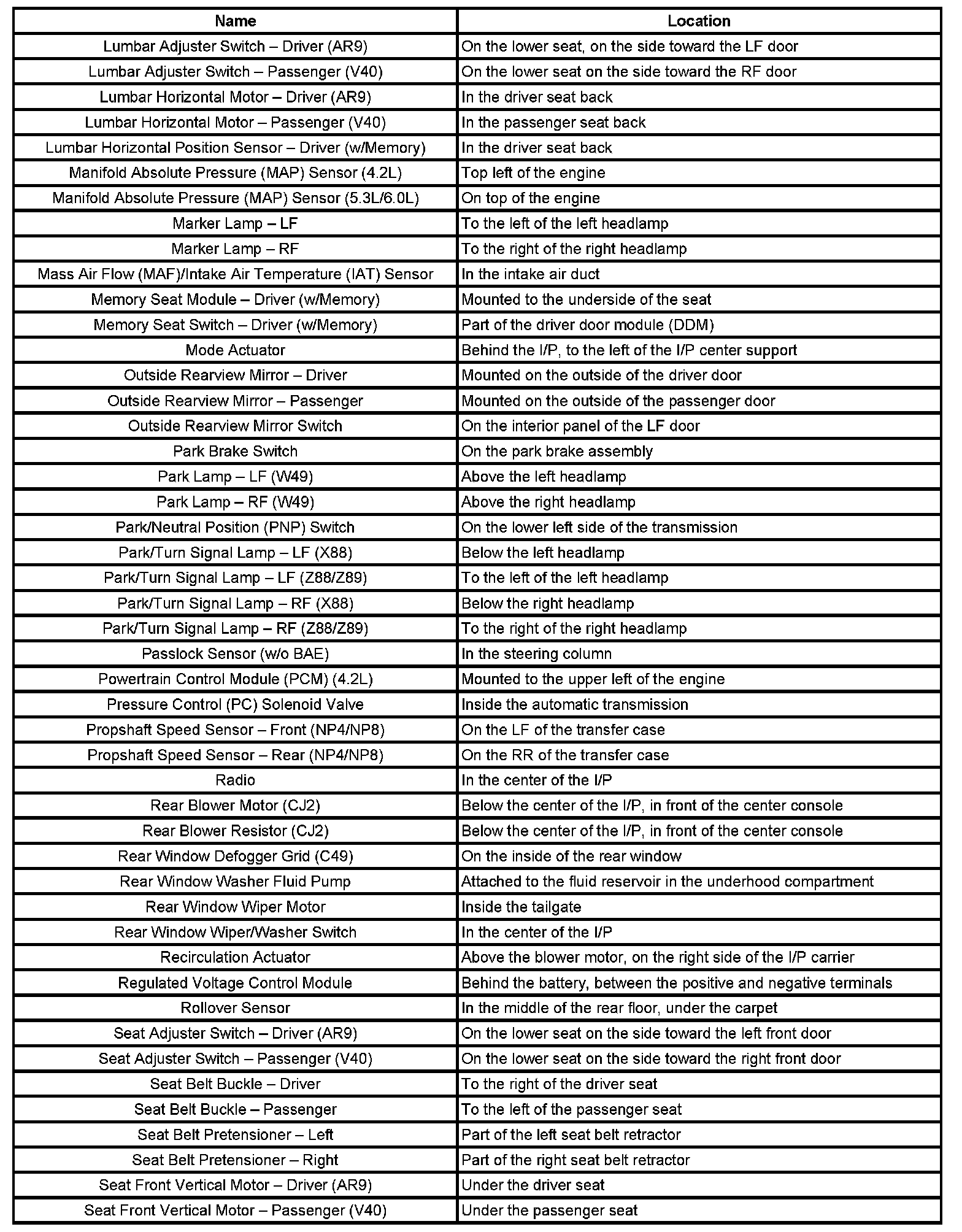

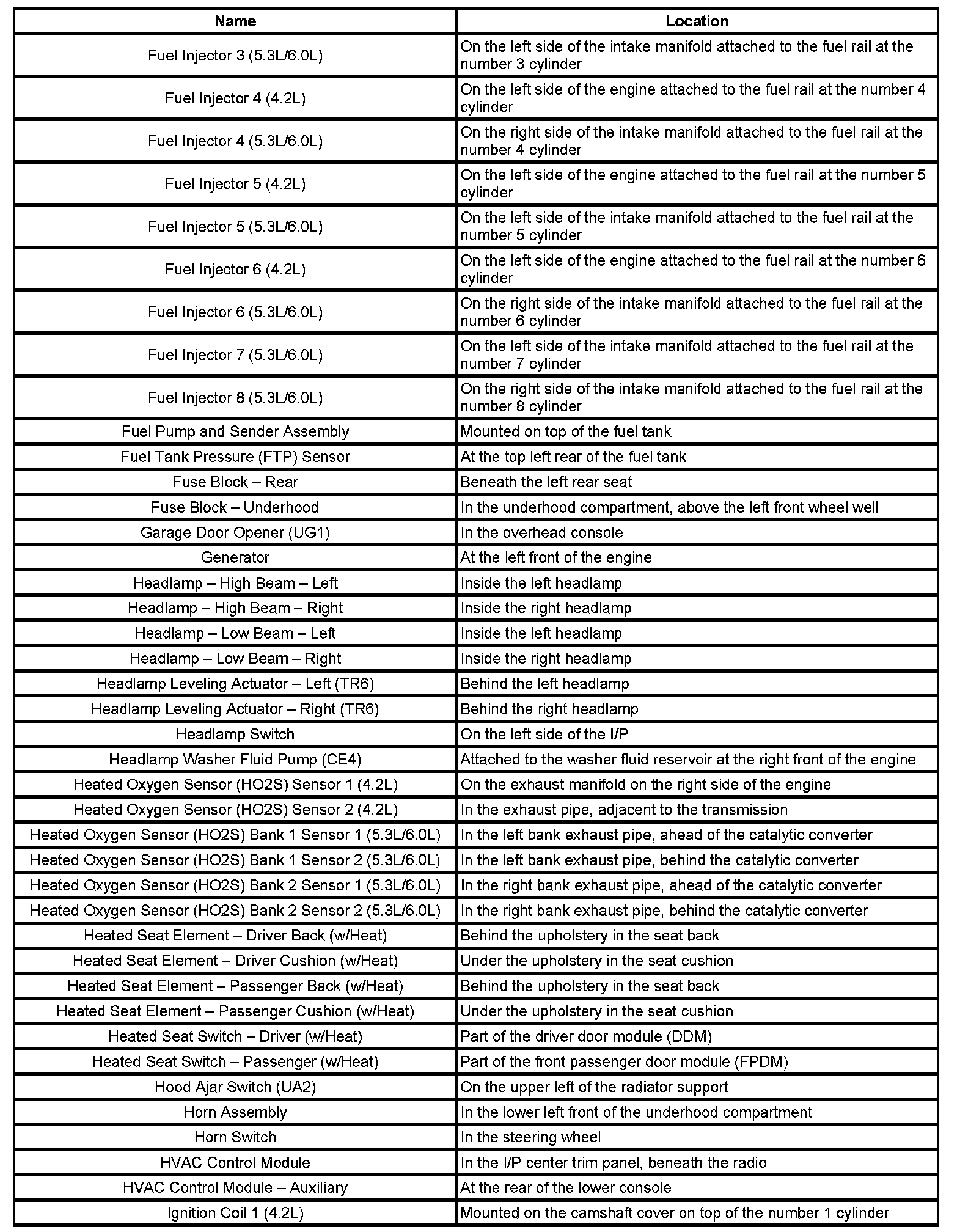

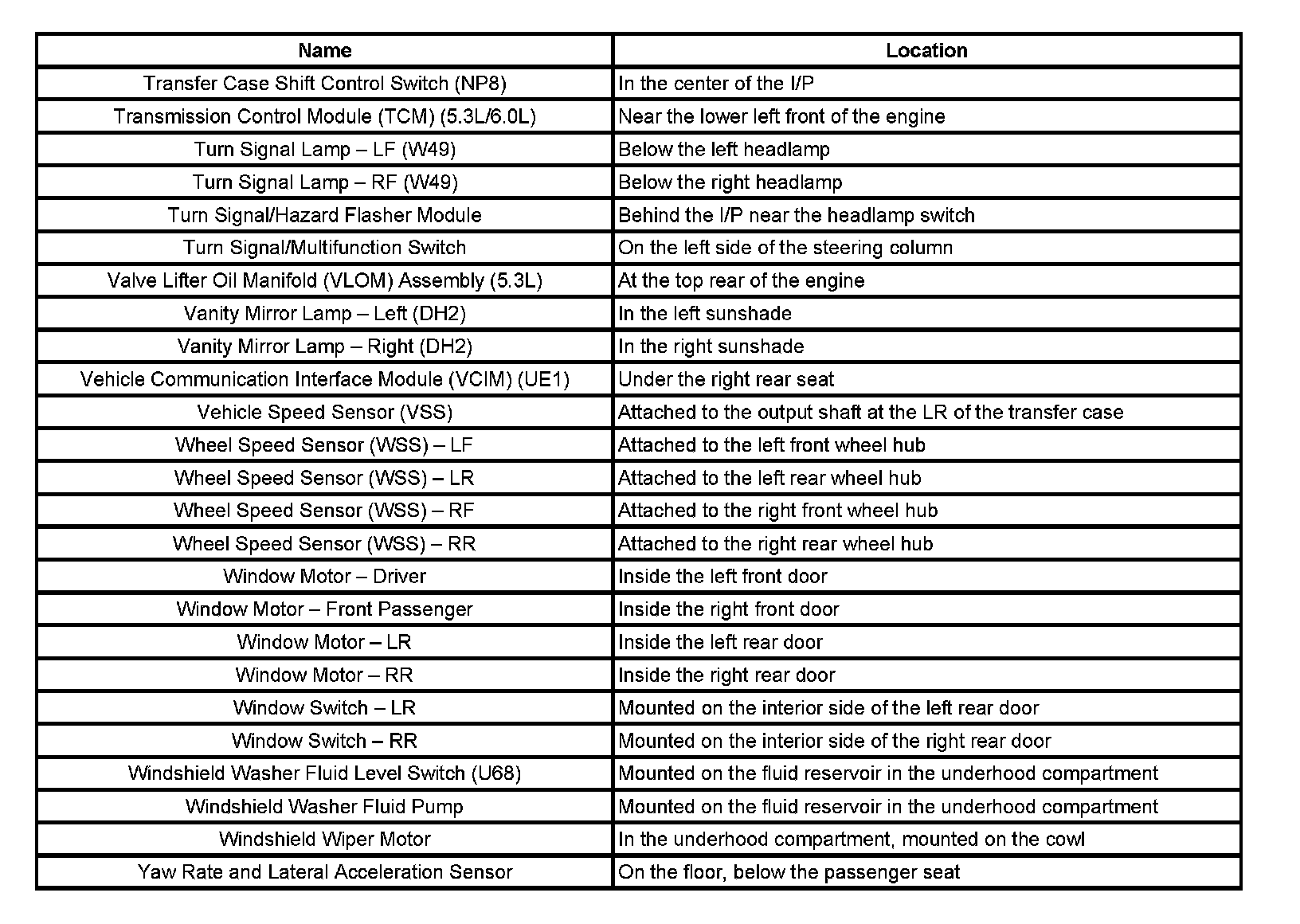

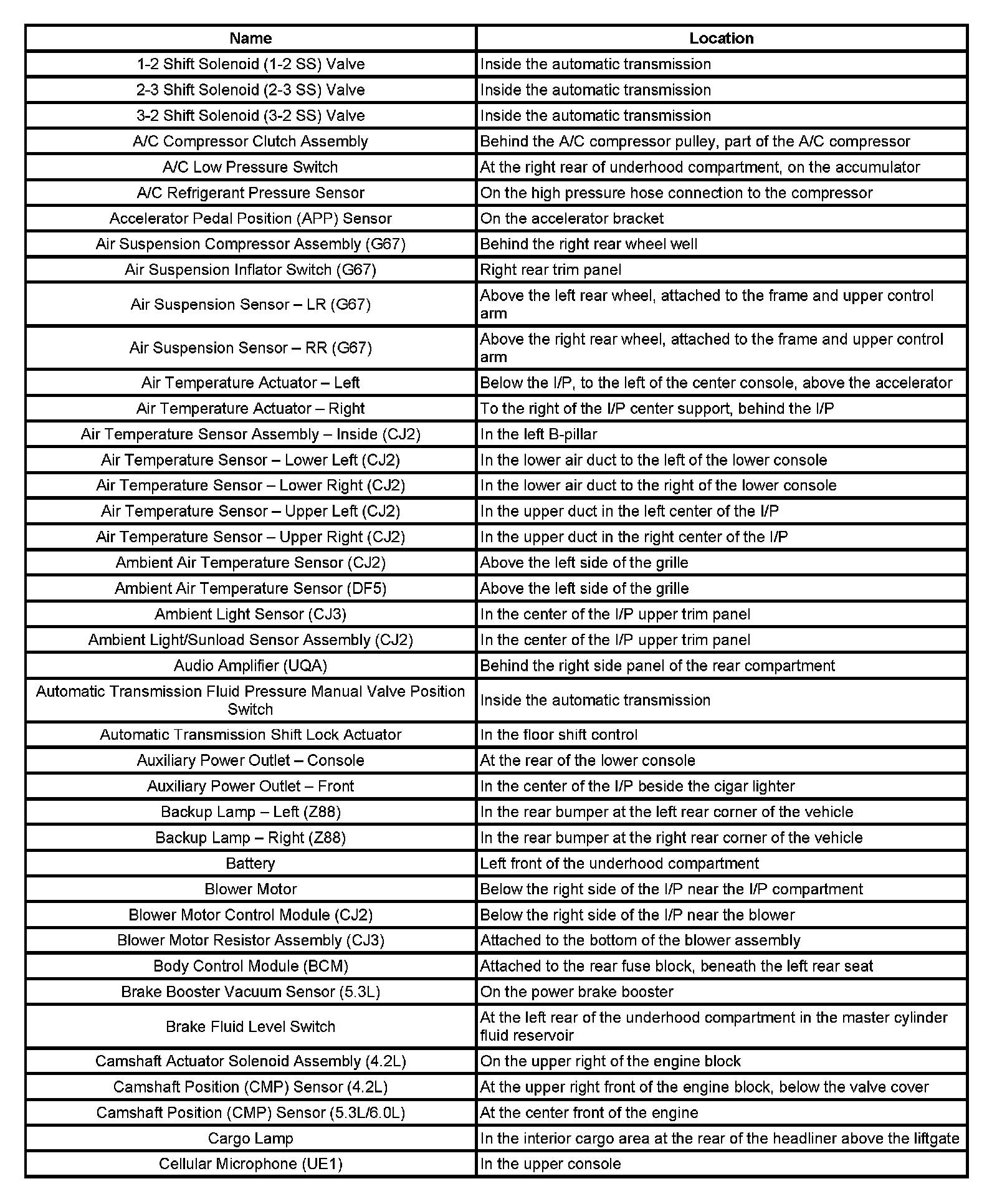

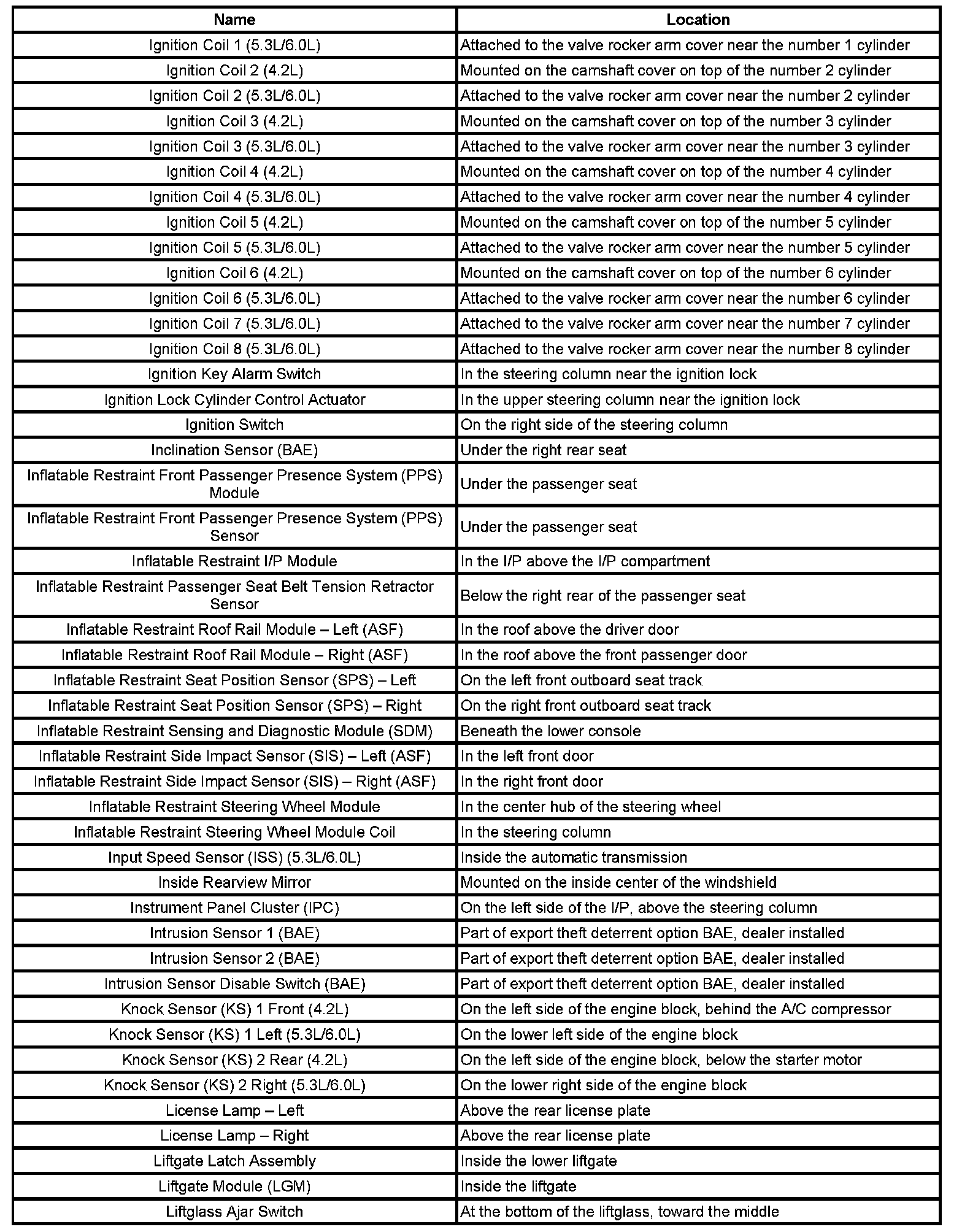

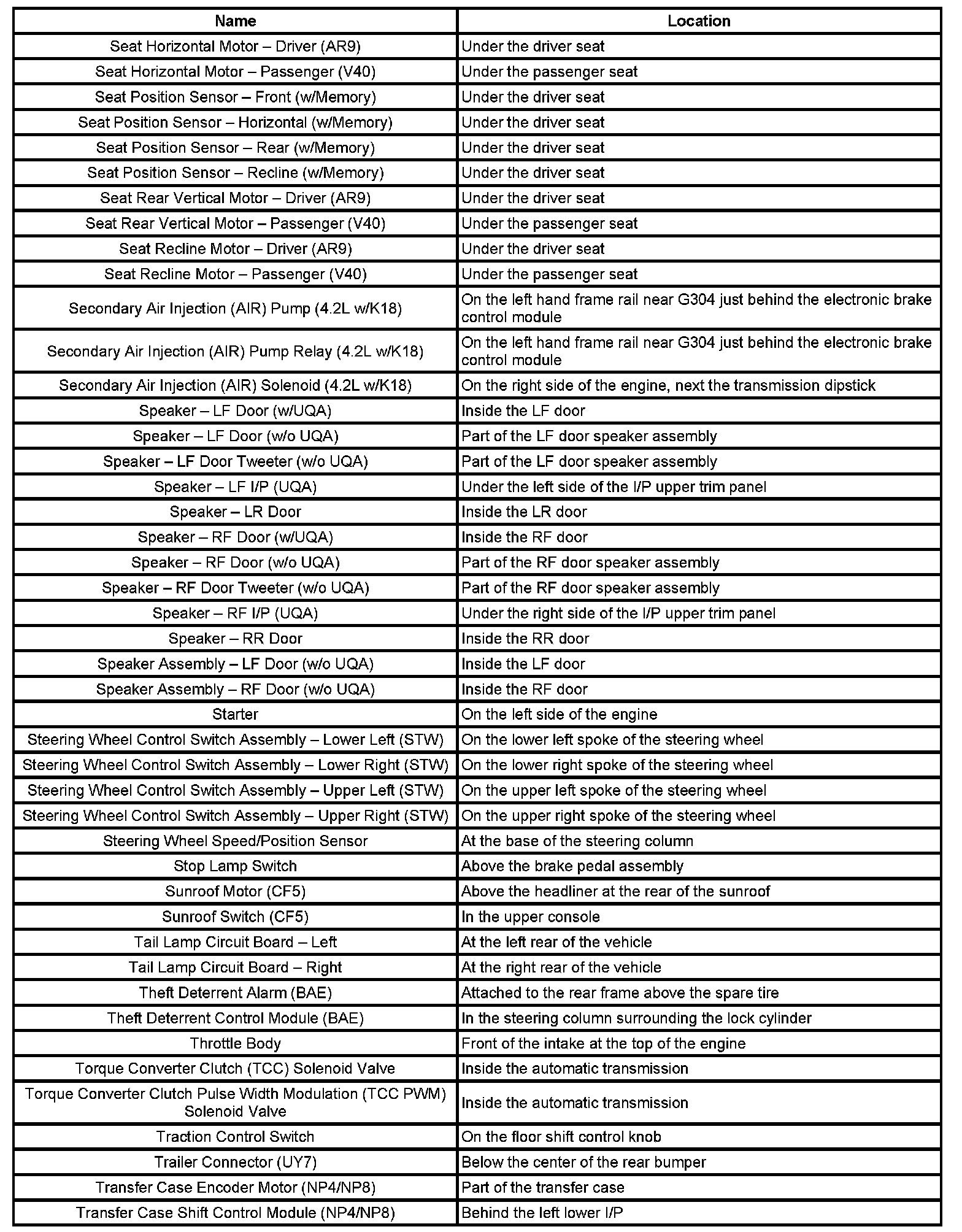

Components



1-2 Sh - Ce:




Ce - Fu:




Fu - Ig:




Ig - Li:




Lu - Se:




Se - Tr:




Tr - Ya:
