Data Link Connector: Diagrams

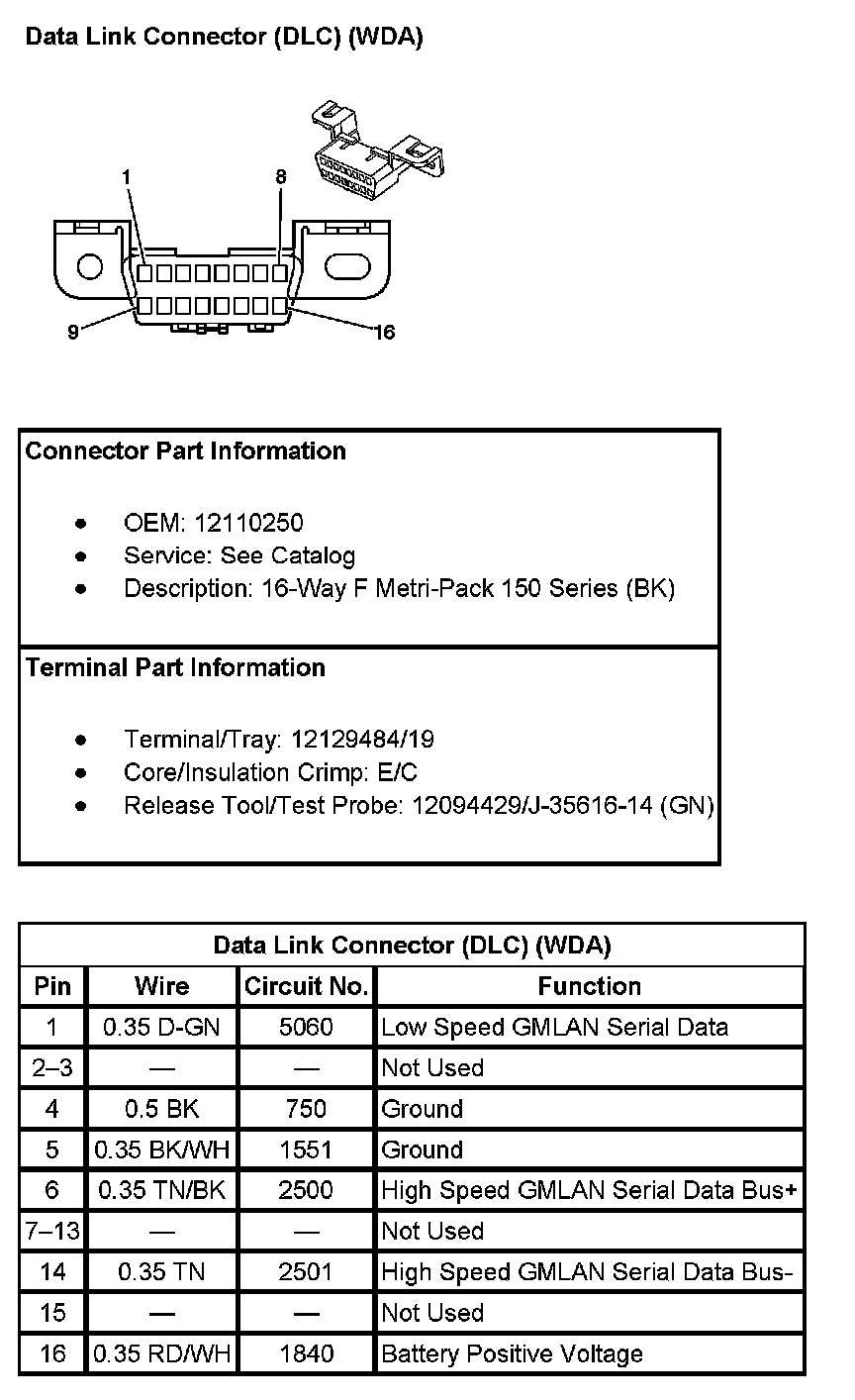

Data Link Connector (DLC) (With RPO Code WDA) Pin 1 To 16:

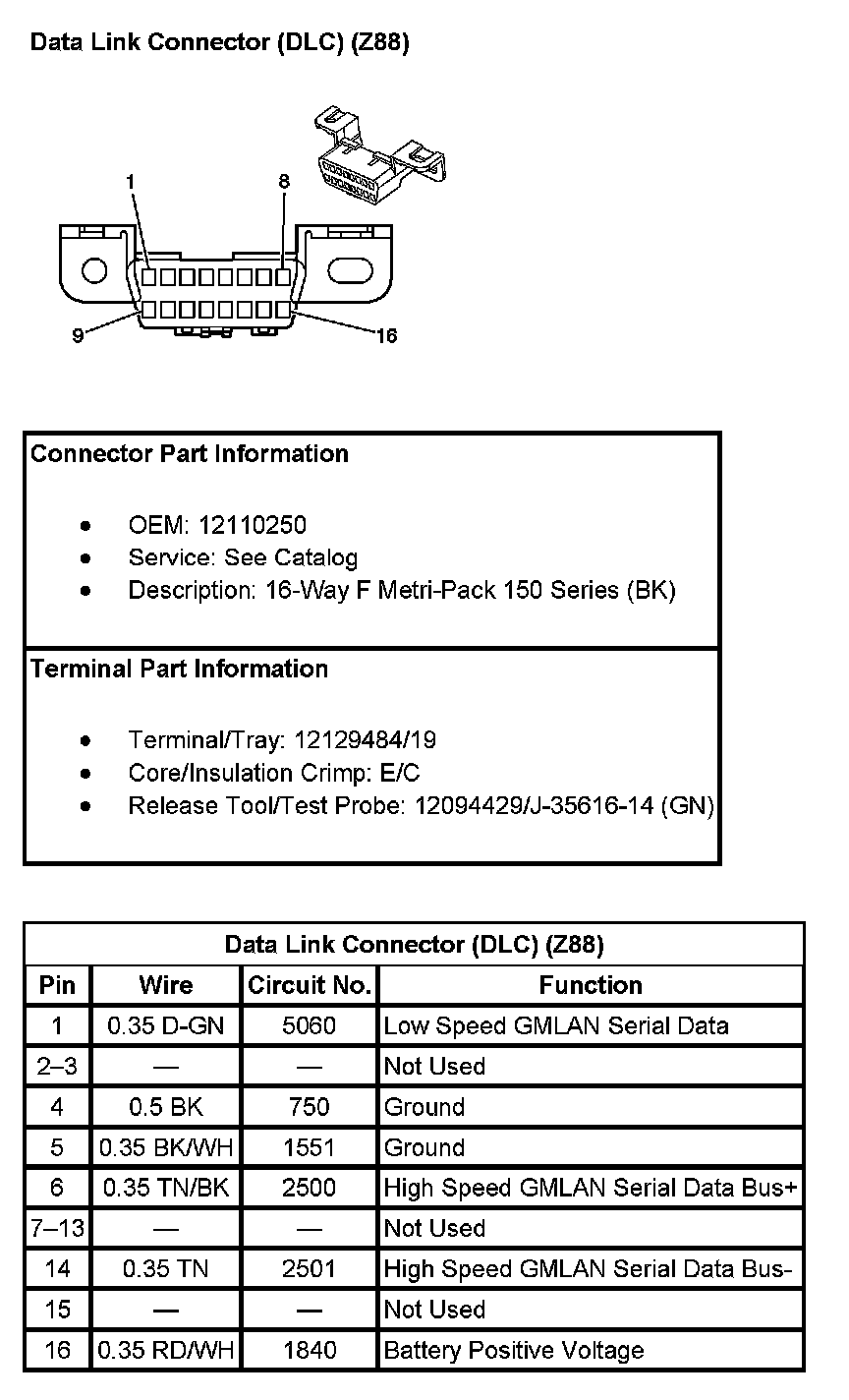

Data Link Connector (DLC) (With RPO Code Z88):
