Body Control Module (BCM) X4 (With RPO Code WDA)

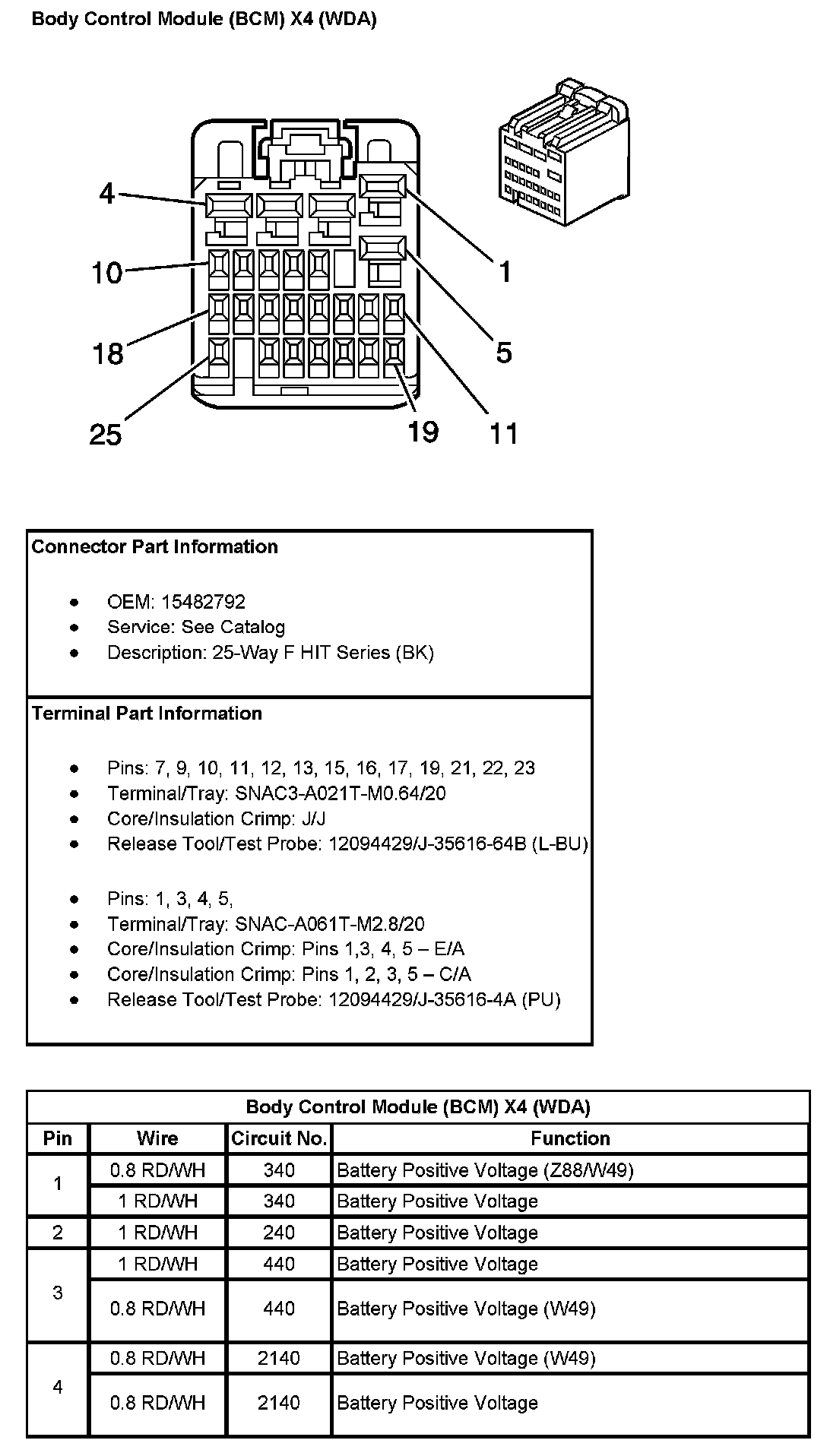

Body Control Module (BCM) X4 (With RPO Code WDA) Pin 1 To 4:

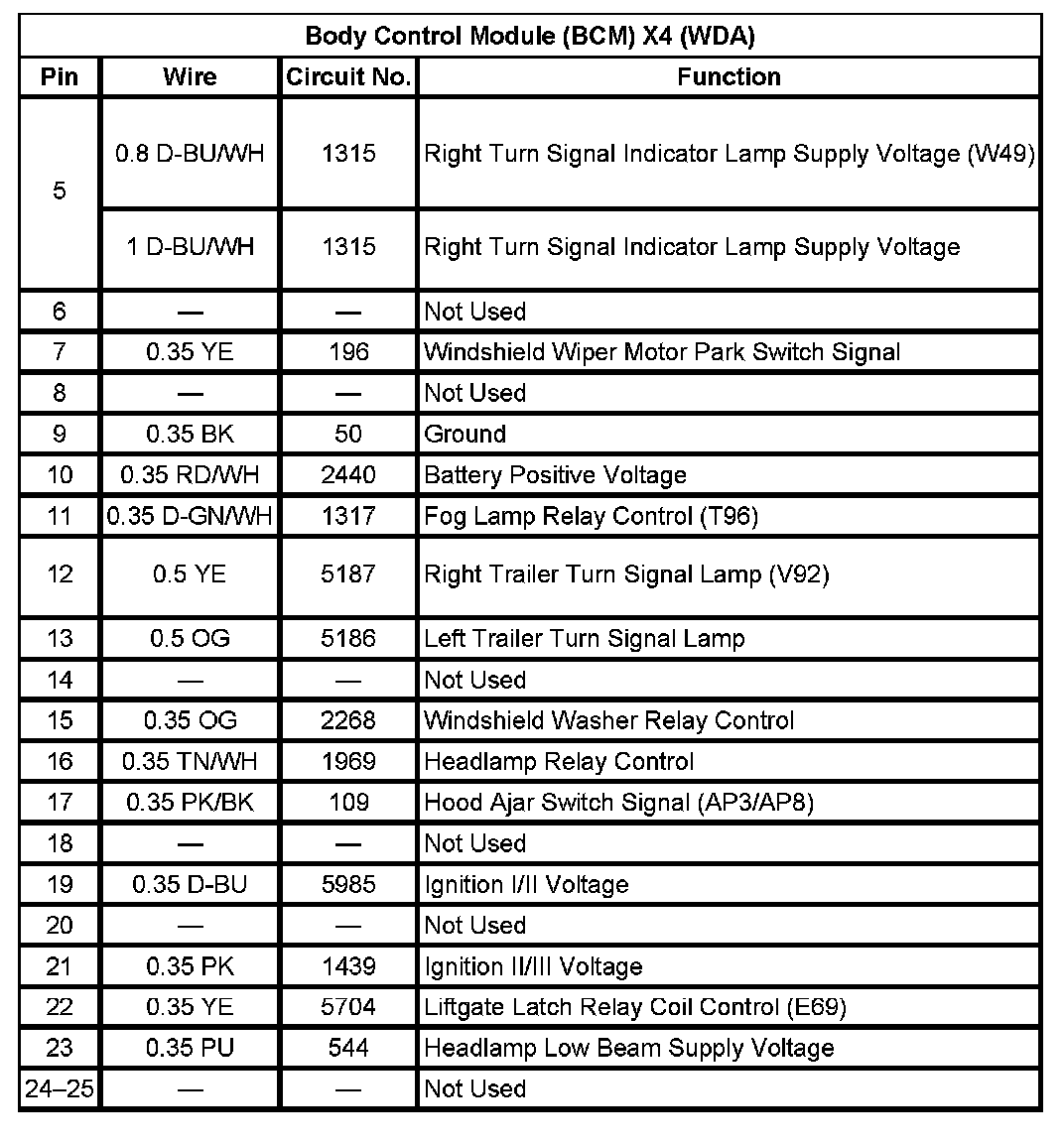

Body Control Module (BCM) X4 (With RPO Code WDA) Pin 5 To 25:
