Body Control Module (BCM) X3 (With RPO Code WDA)

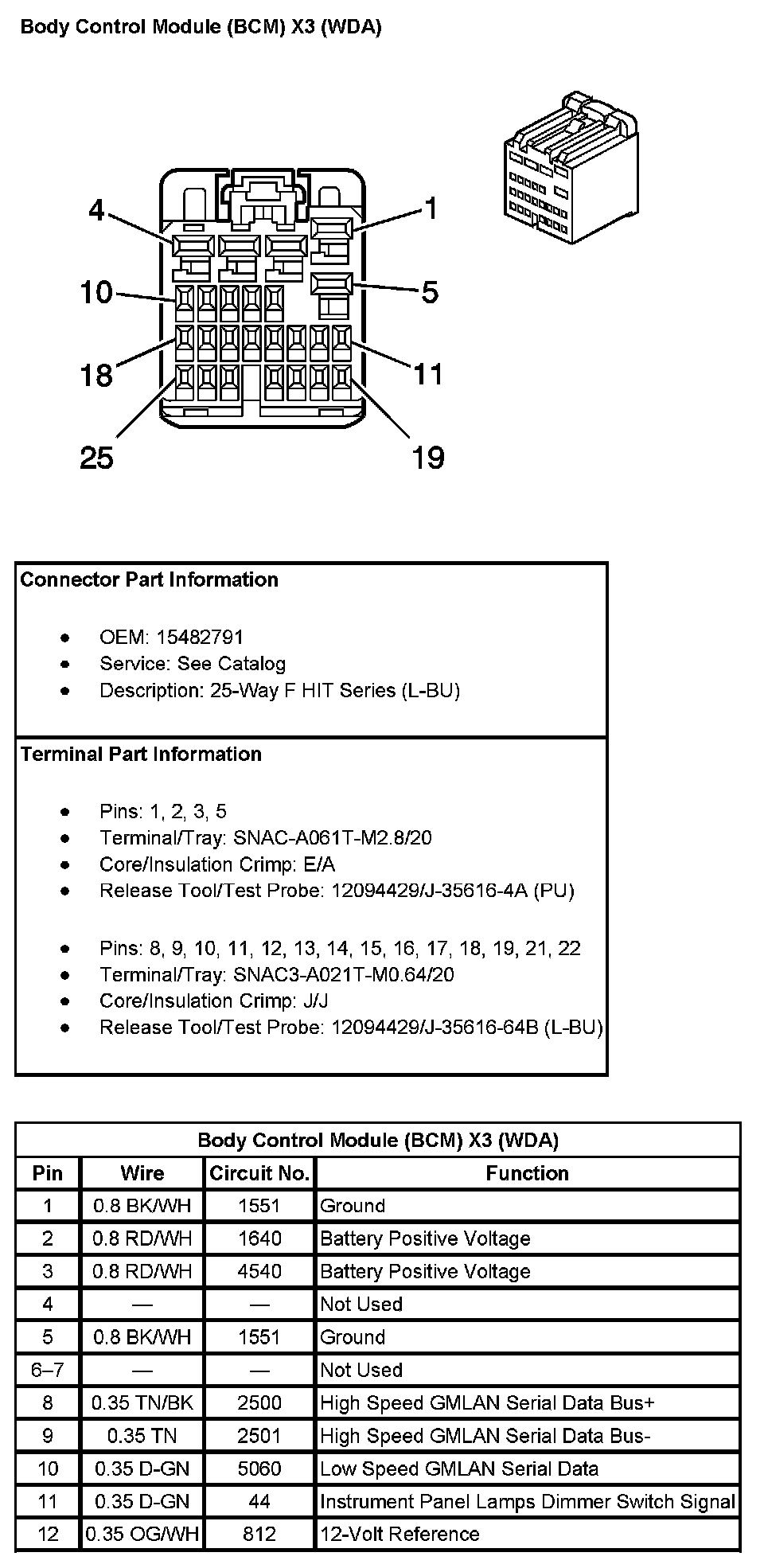

Body Control Module (BCM) X3 (With RPO Code WDA) Pin 1 To 12:

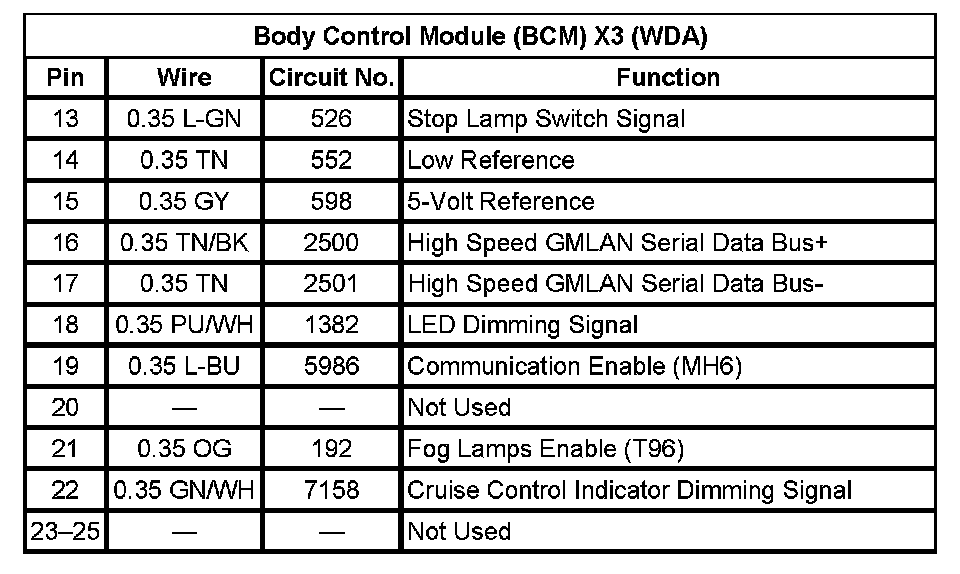

Body Control Module (BCM) X3 (With RPO Code WDA) Pin 13 To 25:
