Battery Current Sensor: Diagrams

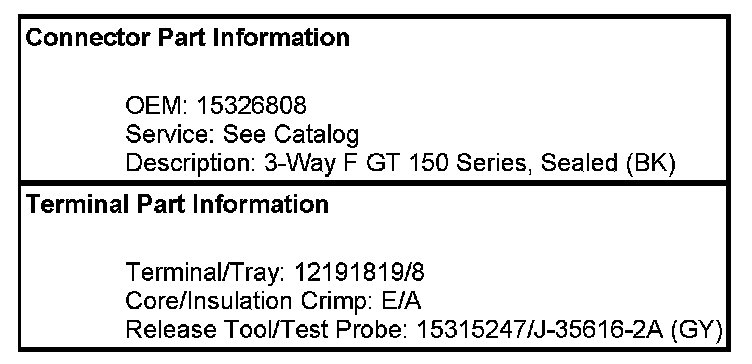

Starting and Charging Connector End Views

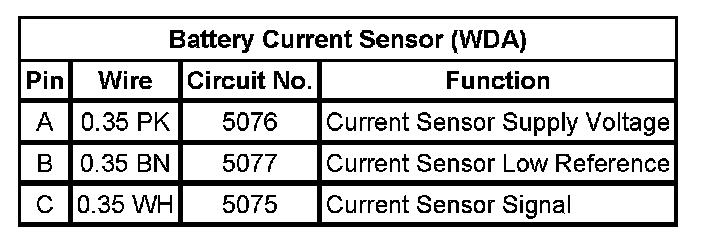

Battery Current Sensor (WDA)

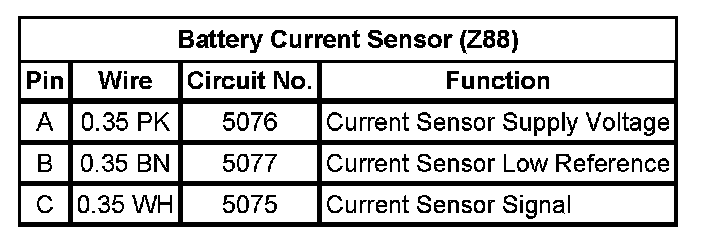

Battery Current Sensor (Z88)
