Home >> GMC >> 2007 >> Acadia FWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Windshield Washer Control Module

Windshield Washer Control Module

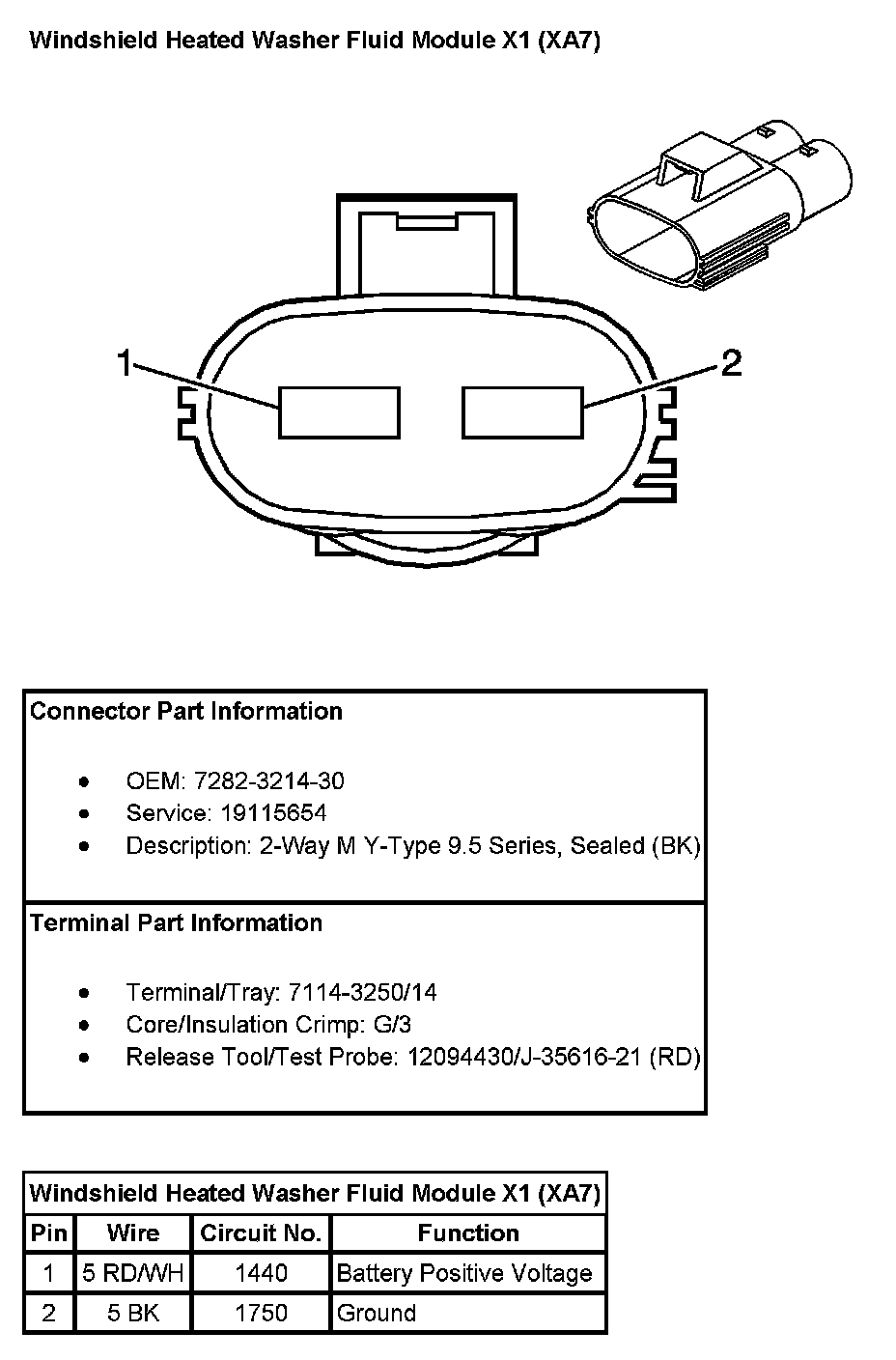

Windshield Heated Washer Fluid Module X1 (With RPO Code XA7):

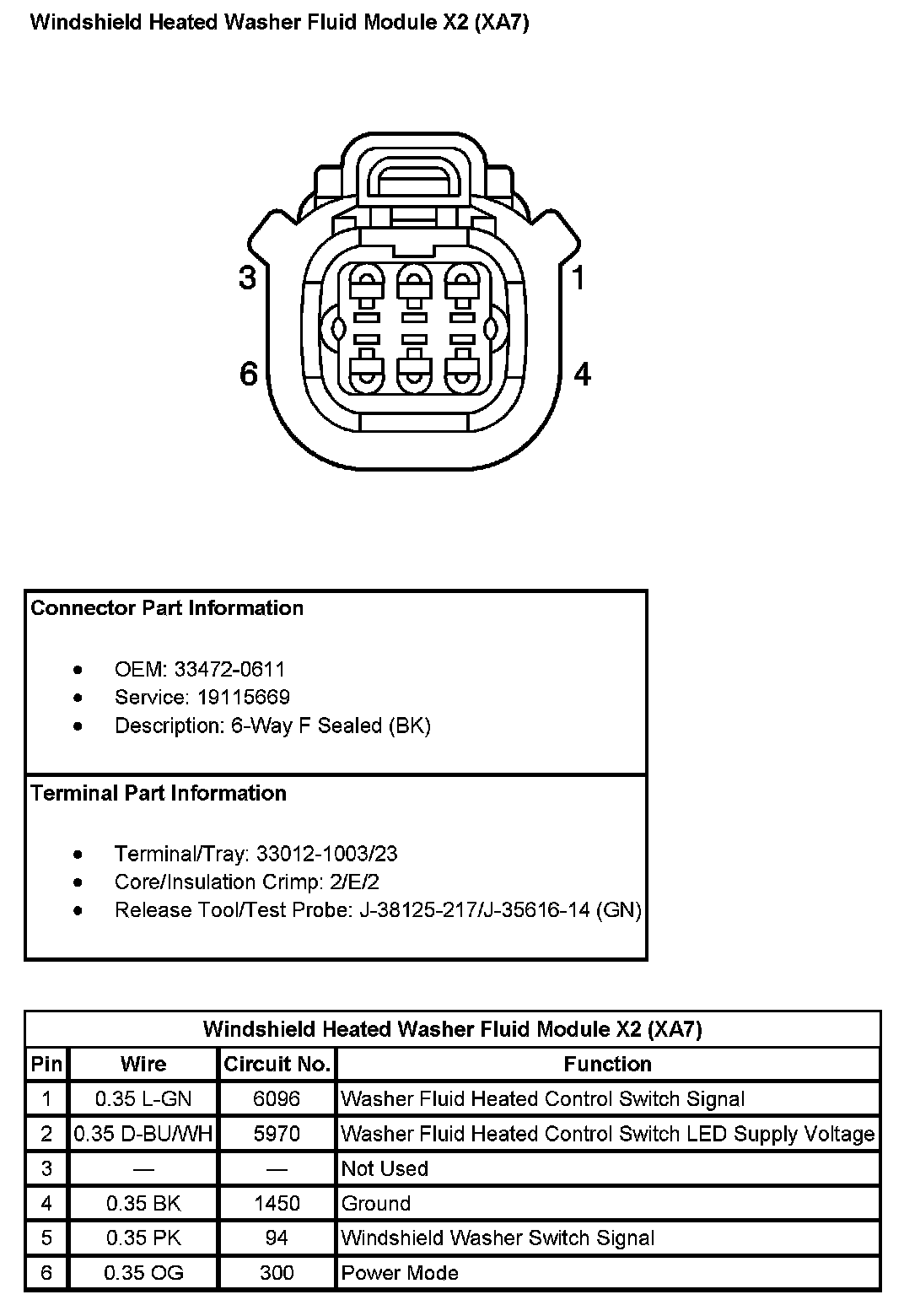

Windshield Heated Washer Fluid Module X2 (With RPO Code XA7):
