GMC
>>
2007
>>
Acadia FWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Variable Induction Control Valve
Variable Induction Control Valve

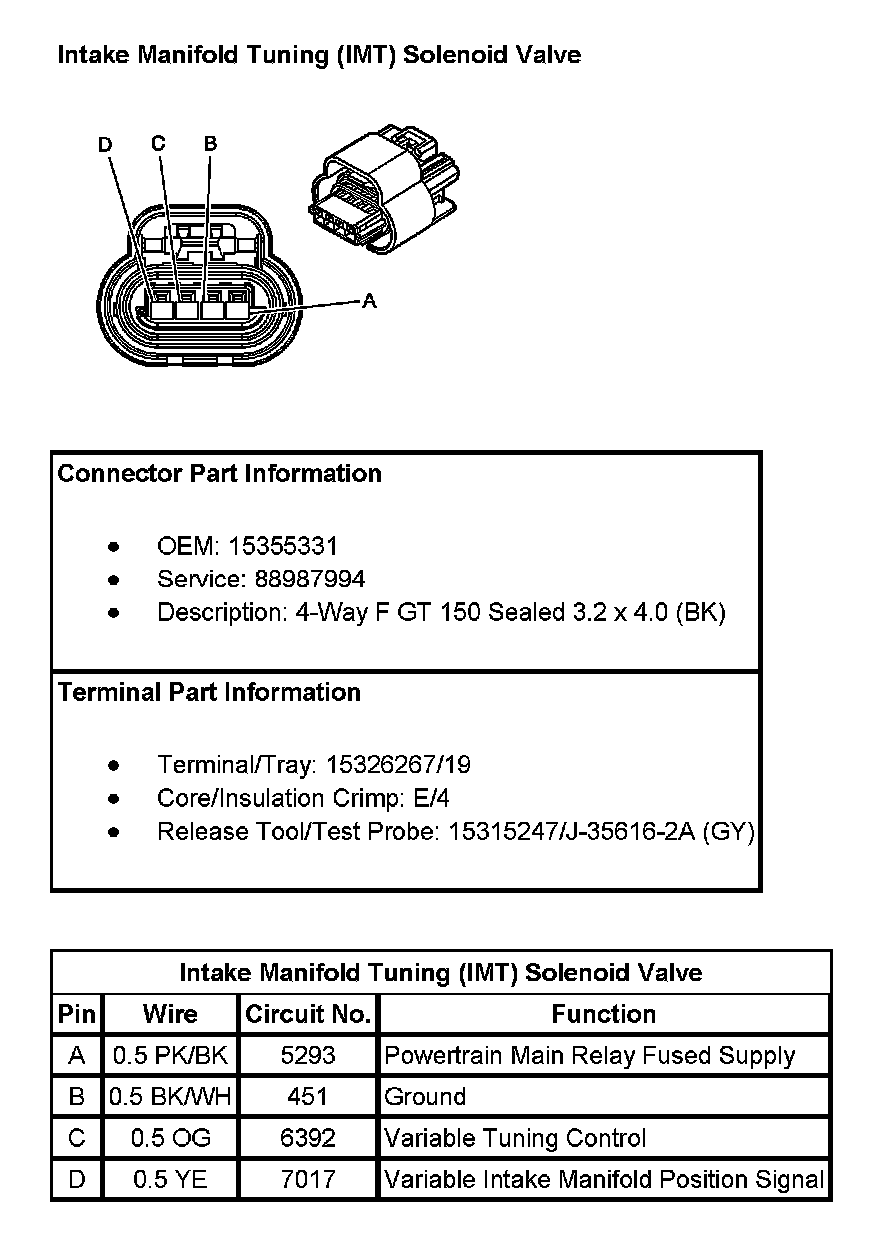

Intake Manifold Tuning (IMT) Solenoid Valve:
