Home >> GMC >> 2007 >> Acadia FWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Heated Seat Control Module - Driver X2

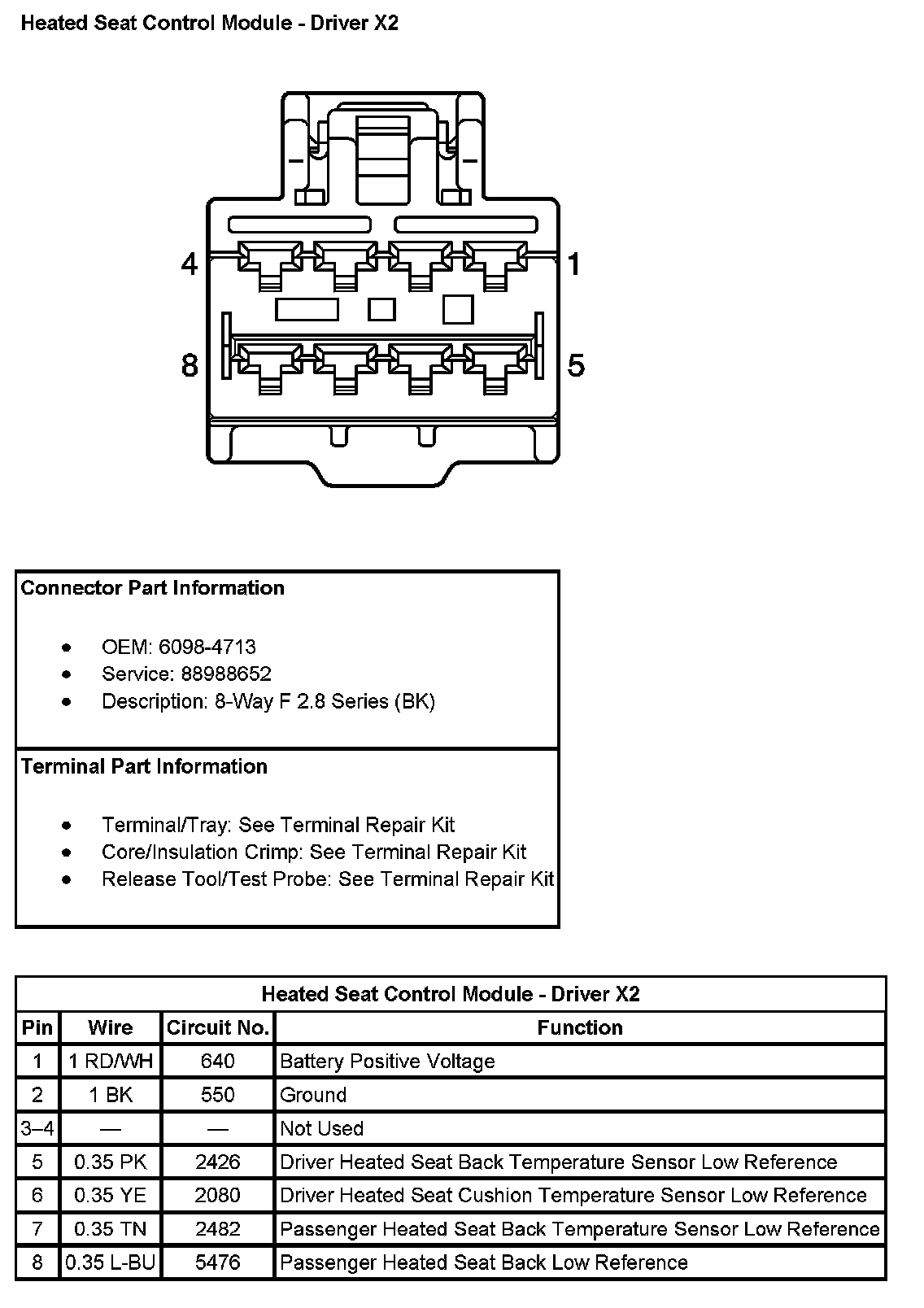

Heated Seat Control Module - Driver X2

Heated Seat Control Module - Driver X2:
