Home >> GMC >> 2007 >> Acadia FWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Trunk / Liftgate Control Module

Power Trunk / Liftgate Control Module

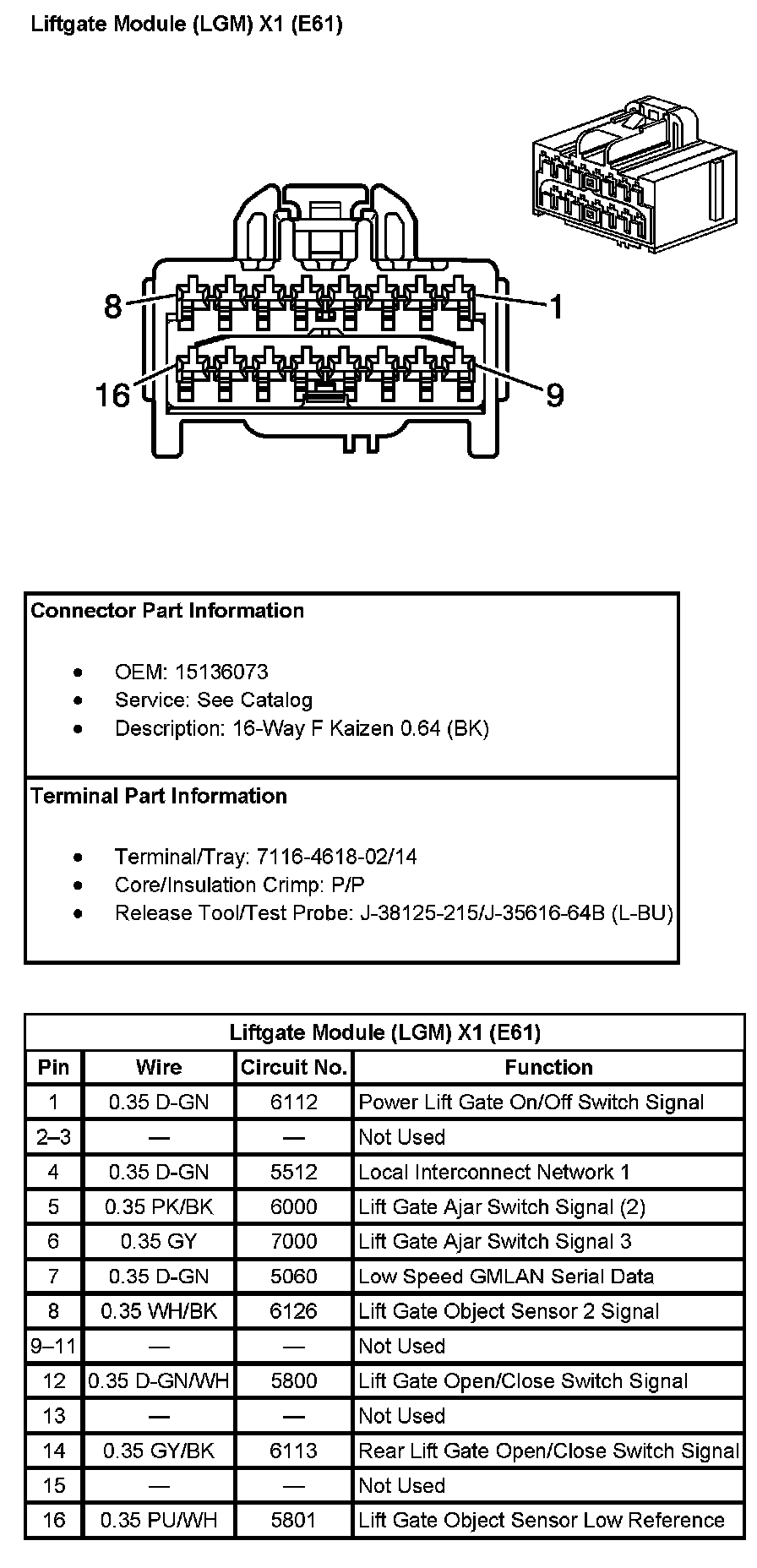

Liftgate Module (LGM) X1 (With RPO Code E61) Pin 1 To 16:

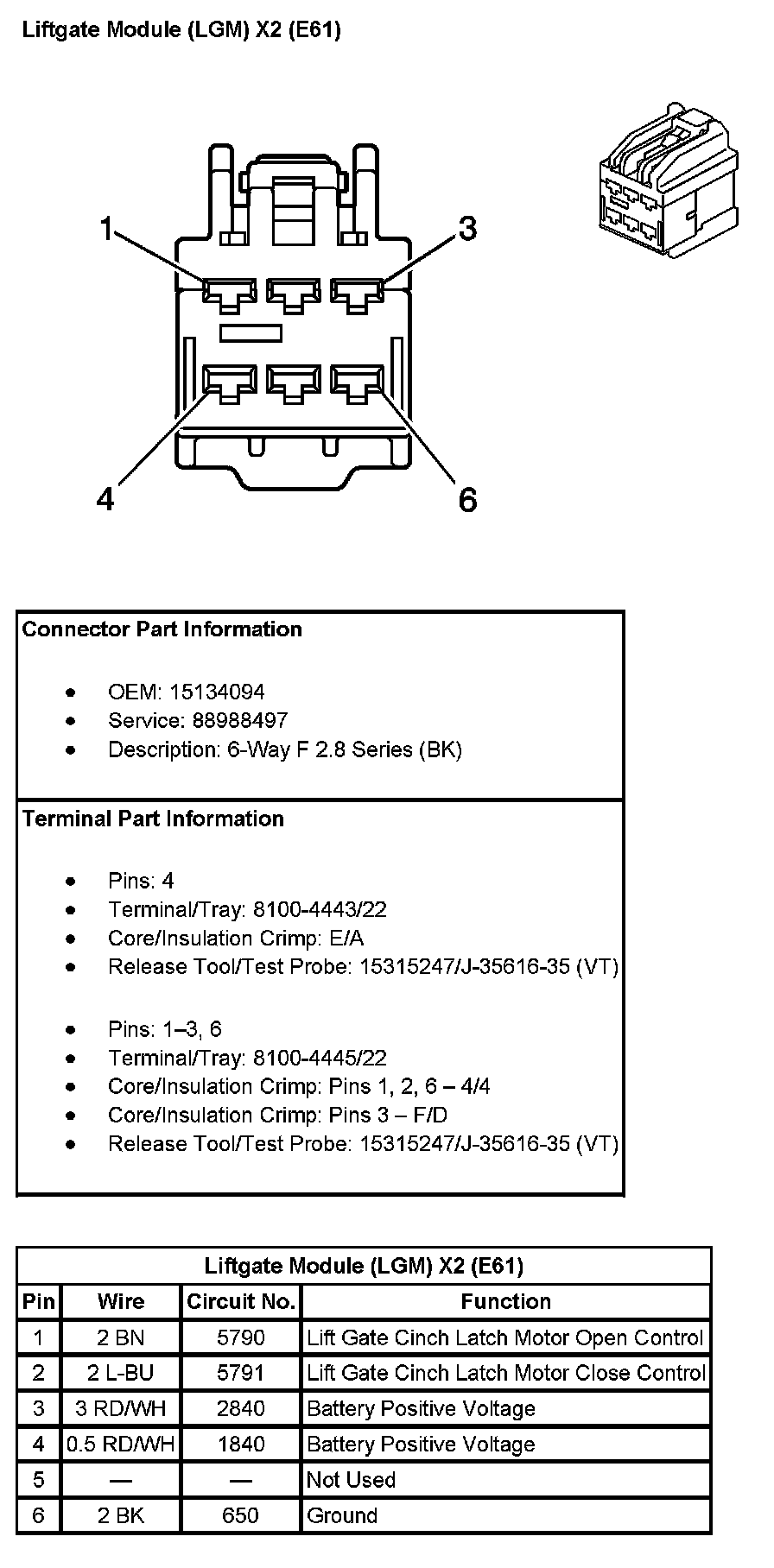

Liftgate Module (LGM) X2 (With RPO Code E61) Pin 1 To 6:

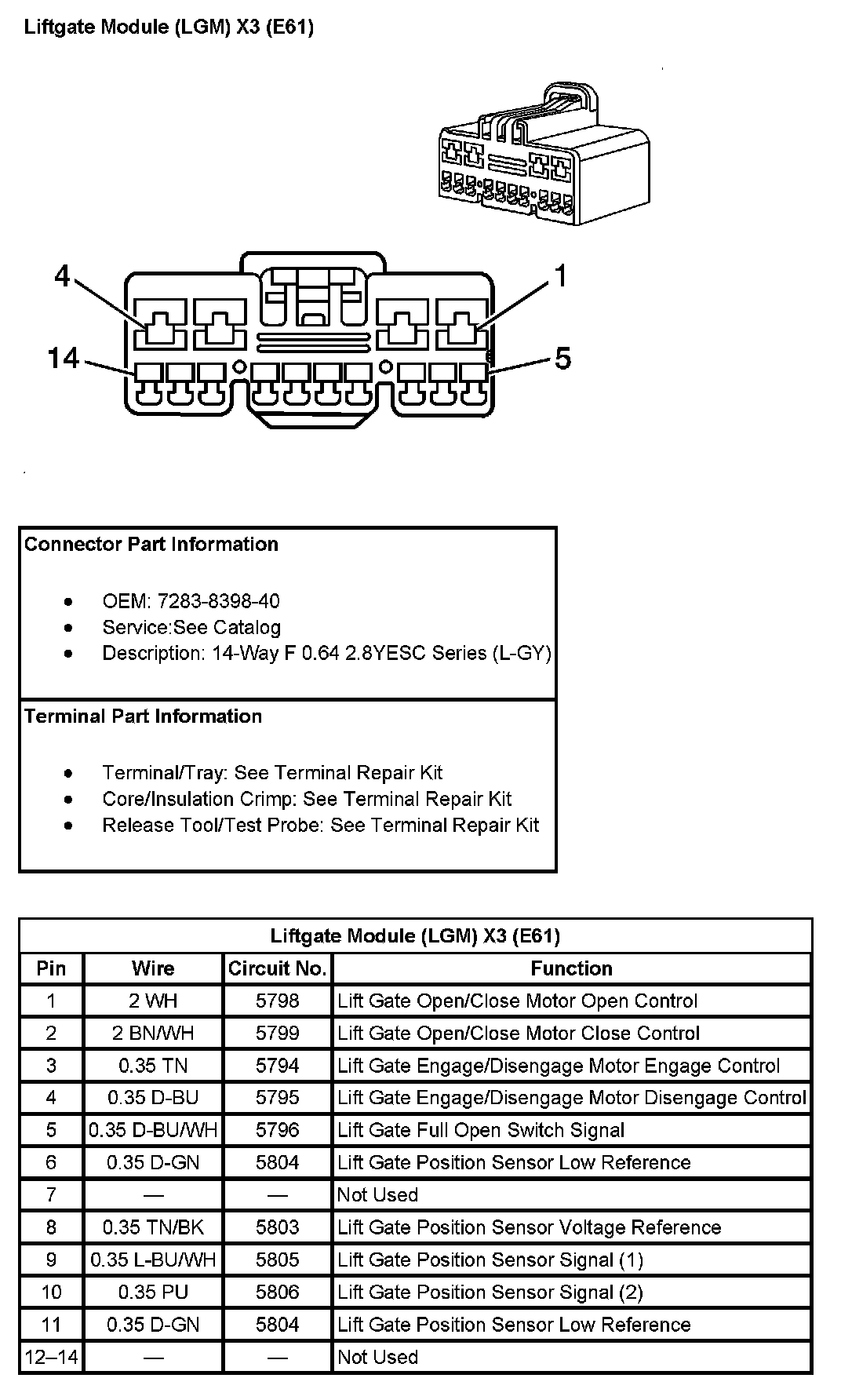

Liftgate Module (LGM) X2 (With RPO Code E61) Pin 1 To 14:
