Engine Control Module (ECM) X2 (With RPO Code LY7)

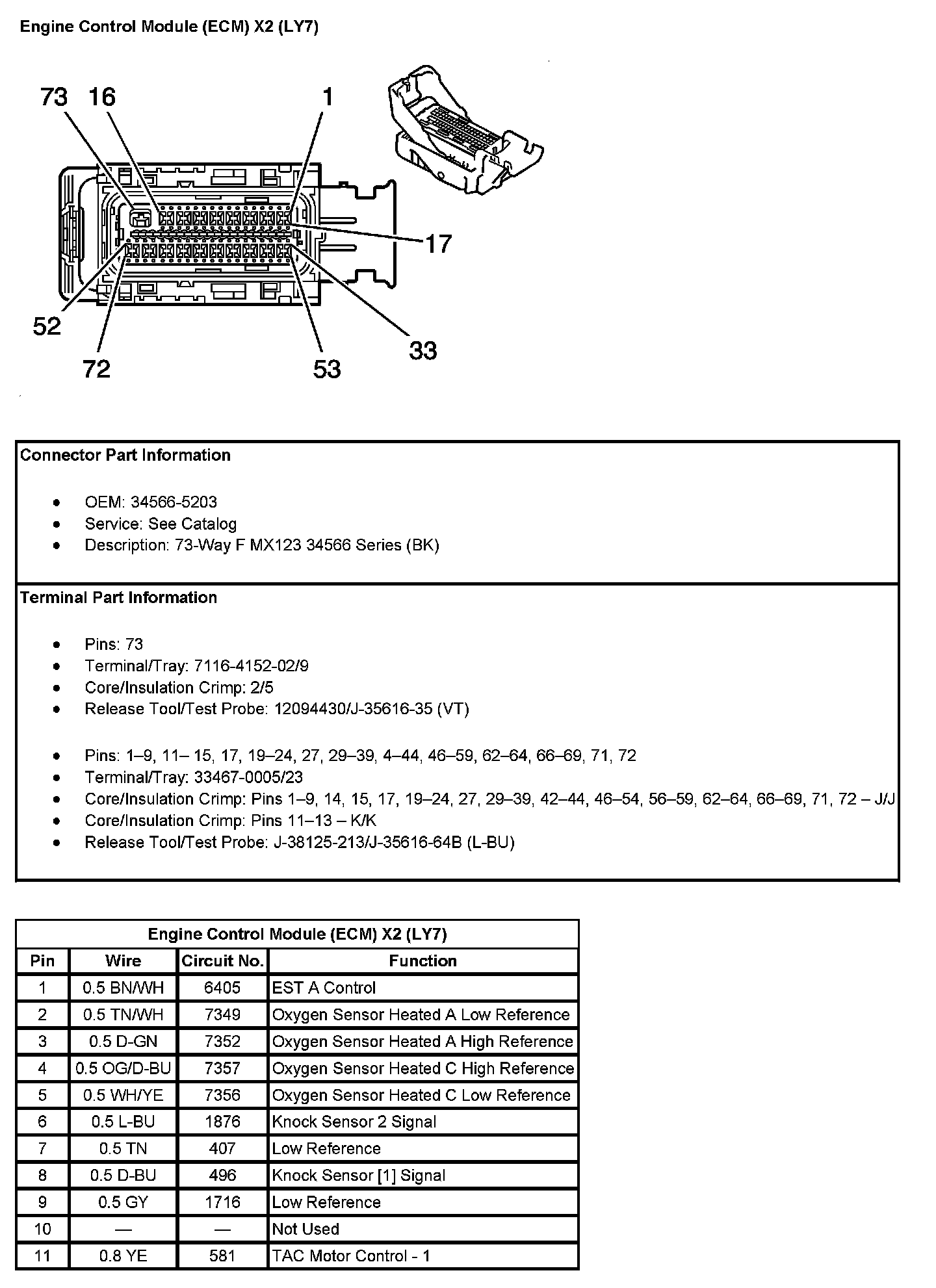

Engine Control Module (ECM) X2 (With RPO Code LY7) (Part 1):

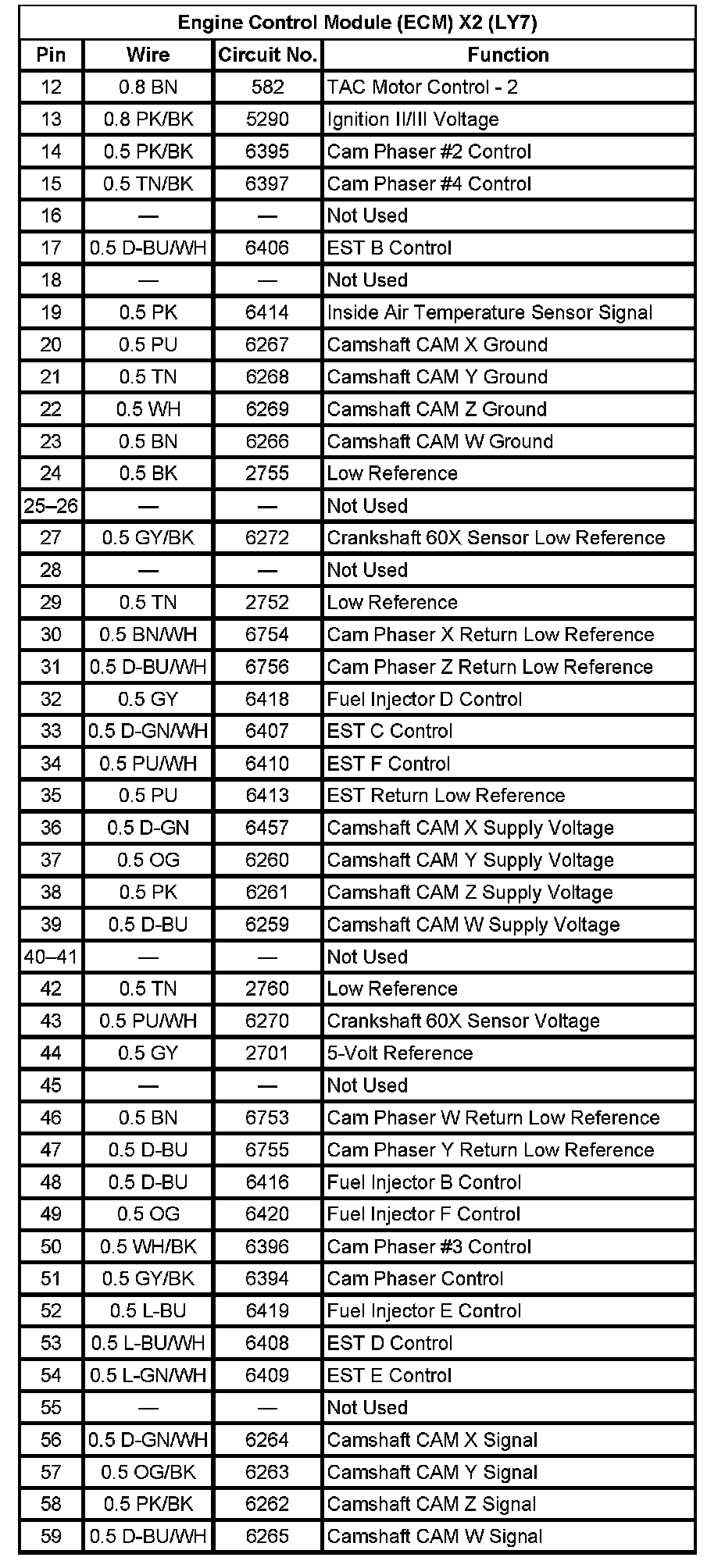

Engine Control Module (ECM) X2 (With RPO Code LY7) (Part 2):

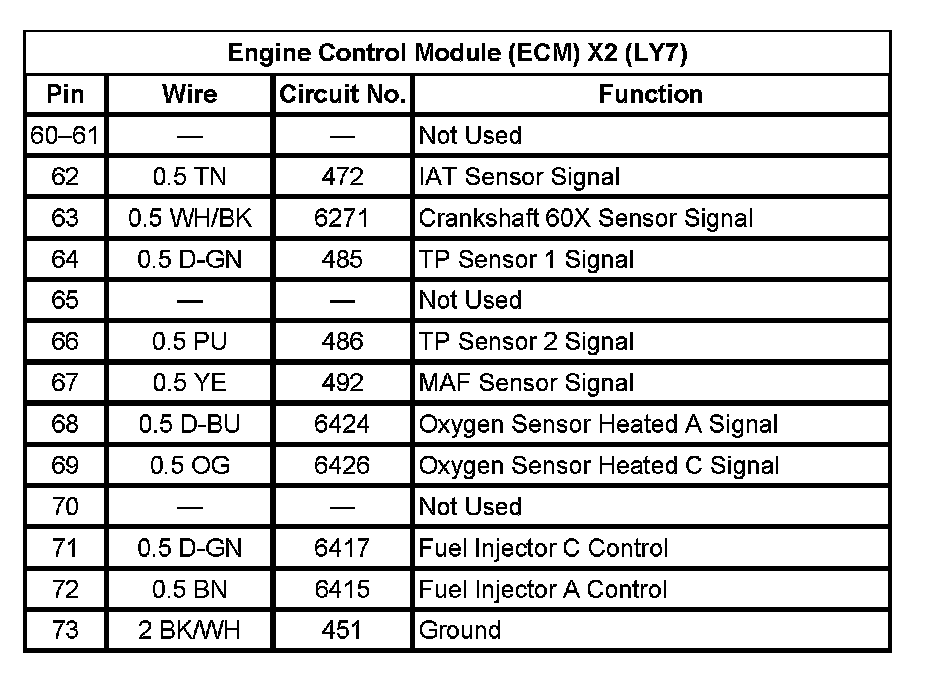

Engine Control Module (ECM) X2 (With RPO Code LY7) (Part 3):
