Combination Switch
Combination Switch
Turn Signal/Multifunction Switch X1:

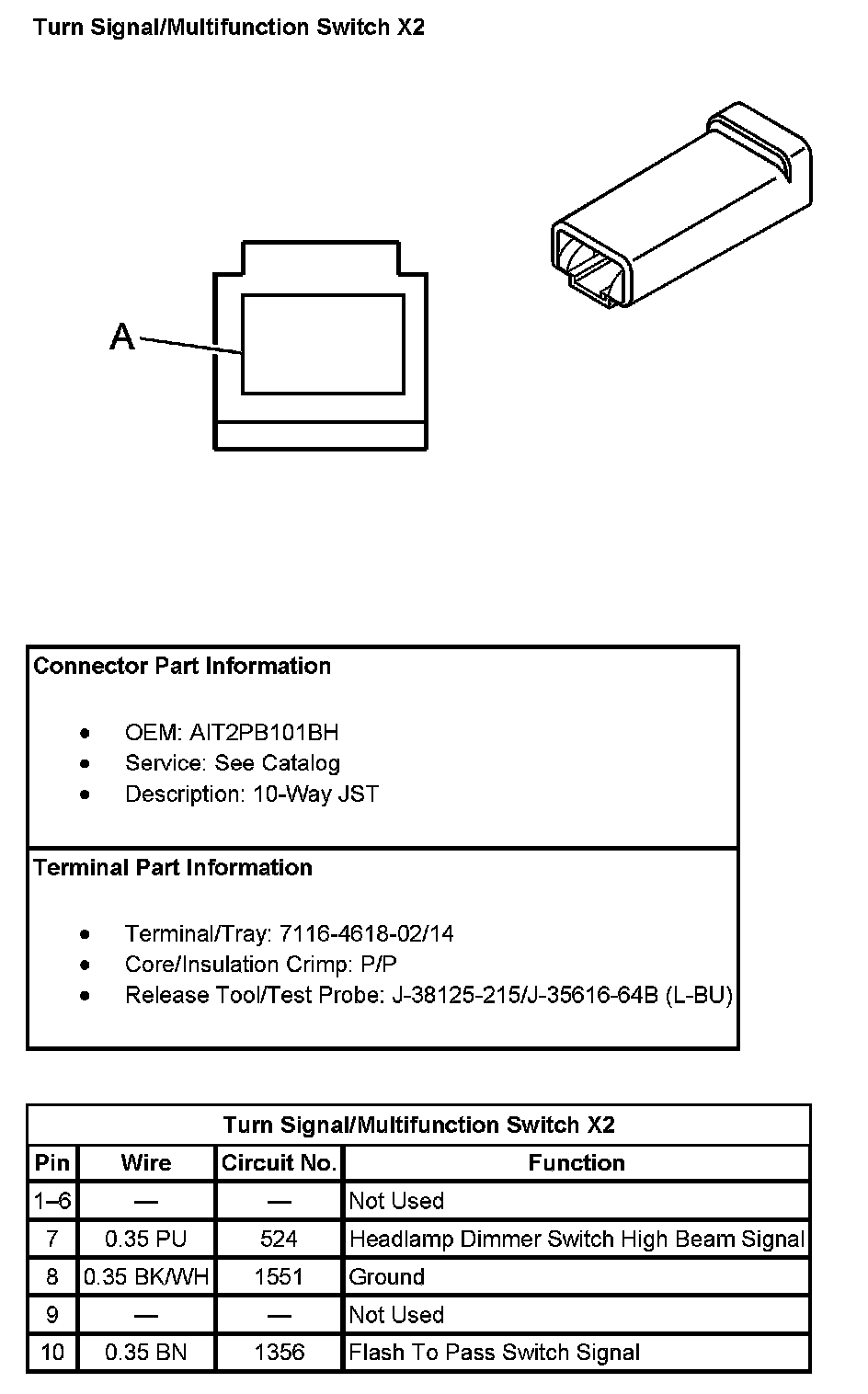

Turn Signal/Multifunction Switch X2:
