Body Control Module (BCM) X1
Body Control Module (BCM) X1

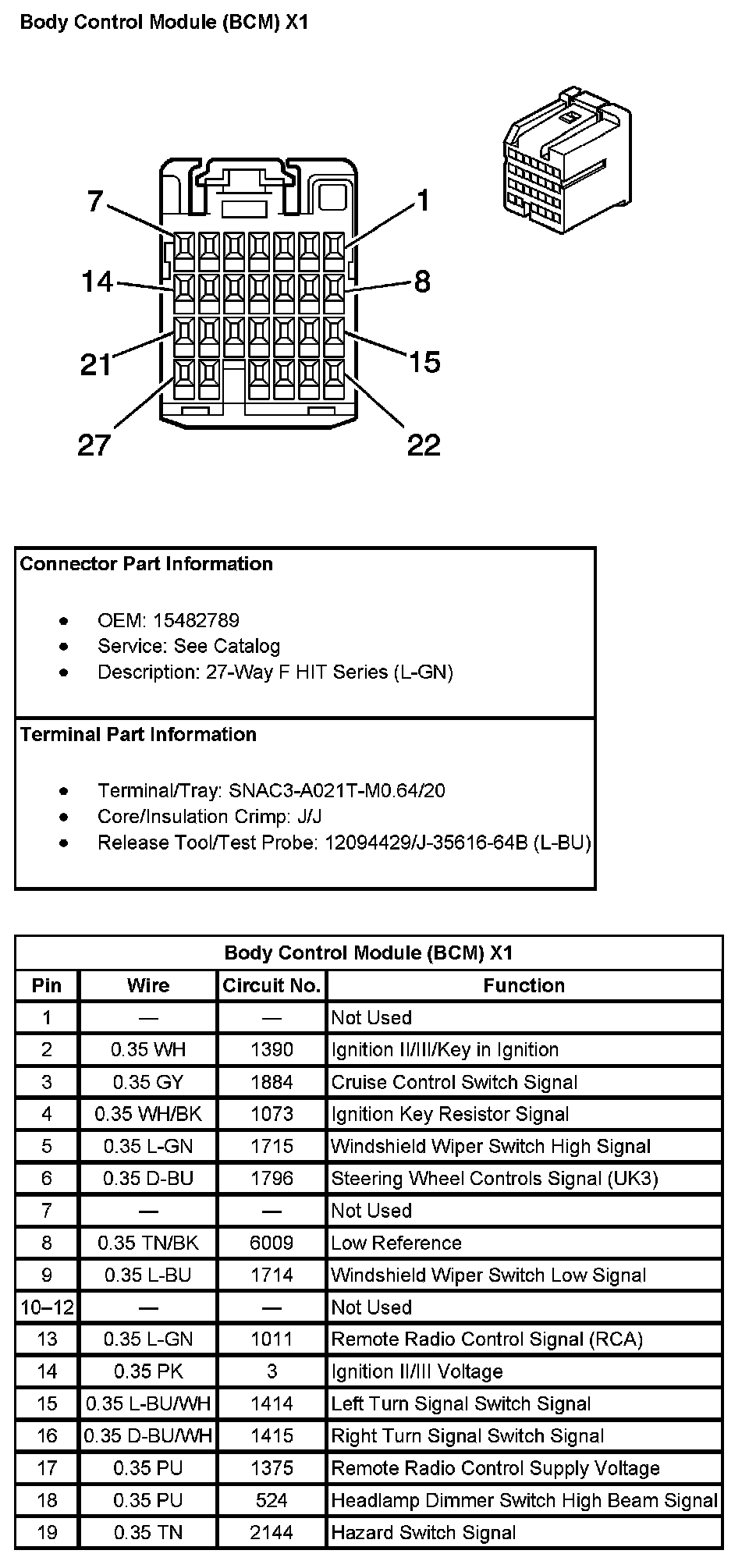

Body Control Module (BCM) X1 Pin 1 To 19:

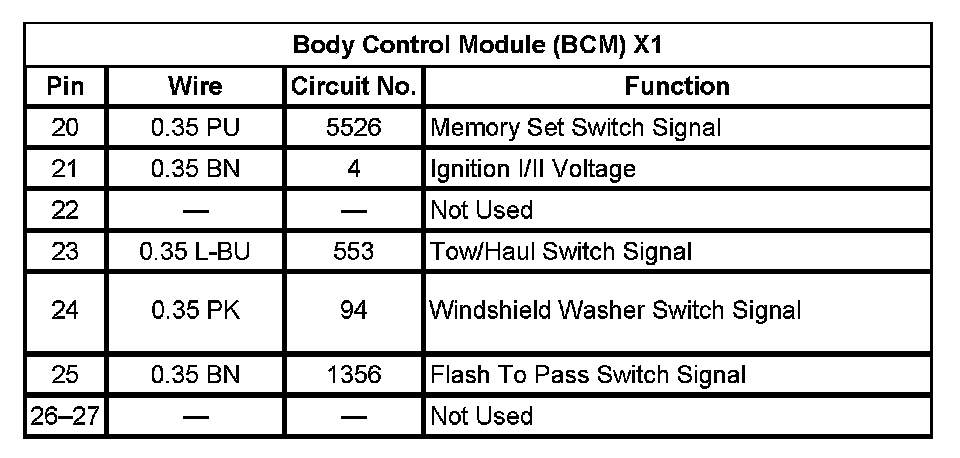

Body Control Module (BCM) X1 Pin 20 To 27:
