Home >> GMC >> 2007 >> Acadia FWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Components

Components

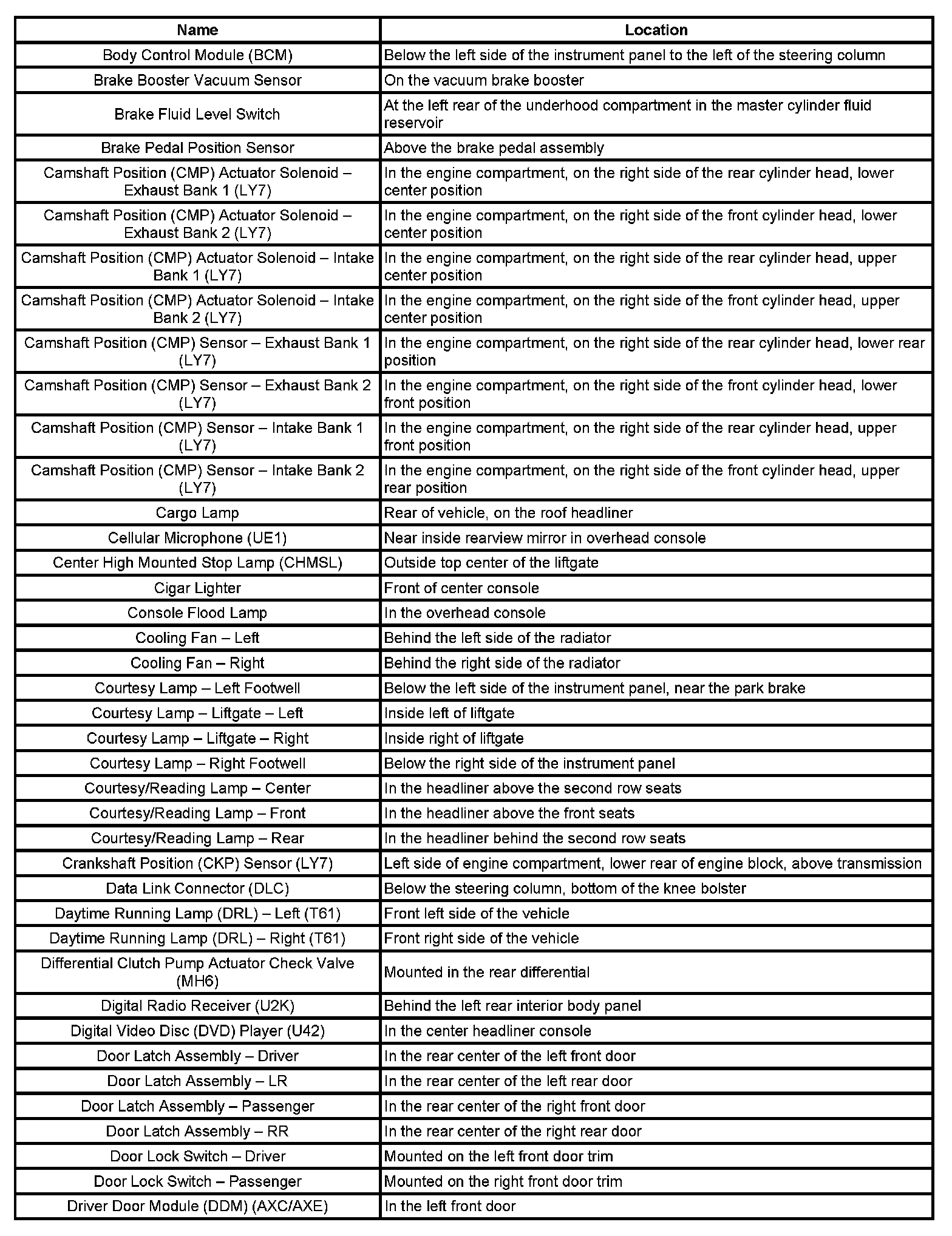

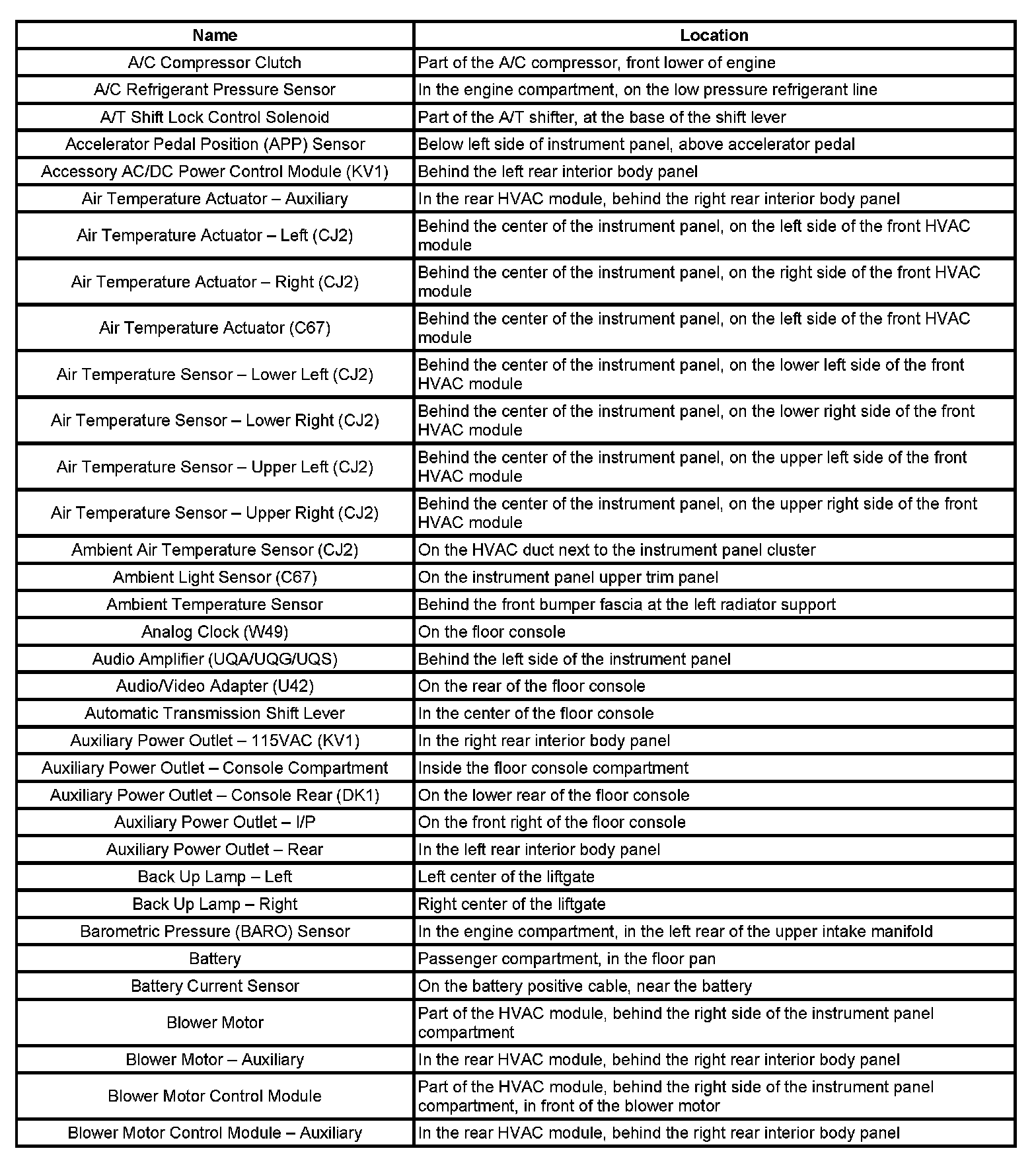

A/C Co - Bl:

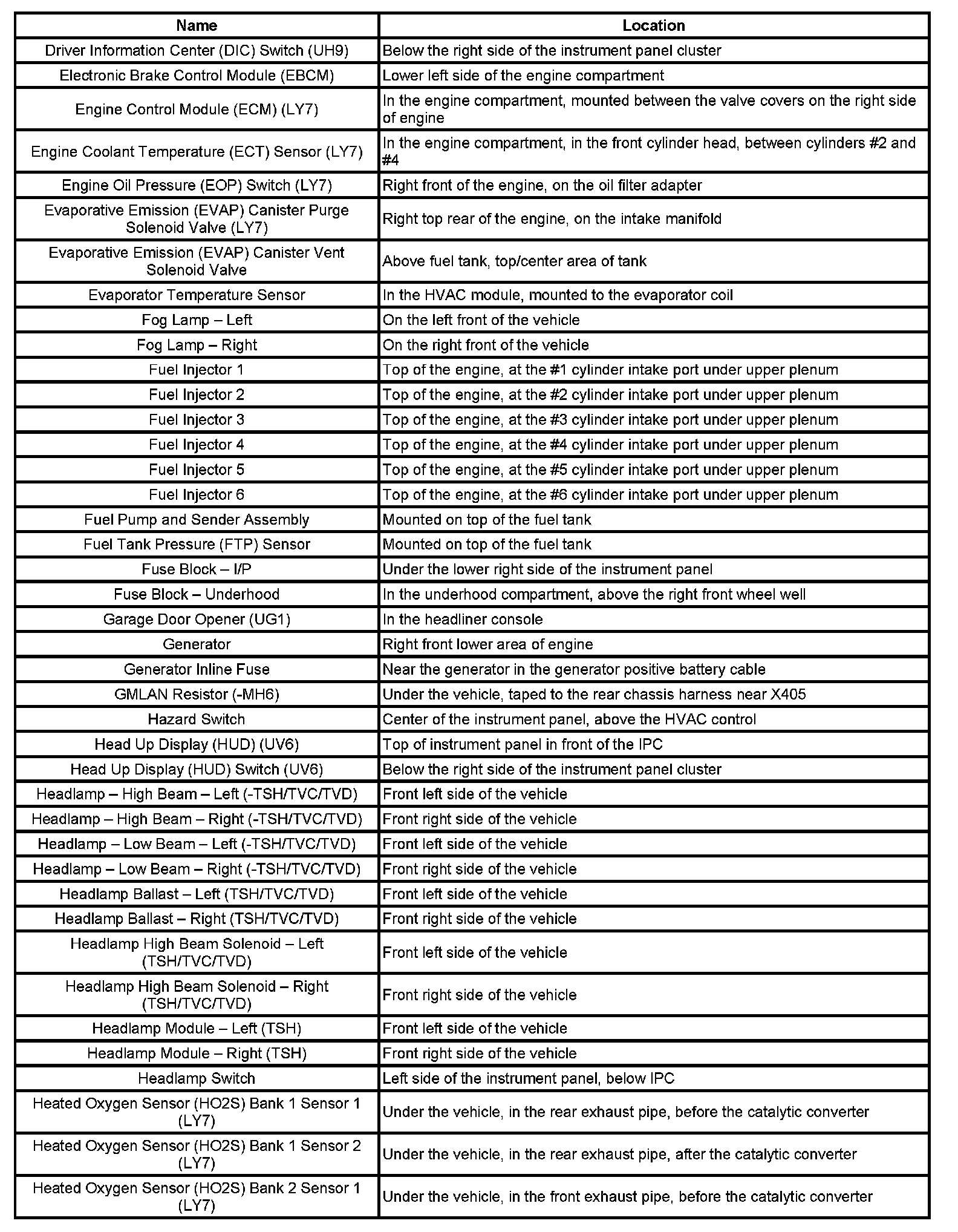

Bo - Dr:

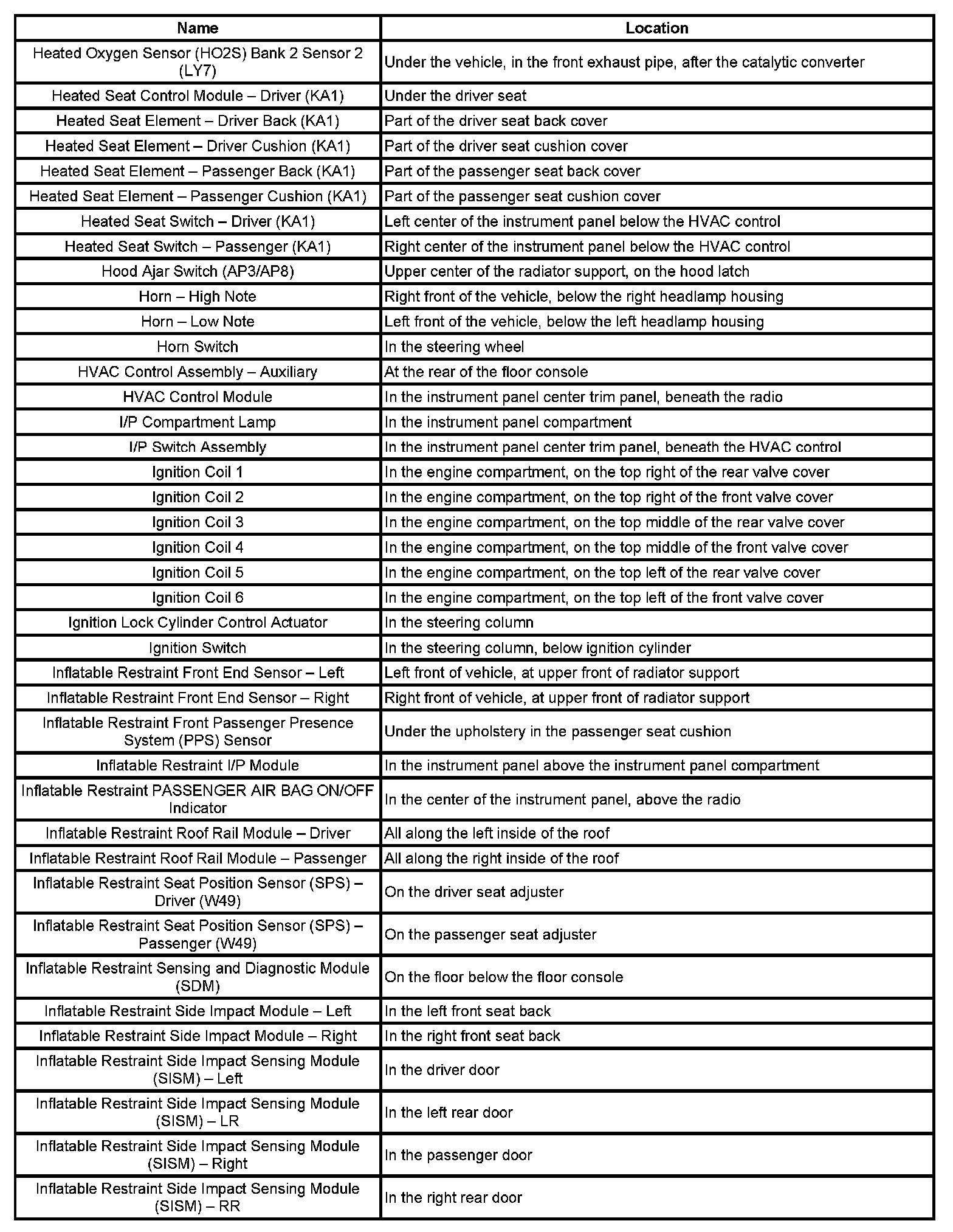

Dr - He:

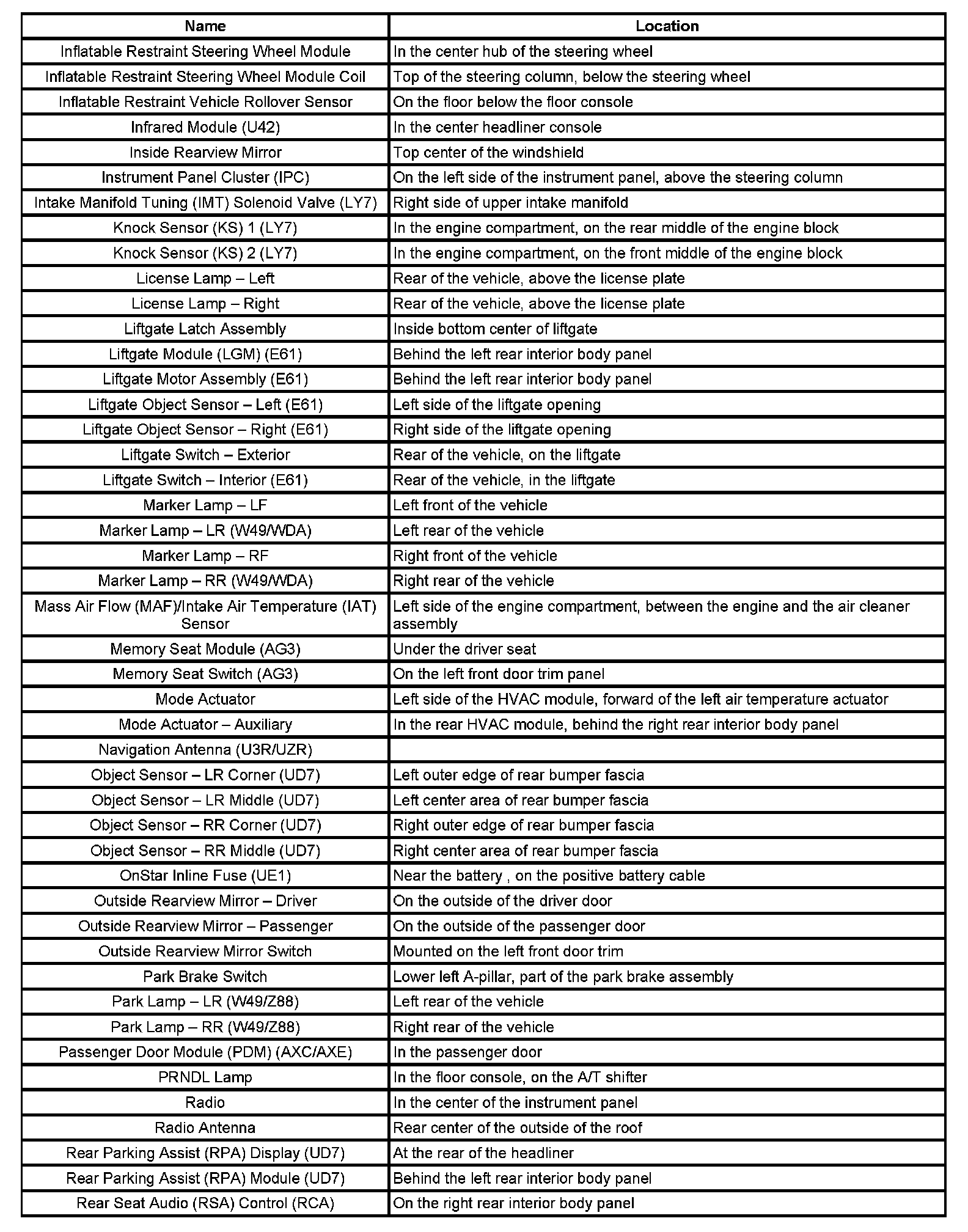

He - In:




In - Re:

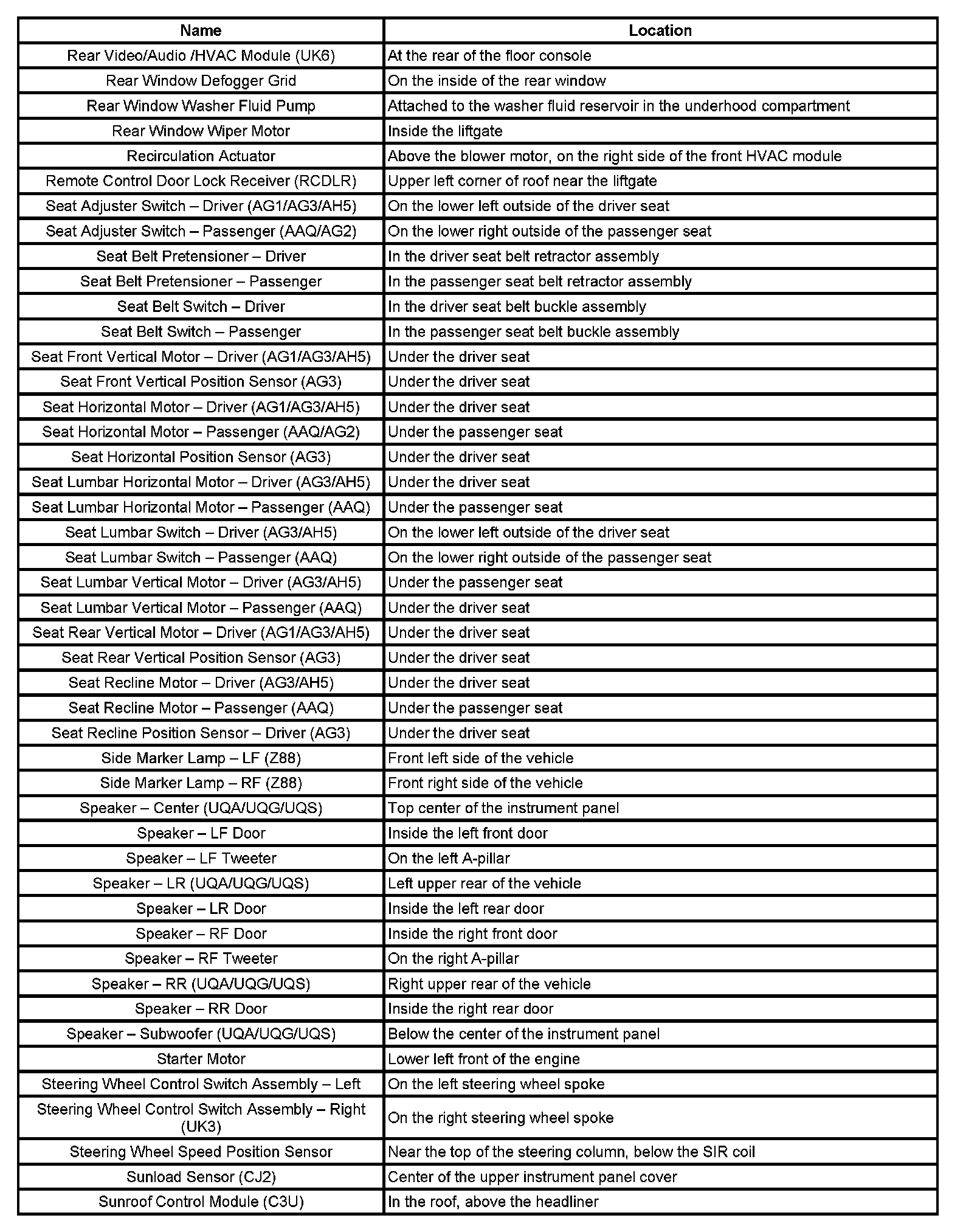

Re - Su:

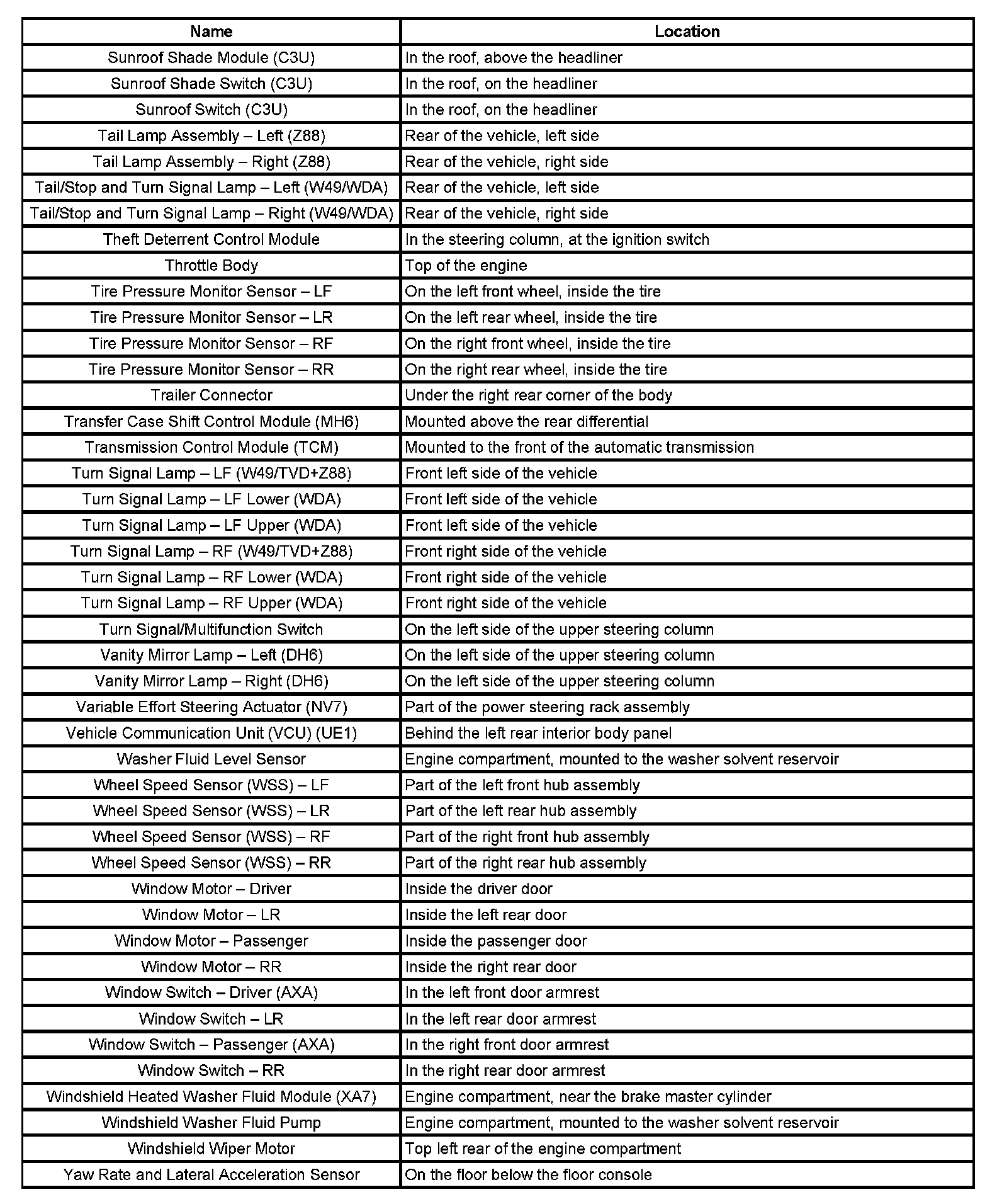

Su - Ya:
