Home >> GMC >> 2007 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, Transfer Case >> Transfer Case Shift Control Module X2

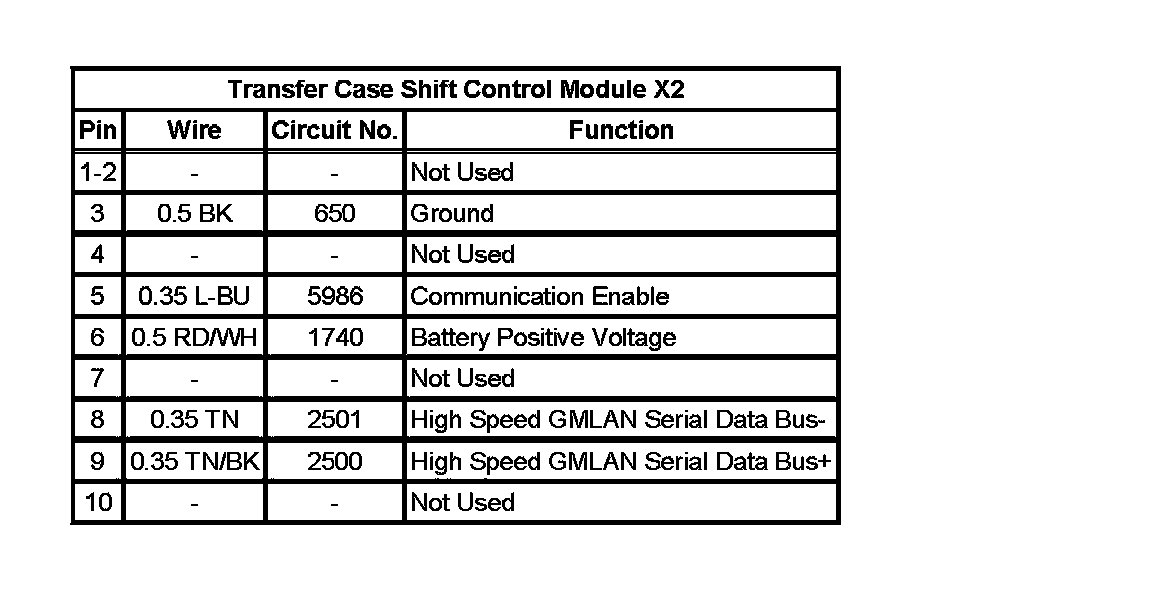

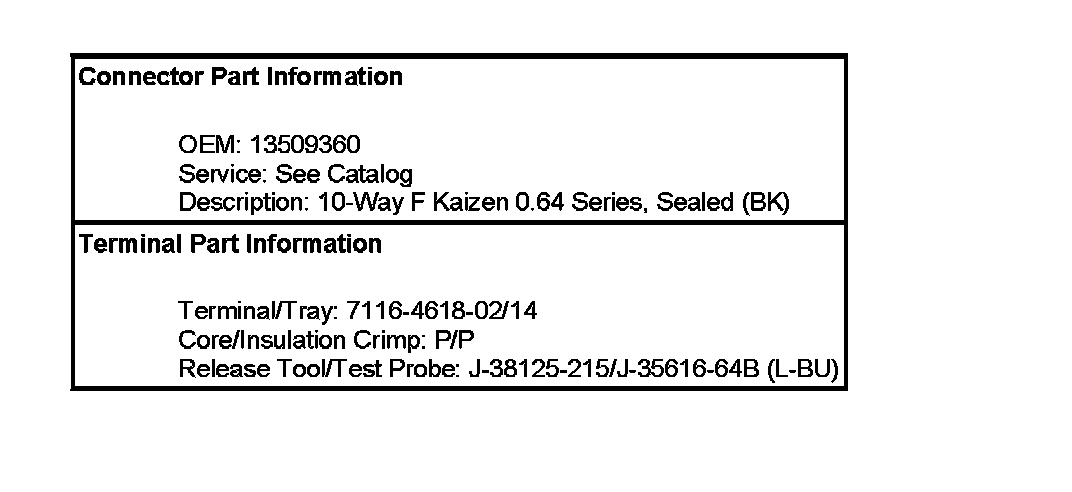

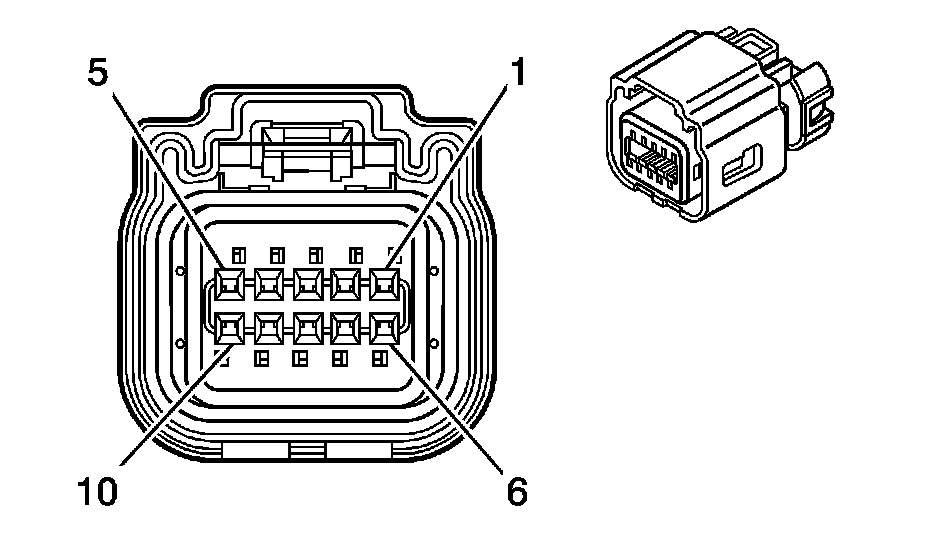

Transfer Case Shift Control Module X2

Transfer Case Shift Control Module X2

Transfer Case Shift Control Module X2:
