Ignition Control Module: Service and Repair

IGNITION CONTROL MODULE REPLACEMENT

REMOVAL PROCEDURE

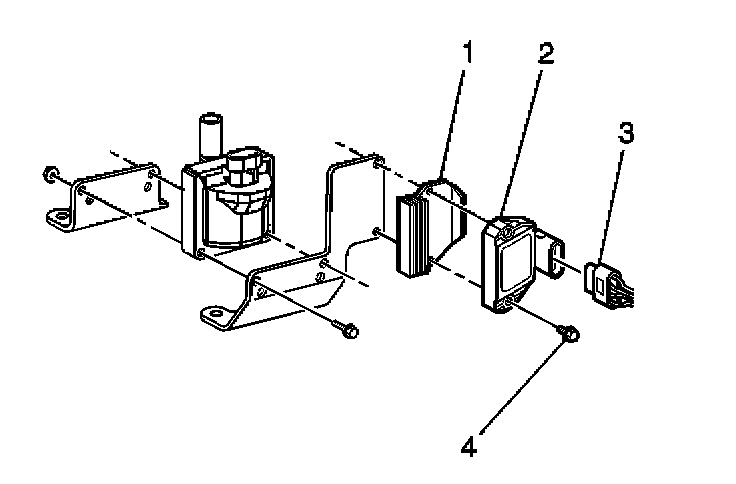

1. Disconnect the electrical connector (3).
2. Remove 2 screws (4) holding the ignition control module (2) and the heat sink (1) to the bracket.
3. Remove the ignition control module and heat sink.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Install the ignition control module (2) and the heat sink (1) on the bracket with the 2 screws (4).

Tighten
Tighten the screws to 3.5 N.m (31 lb in).

2. Reconnect the electrical connectors (3).
