Throttle Position Sensor: Locations
Throttle Position (TP) Sensor, Idle Air Control (IAC) Valve, And Positive Crankcase Ventilation (PCV) Valve:

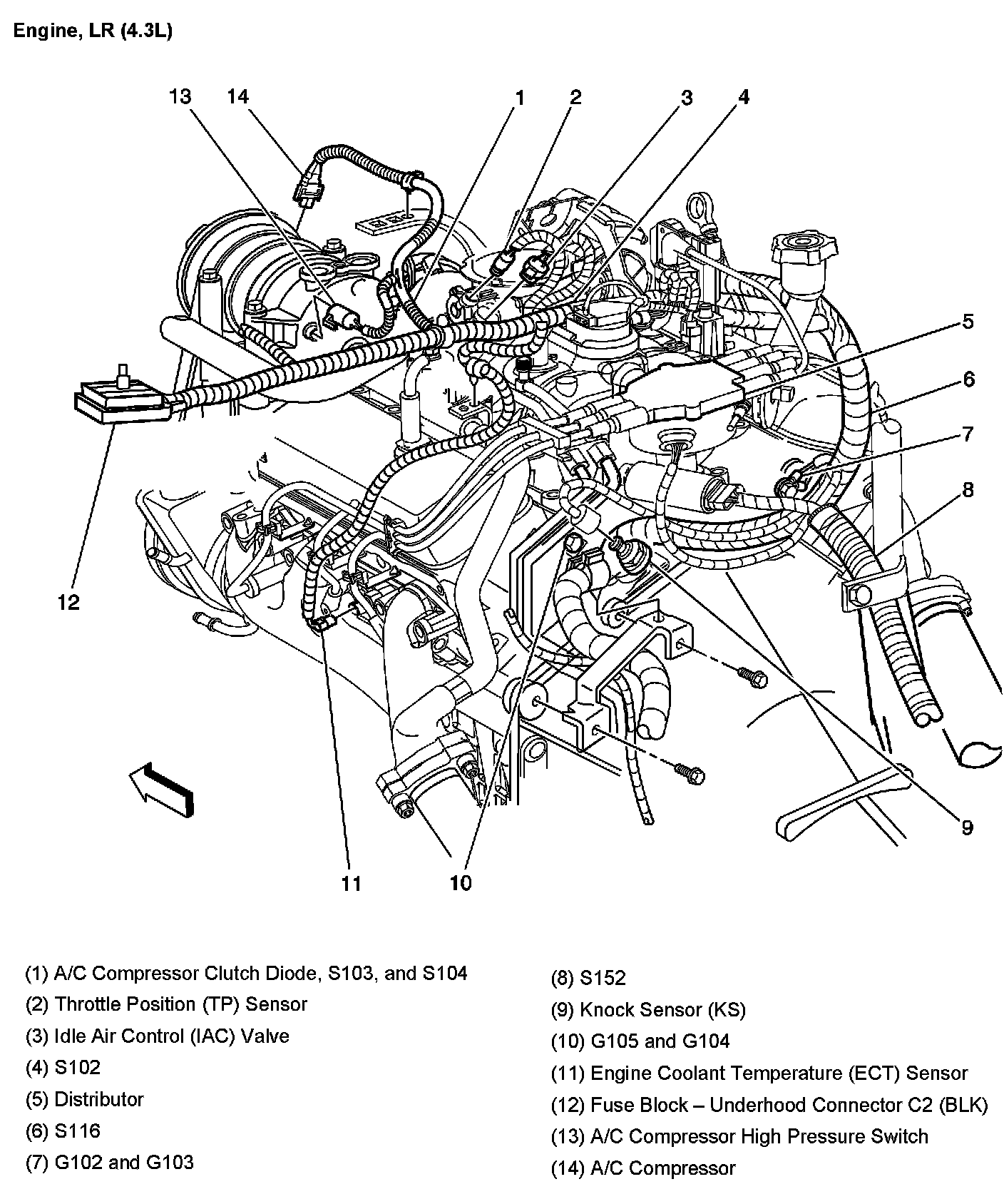

Engine, LR:

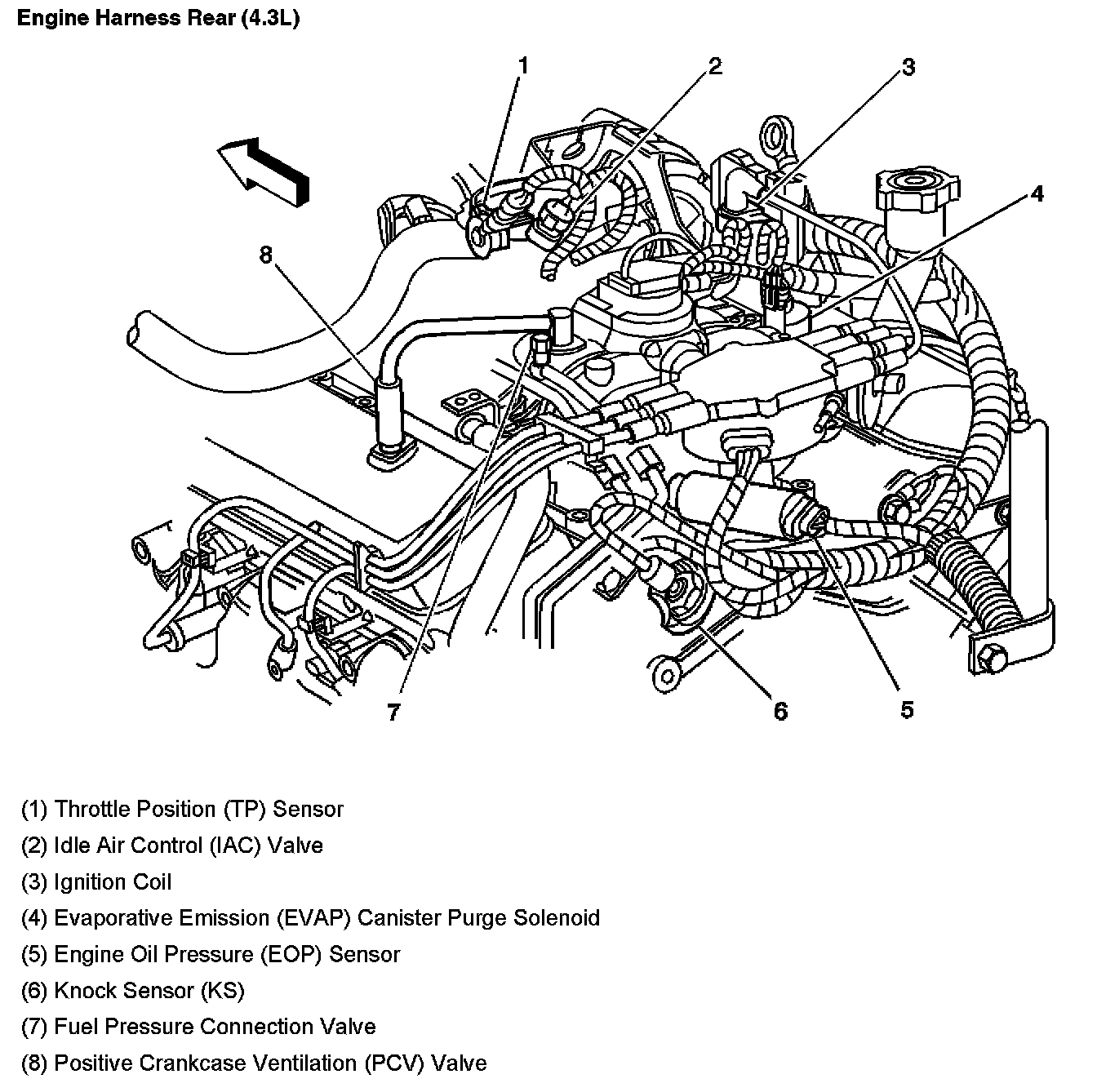

Engine Harness Rear:
