Air Flow Meter/Sensor: Locations

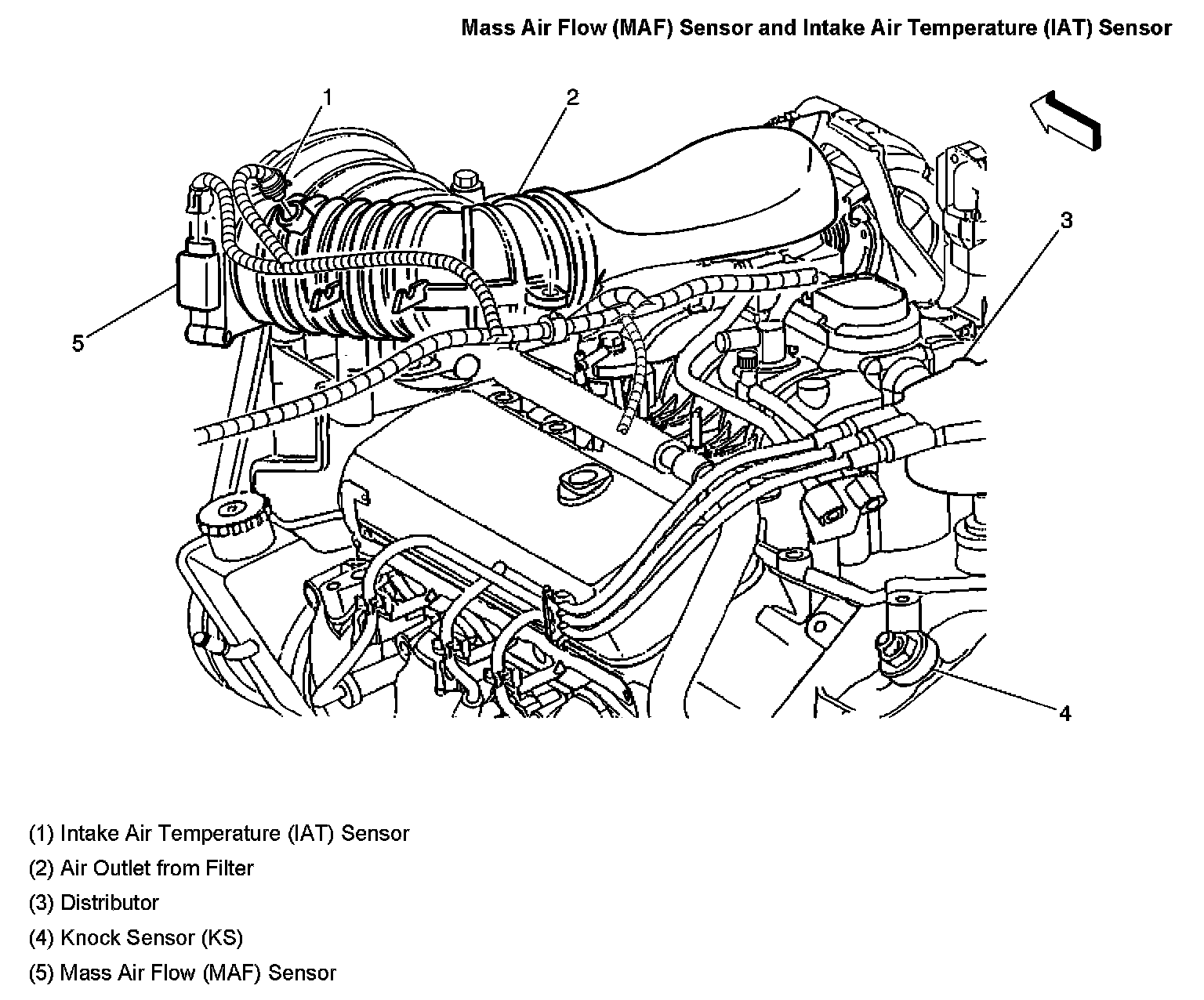

Mass Air Flow (MAF) Sensor And Intake Air Temperature (IAT) Sensor:

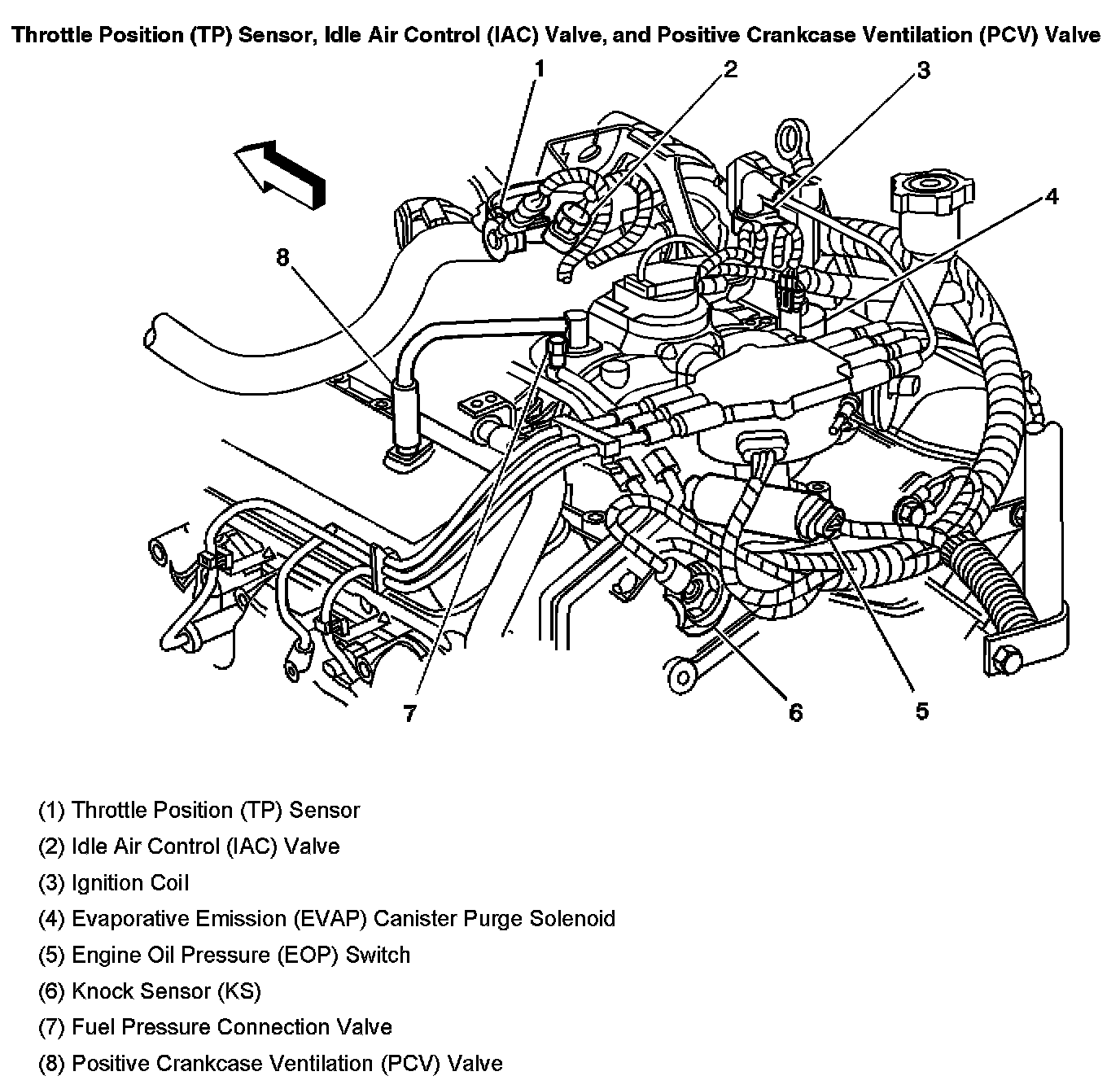

Throttle Position (TP) Sensor, Idle Air Control (IAC) Valve, And Positive Crankcase Ventilation (PCV) Valve:

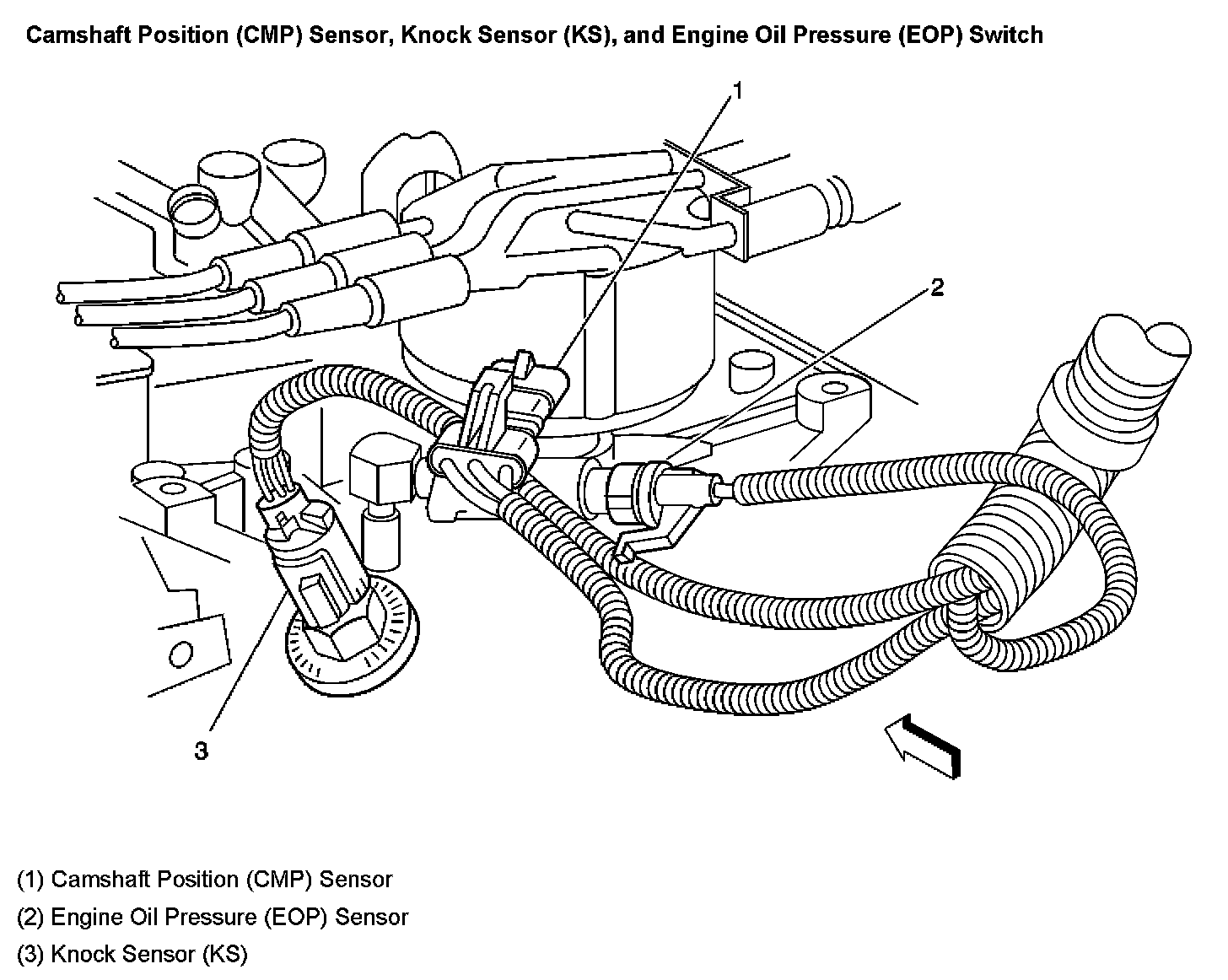

Camshaft Position (CMP) Sensor, Knock Sensor (KS), and Engine Oil Pressure (EOP) Switch:
