GMC
>>
2004
>>
Jimmy (CANADA) V6-4.3L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Module HVAC
>>
Locations
Control Module HVAC: Locations

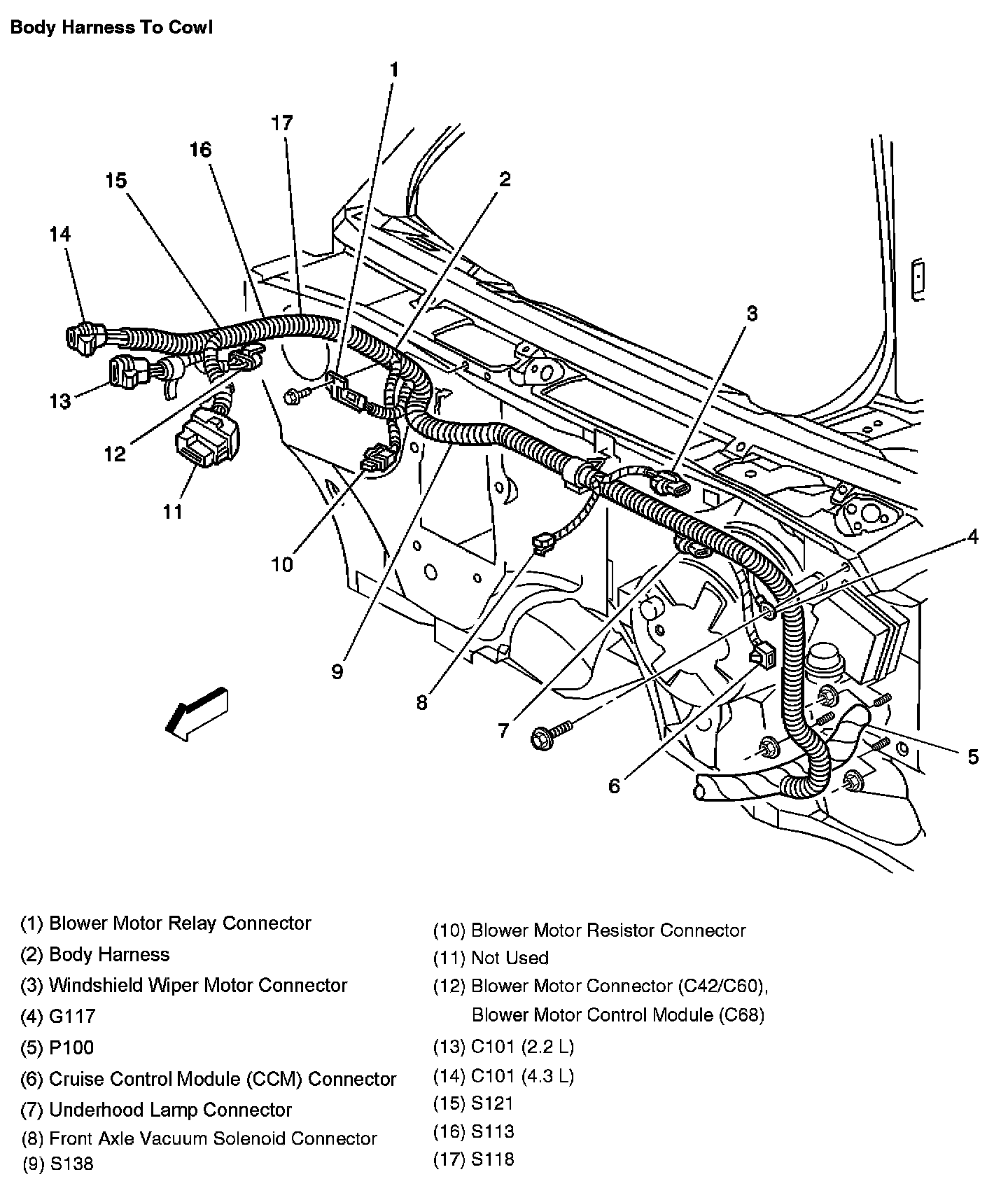

Body Harness To Cowl:
