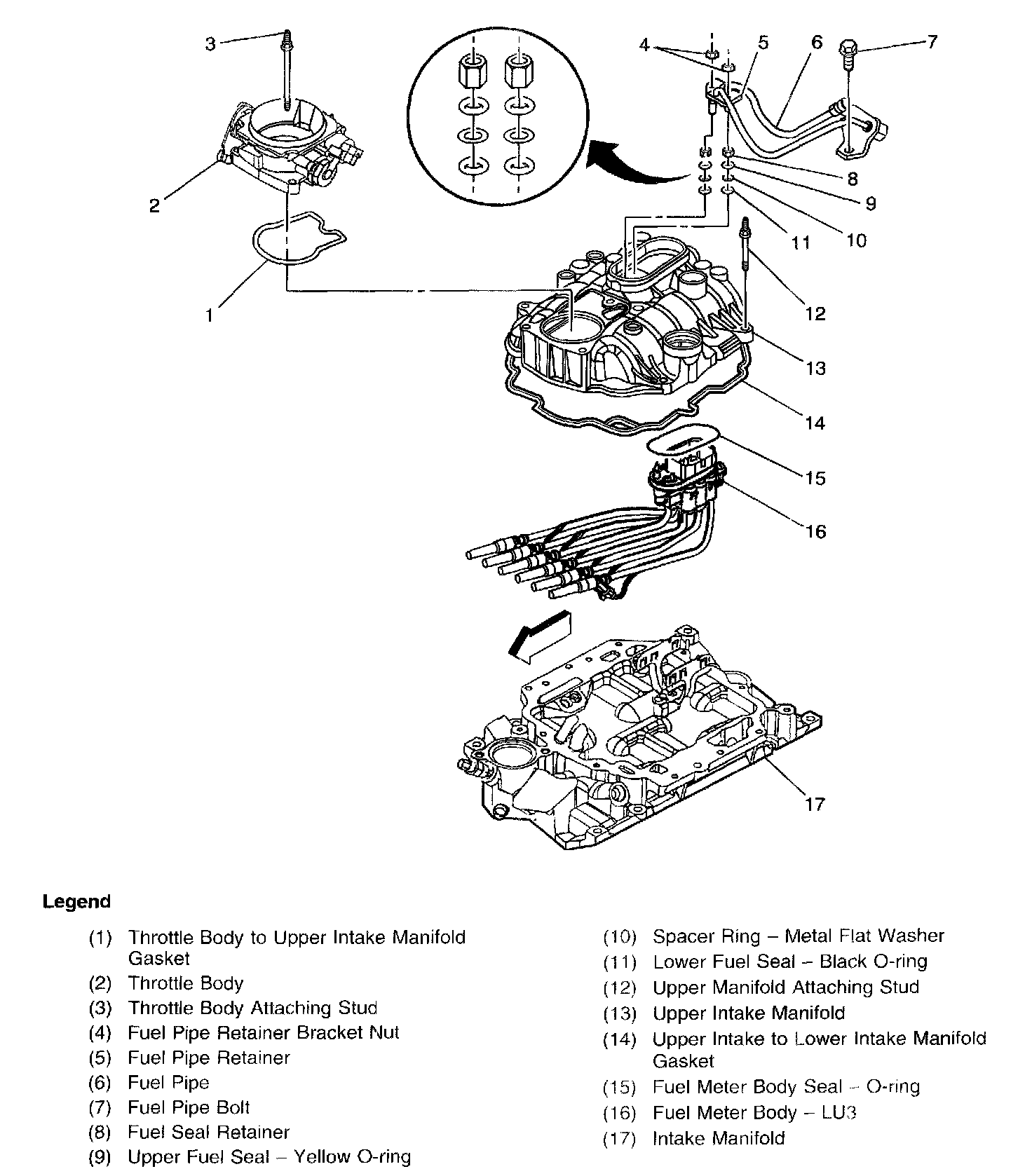

Upper and Lower Intake Manifold View
Upper and Lower Intake Manifold View
Upper and Lower Intake Manifold View:
