Home >> GMC >> 2004 >> Jimmy (CANADA) V6-4.3L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Upper Engine View 2

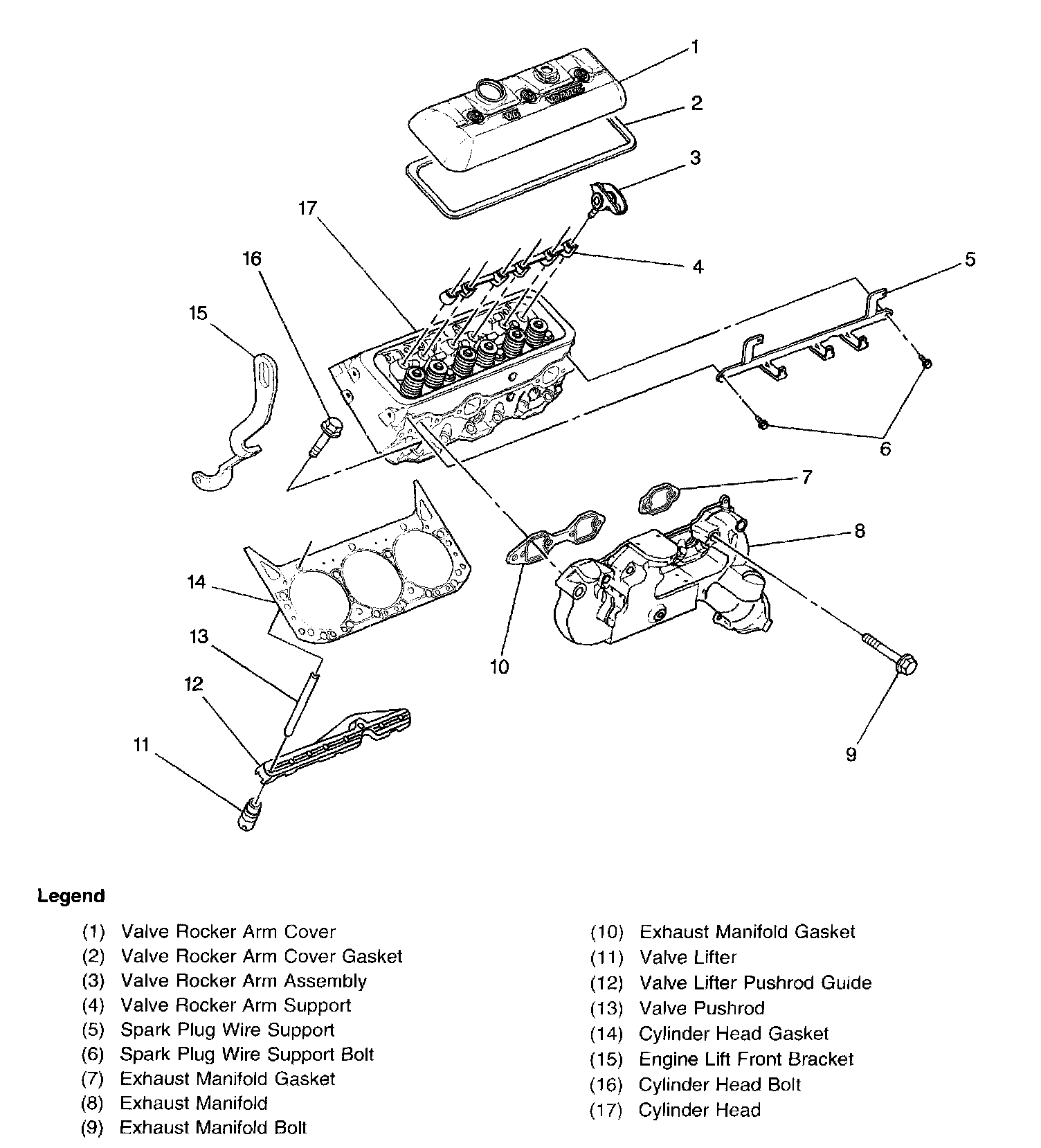

Upper Engine View 2

Upper Engine View 2:
