Home >> GMC >> 2004 >> Jimmy (CANADA) V6-4.3L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Lower Engine View 1

Lower Engine View 1

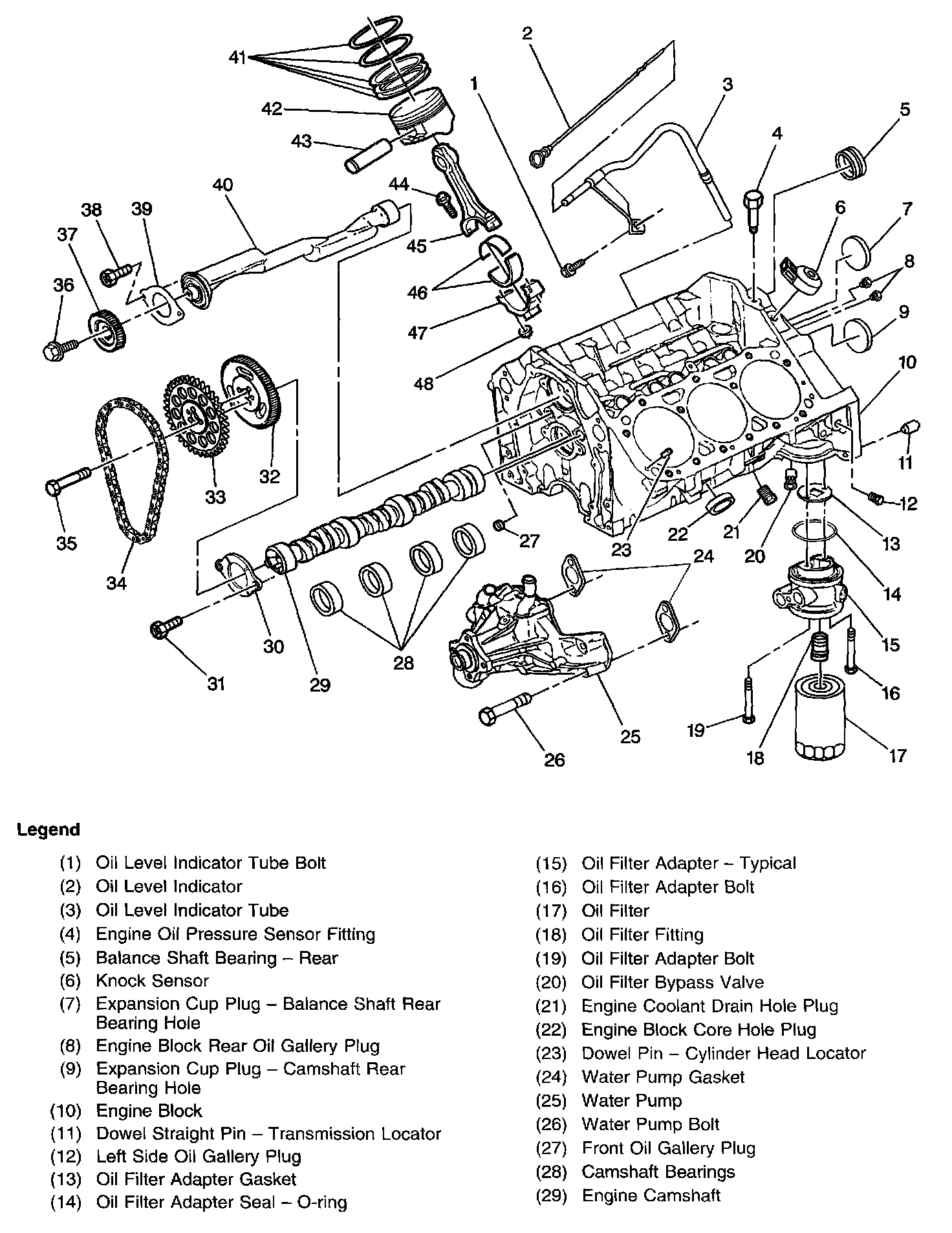

Lower Engine View 1 Part 1 Of 2:

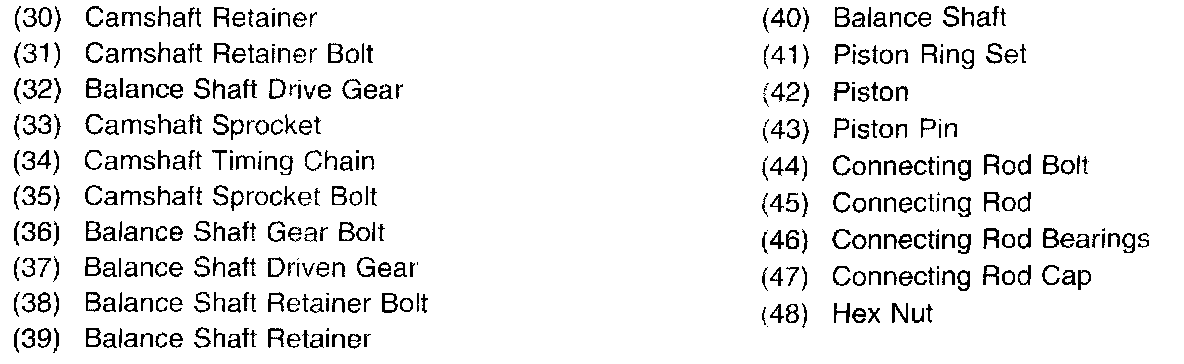

Lower Engine View 1 Part 2 Of 2:
