Seat Temperature Control Module
Seat Temperature Control Module

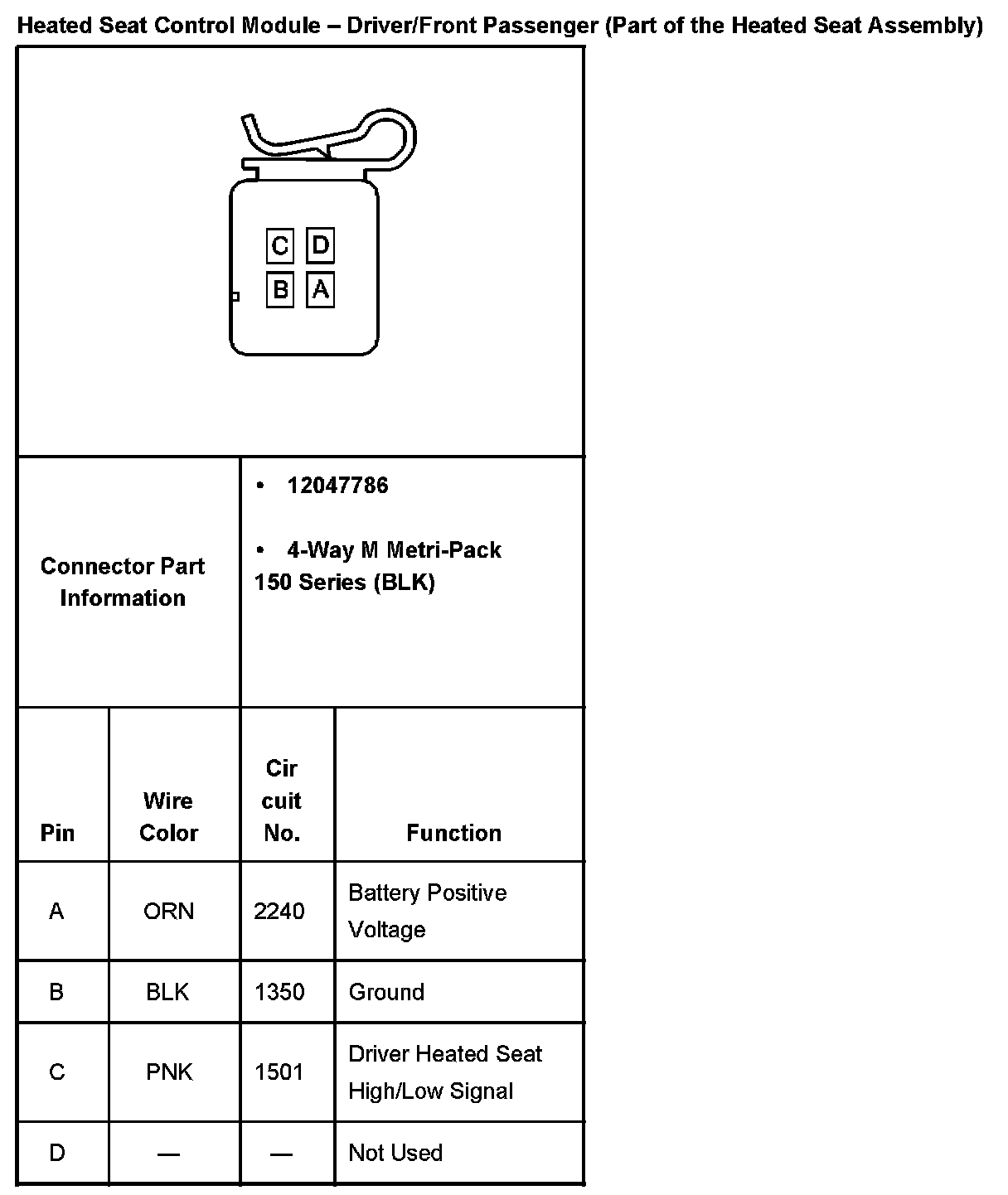

Heated Seat Control Module - Driver/Front Passenger (Part Of The Heated Seat Assembly):
