Home >> GMC >> 2004 >> Jimmy (CANADA) V6-4.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Body Control Module (BCM) C1

Body Control Module (BCM) C1

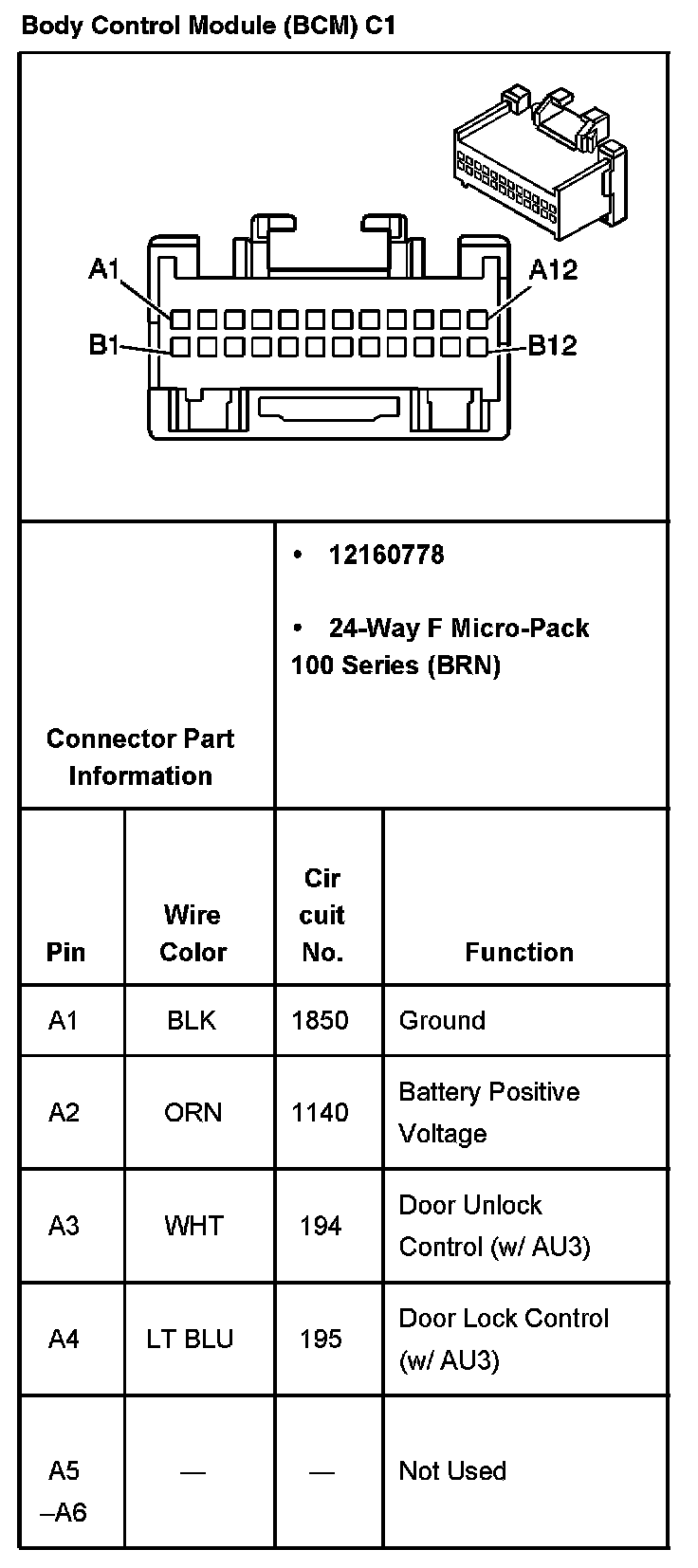

Body Control Module (BCM) C1 Part 1:

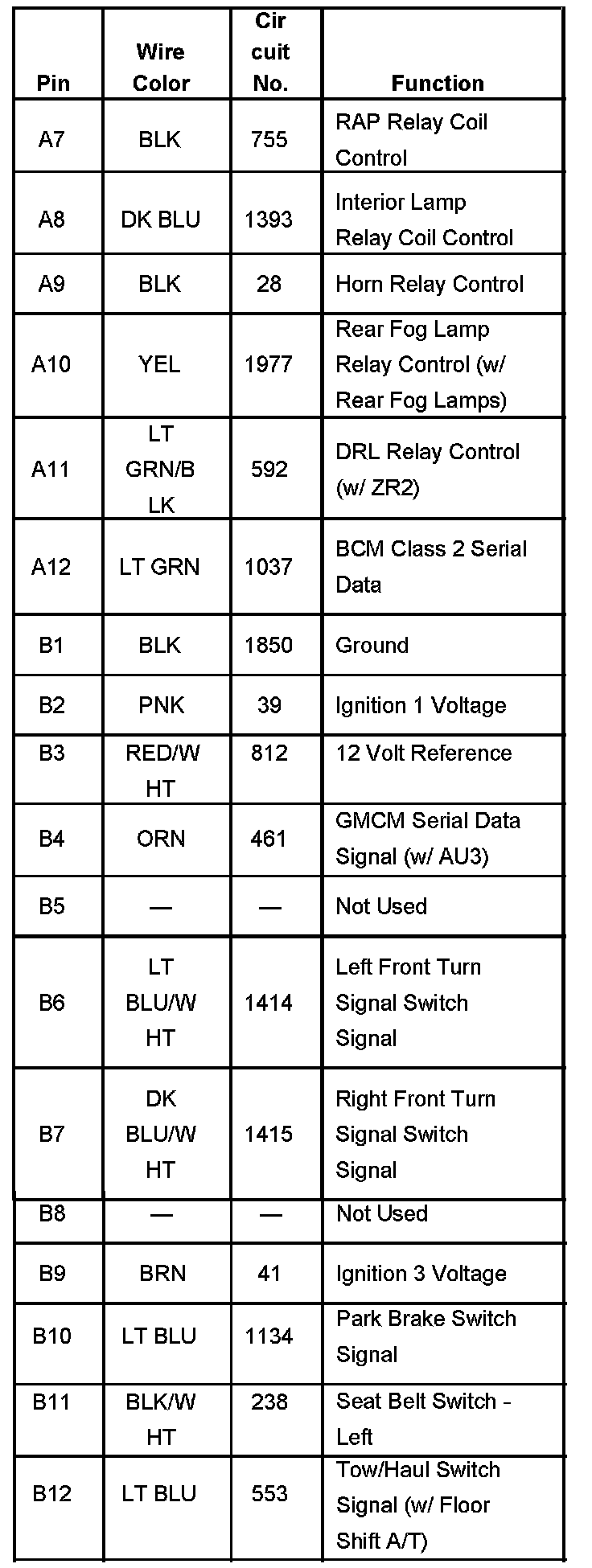

Body Control Module (BCM) C1 Part 2:
