Home >> GMC >> 2003 >> Jimmy (CANADA) V6-4.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Vehicle Speed Sensor >> Locations

Vehicle Speed Sensor: Locations

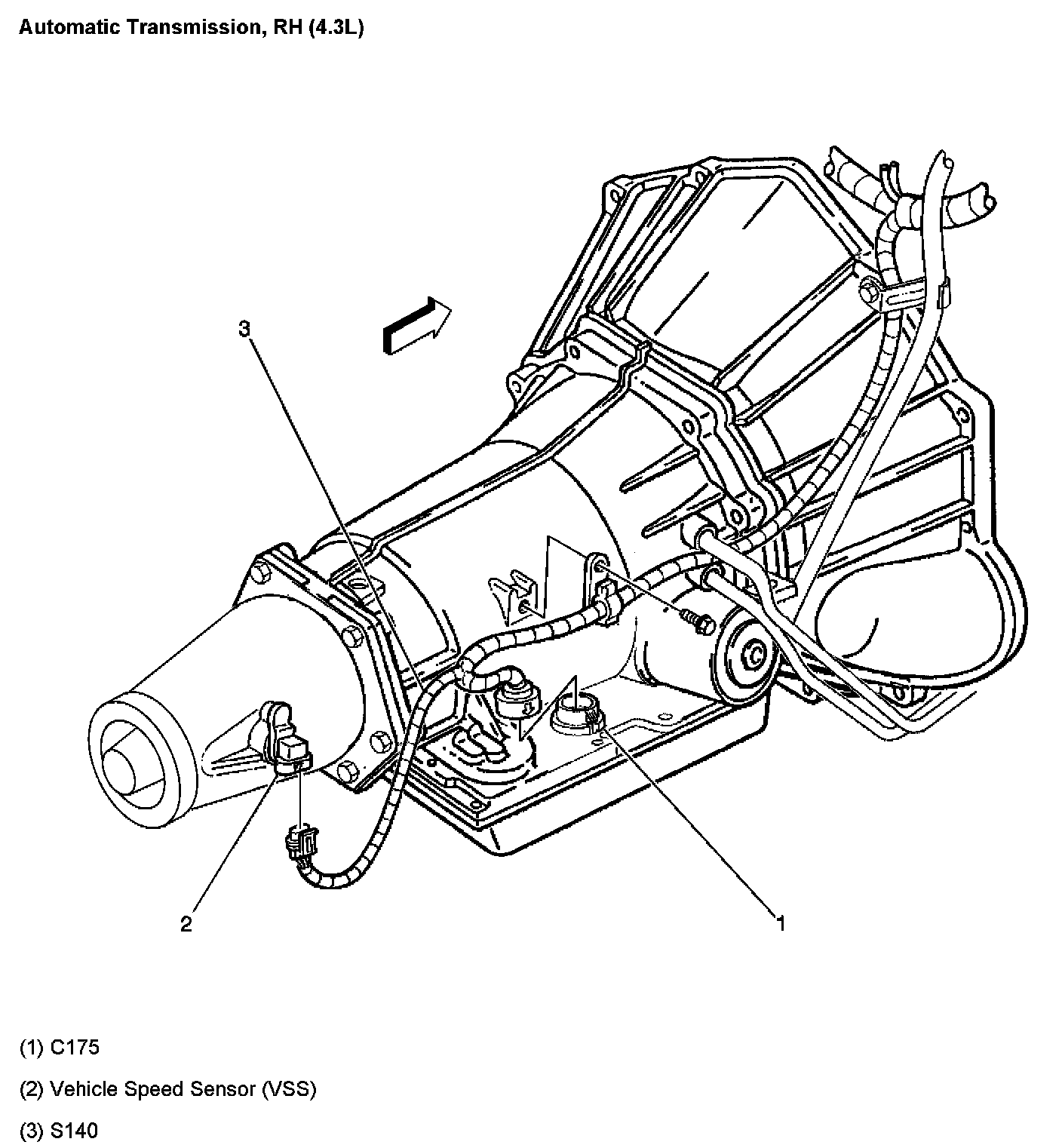

Automatic Transmission, RH:

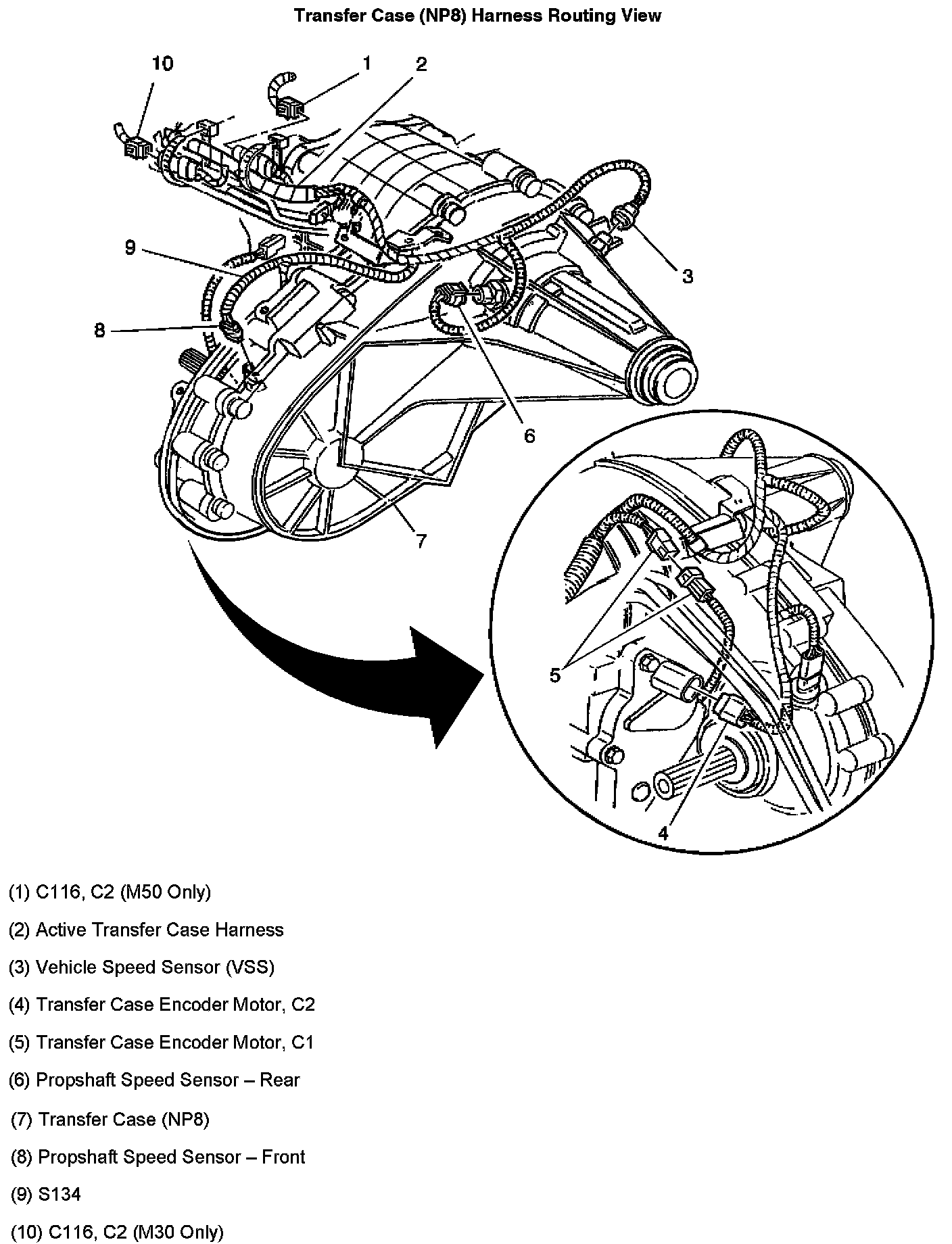

Transfer Case (With RPO Code NP8) Harness Routing View:
