Transmission Position Sensor/Switch: Diagrams

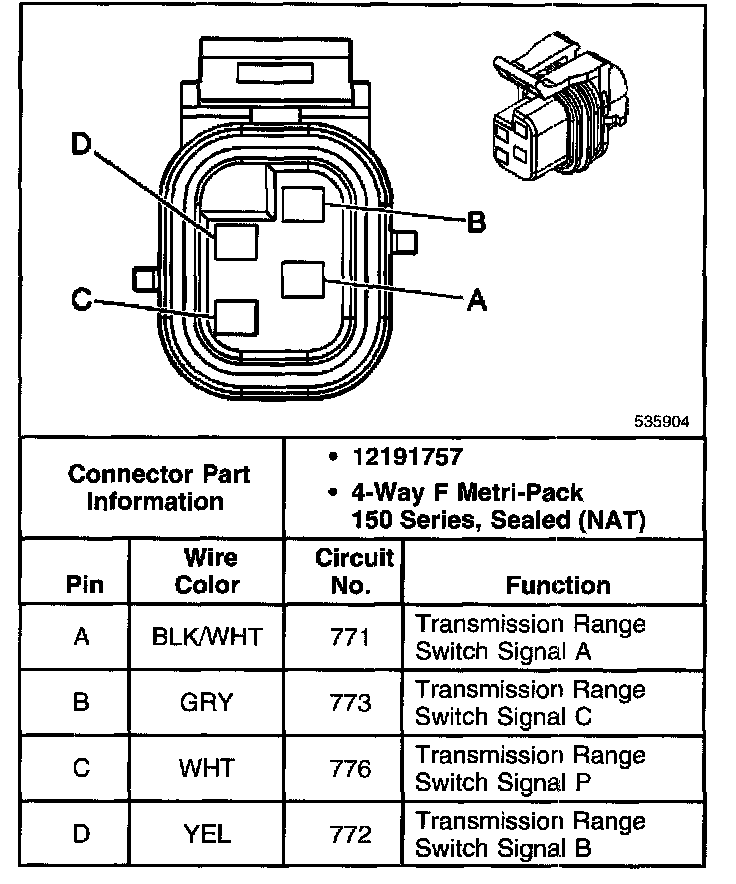

ParklNeutral Position (PNP) Switch C1:

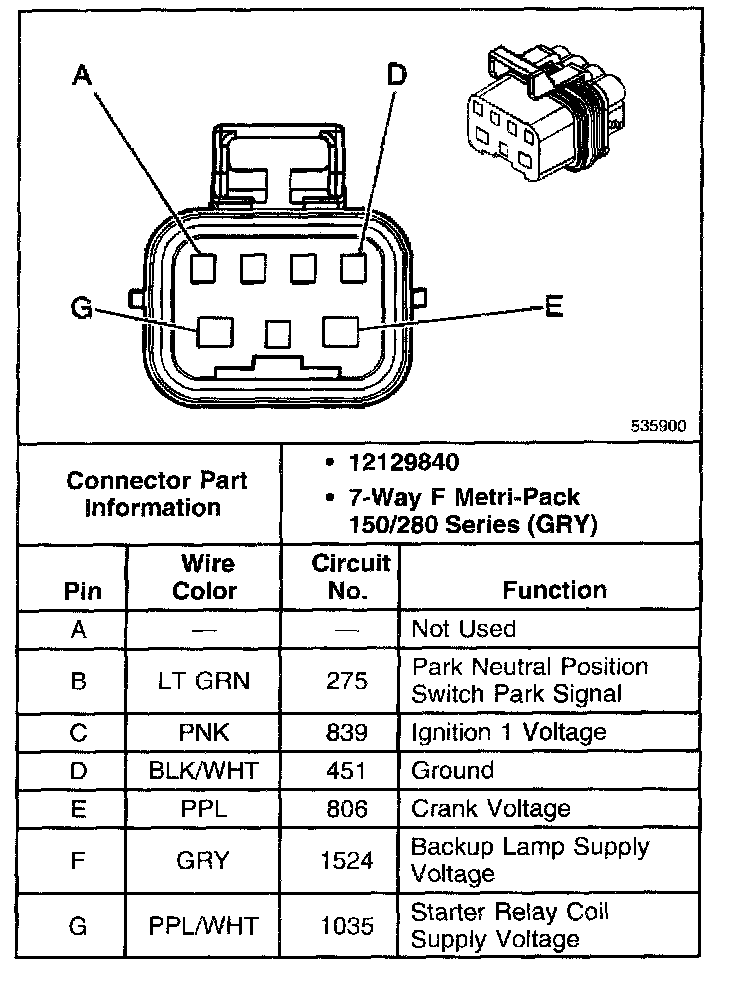

Park Neutral Position (PNP) Switch C2:
