Home >> GMC >> 2003 >> Jimmy (CANADA) V6-4.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Diagrams

Air Flow Meter/Sensor: Diagrams

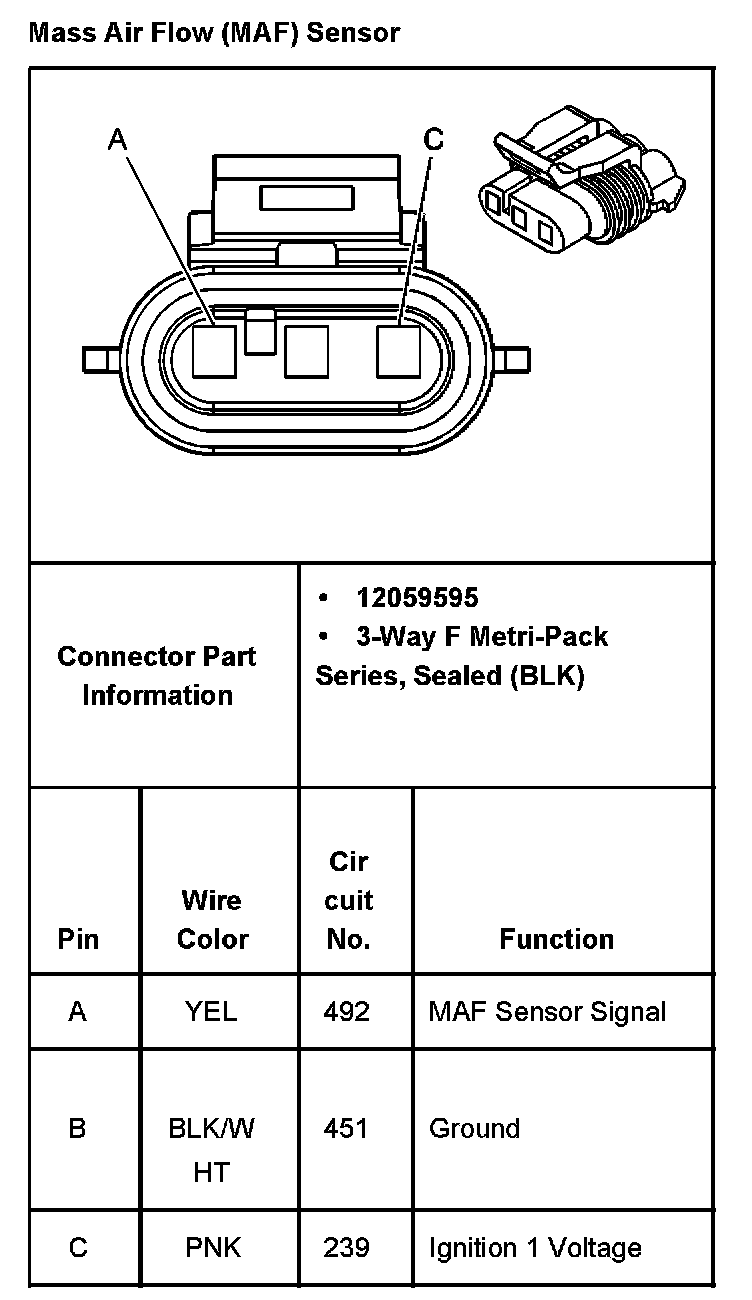

Mass Air Flow (MAF) Sensor:
