Seat Temperature Control Module
Seat Temperature Control Module

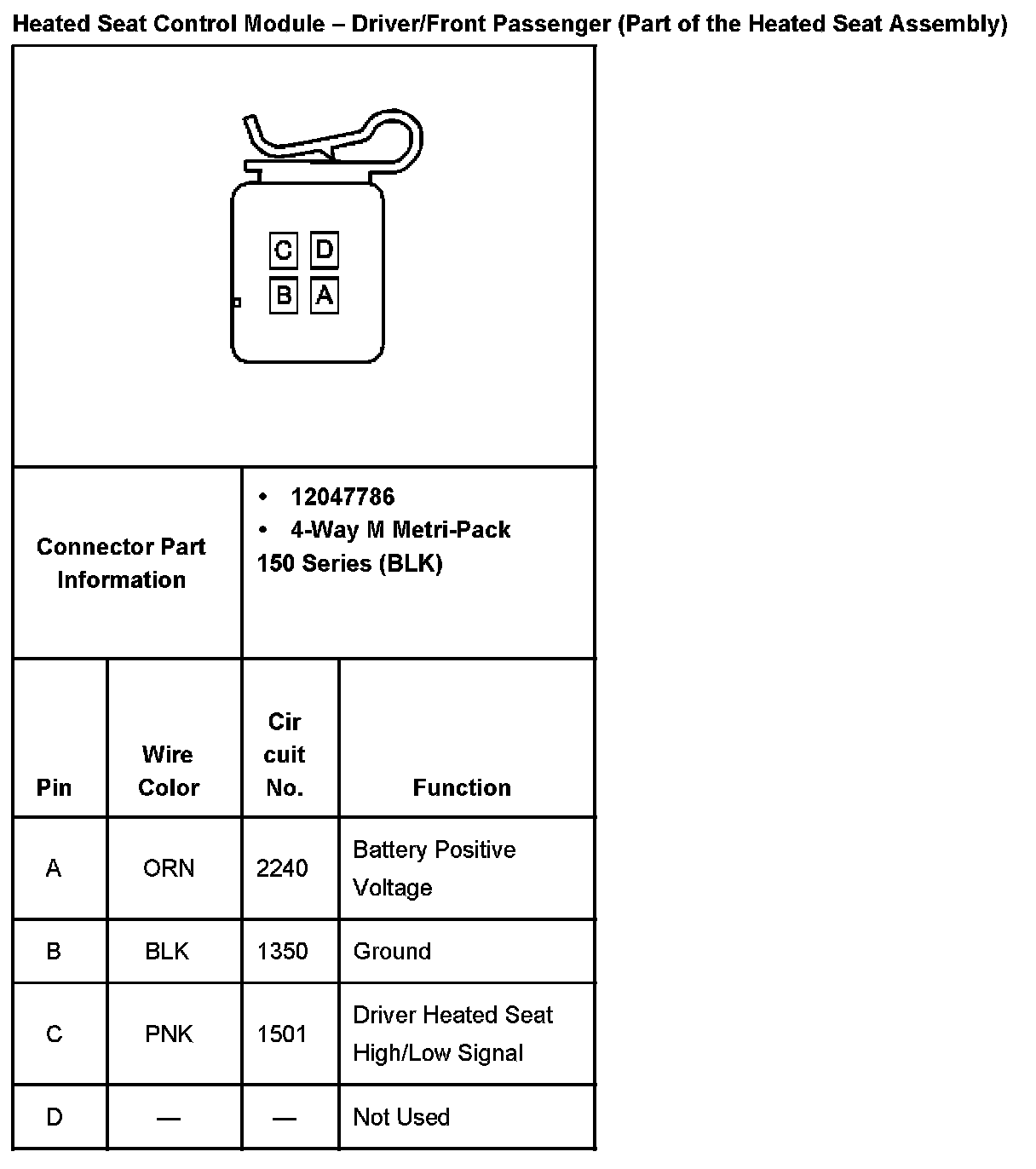

Heated Seat Control Module Driver/Front Passenger (Part of the Heated Seat Control Module) - Driver/Front Passenger (Part of the Heated Seat Assembly):
