Home >> GMC >> 2003 >> Jimmy (CANADA) V6-4.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Powertrain Control Module (PCM) Connector C2

Powertrain Control Module (PCM) Connector C2

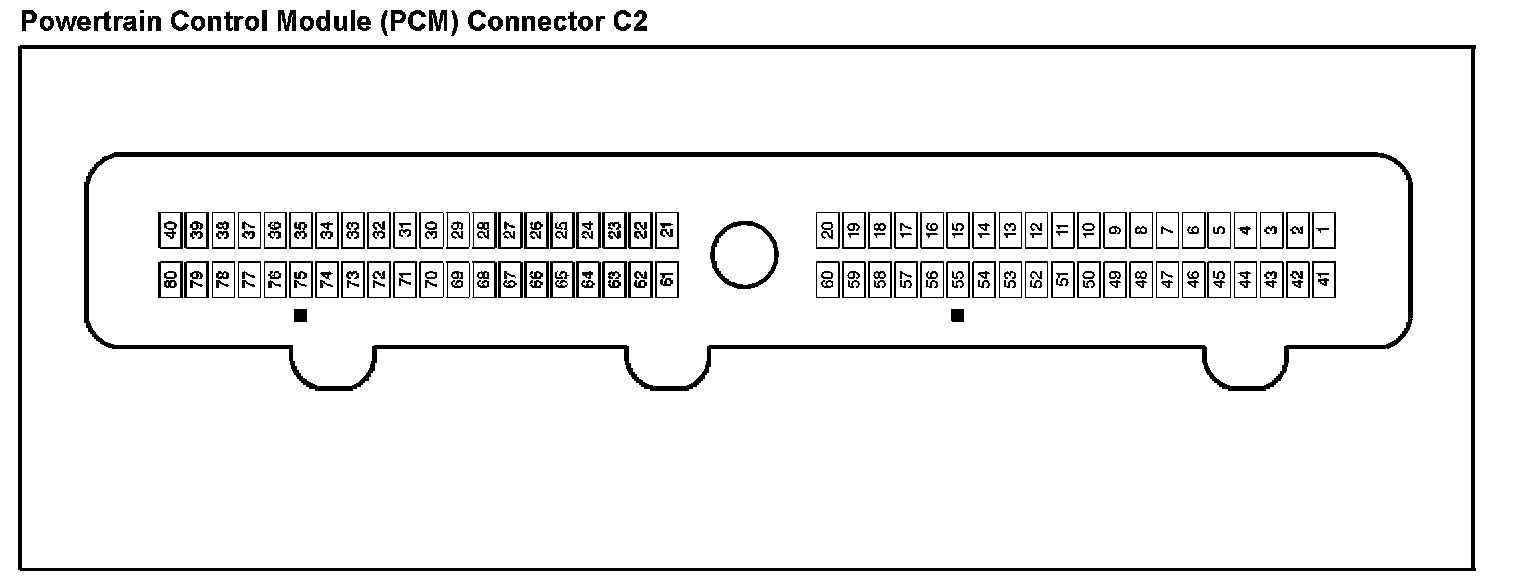

Powertrain Control Module (PCM) Connector C2 Part 1:

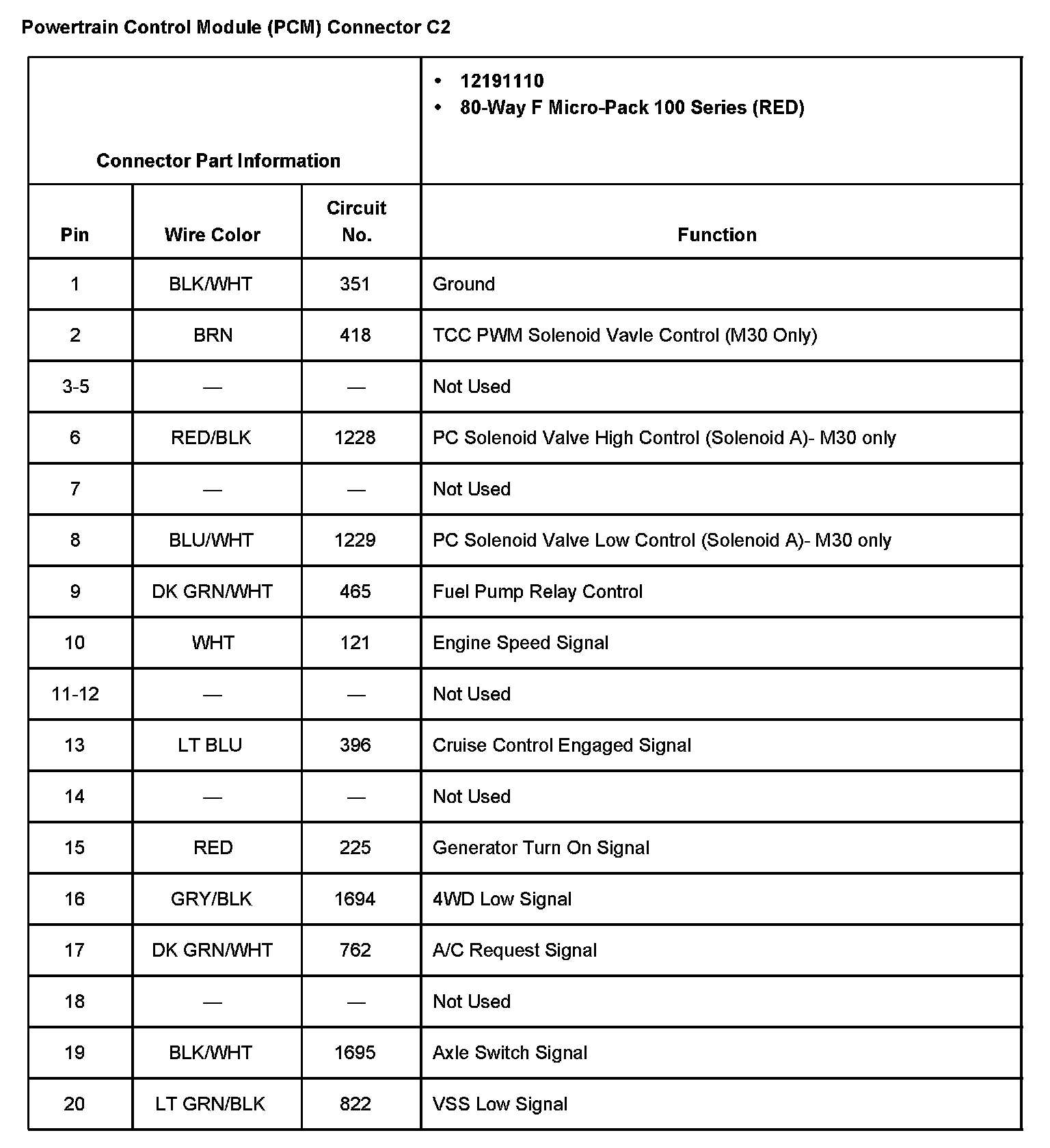

Powertrain Control Module (PCM) Connector C2 Part 2:

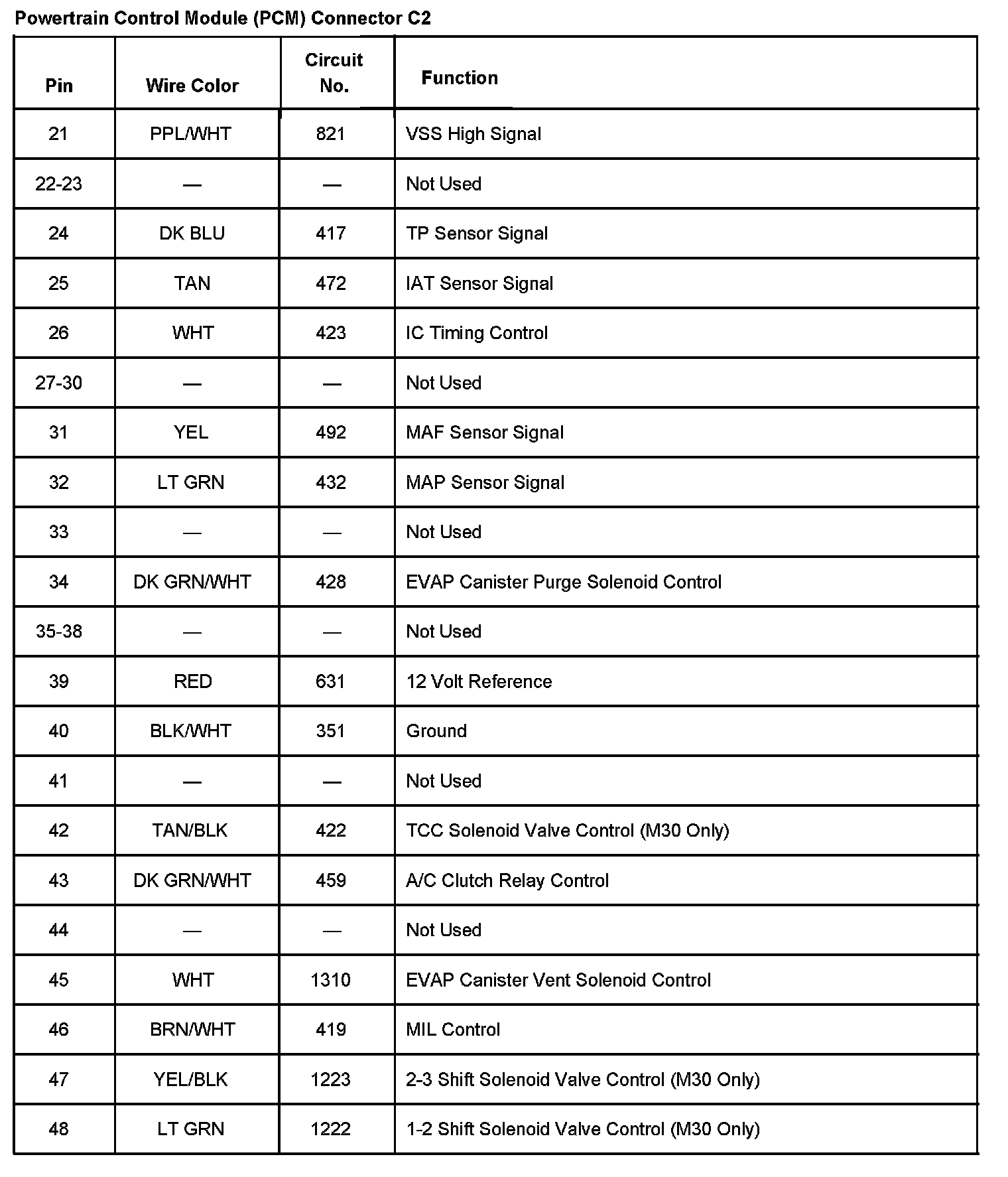

Powertrain Control Module (PCM) Connector C2 Part 3:

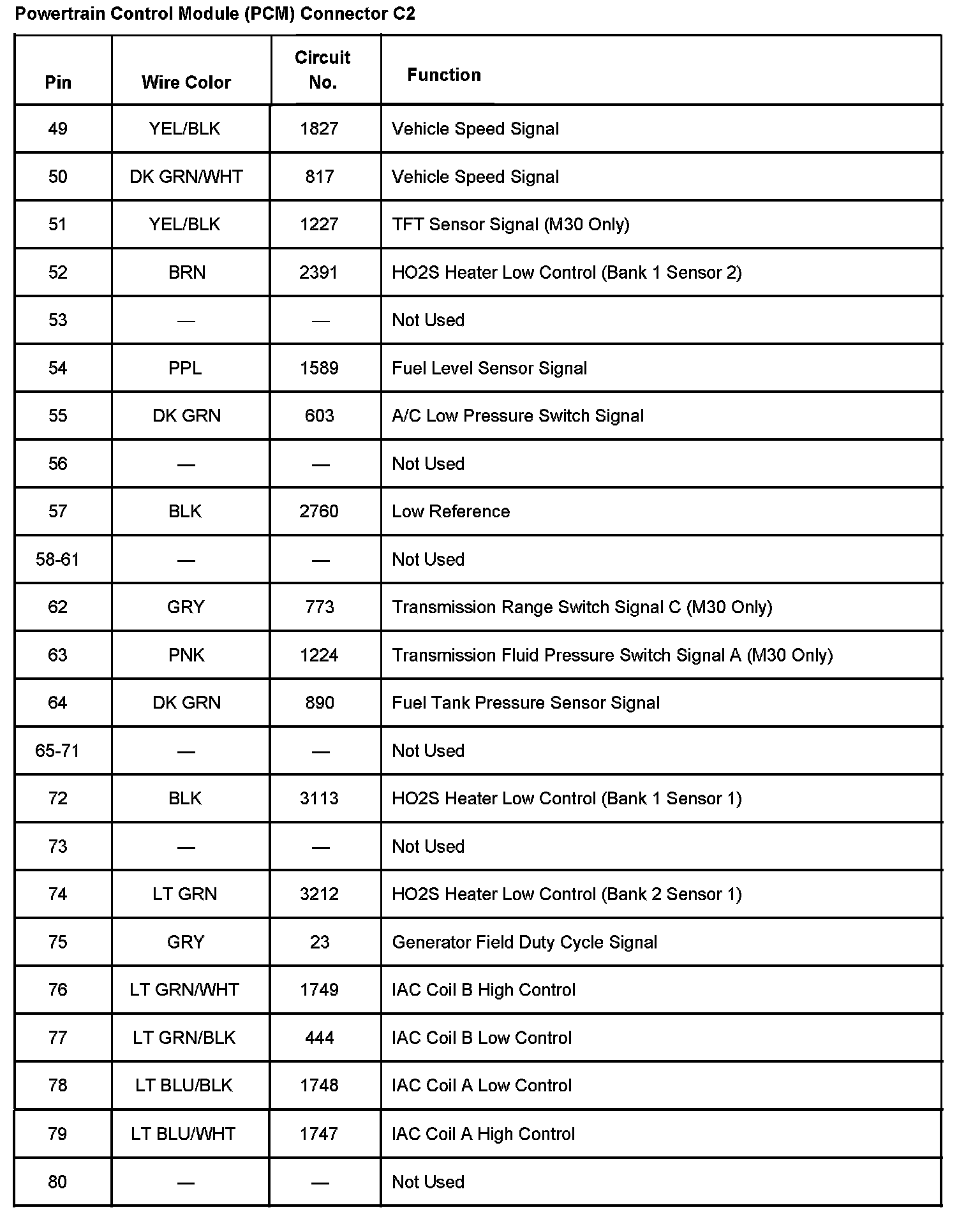

Powertrain Control Module (PCM) Connector C2 Part 4:
